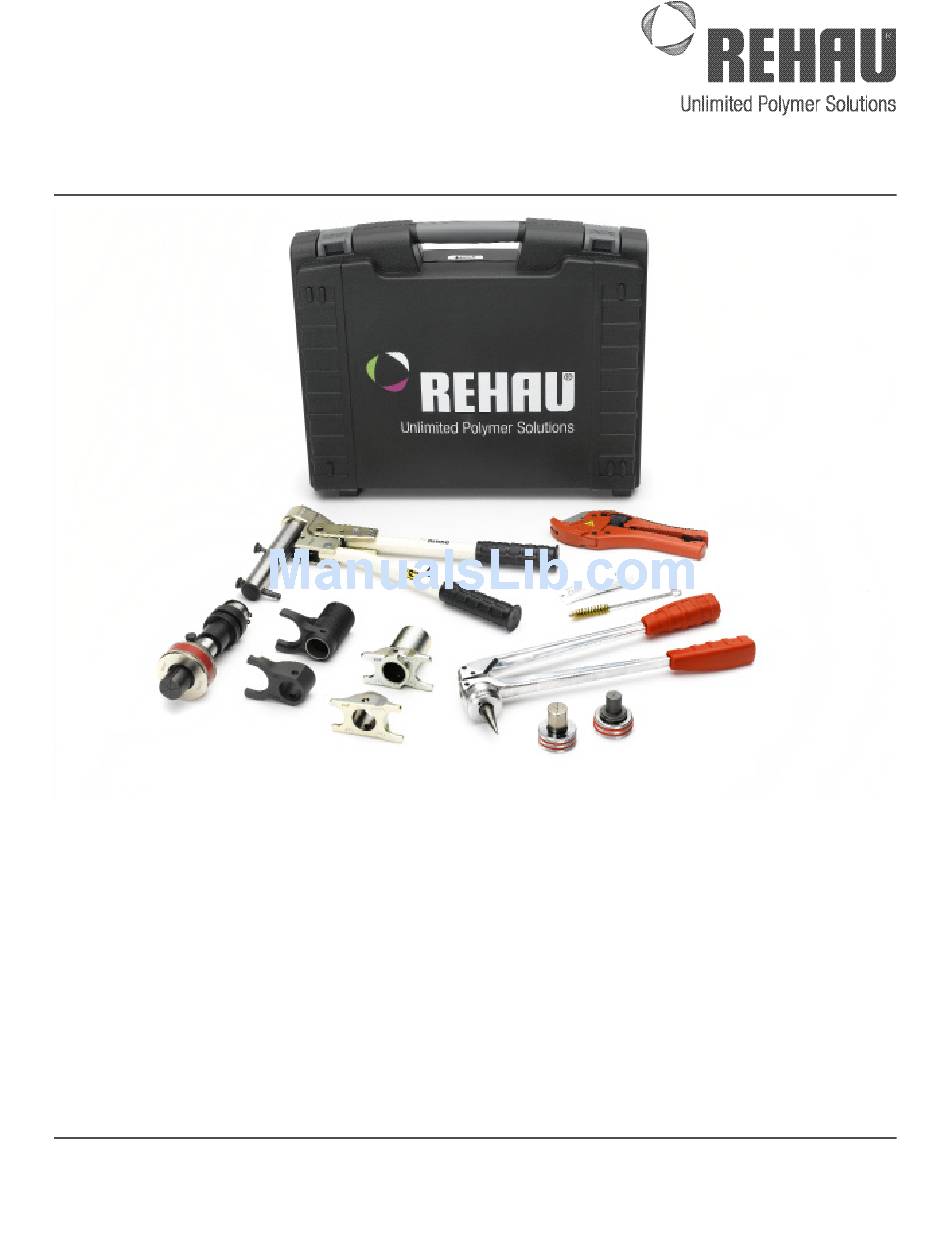

- Page 1 RAUTOOL M1 MANUAL TOOL KIT ™ PRODUCT INSTRUCTIONS www.rehau.com Construction Automotive Industry...
-
Page 2: Table Of Contents
RAUTOOL M1 TABLE OF CONTENTS Safety Warnings ........3 Items Supplied . -
Page 3: Safety Warnings
Do not use tool for other purposes. – Only operate the tool with original REHAU parts and accessories. – Maintenance and repair work should be done only in a REHAU authorized service center. We will not be responsible for any work performed by an unauthorized person. -
Page 4: Items Supplied
RAUTOOL M1 ITEMS SUPPLIED M1 25 to 40 mm – M1 basic tool (Art. 137304-001) – RO pipe expander (Art. 139592) – Ratchet pipe cutter (Art. 138062) – Expansion head RO 25 x 2.3 mm (Art. 139662-001) – Expansion head RO 32 x 2.9 mm (Art. 137193-001) –... -
Page 5: Replacement Parts And Accessories
RAUTOOL M1 REPLACEMENT PARTS AND ACCESSORIES Expander Heads Compression Jaws Art. No. 139622-001 Art. No. 137364-001 25 x 2.3 mm 25/32 mm Art No. 137193-001 Art. No. 201798-001 32 x 2.9 mm 40mm 40 mm Expander Bit M1 Basic Tool Art. -
Page 6: Tool Preparation
– Before each use of the jaw sets, check the expander and the tool for damage or visible wear. Damaged tools may no longer be used and should immediately be sent to your local REHAU representative. – When introducing the expander, always insert it completely into the clamping jaw and fix it with the set screw. -
Page 7: Using The Tool
RAUTOOL M1 USING THE TOOL 1. When fitting clamping jaws, 2. Insert the short pin into the always push the long clamping long clamping jaw and the long jaw on the tool cylinder first, pin into the short clamping jaw. -
Page 8: Assembly Procedure
RAUTOOL M1 ASSEMBLY PROCEDURE 1. Using pipe cutters, cut pipe to required length at right angles and without leaving burrs. Note: Keep your hand at a safe distance from the tool. Do not use saws or similar. 2. Slide compression sleeve onto pipe, ensuring that the inside taper points toward joint. - Page 9 6. Bring selector button into sliding position (upper position of button). 7. Activate lever to push compression sleeve up to fitting collar. Note: End the compression process immediately when the compression-sleeve is flush with the fitting collar. Avoid "over- pressing" the fitting components this could damage the fitting components or jam the tool.
-
Page 10: Important Notes
Replacements are available surface. from your local REHAU representative. Make sure fitting is correctly If using an expander bit, make seated in tool. Applying the tool... -
Page 11: Maintenance
Storage damage or visible wear. Damaged tools must no longer be used and Never store a wet tool! Dry the tool and grease it. Then store the tool should immediately be sent to your local REHAU representative for dry. repair. - Page 12 The information contained herein is believed to be reliable, but no representations, guarantees or warranties of any kind are made as to its accuracy, suitability for particular applications or the results to be obtained therefrom. Before using, the user will determine suitability of the information for user’s intended use and shall assume all risk and liability in connection therewith. © 2017 REHAU www.rehau.com 850.625 US en 01.2017...
