Heat Recovery ventilation

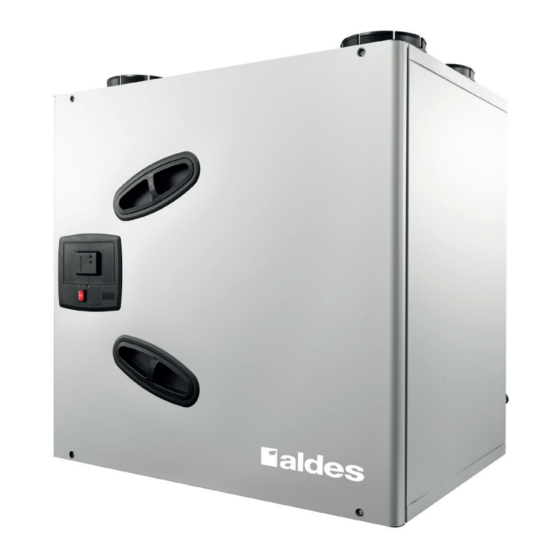

Dee Fly Cube 550
Field of application
Description
Advantages
Range
Technical details
Installation
Remote controls
Servicing

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dee Fly Cube 550 and is the answer not in the manual?

Questions and answers

Related Manuals for aldes Dee Fly Cube 550

Summary of Contents for aldes Dee Fly Cube 550

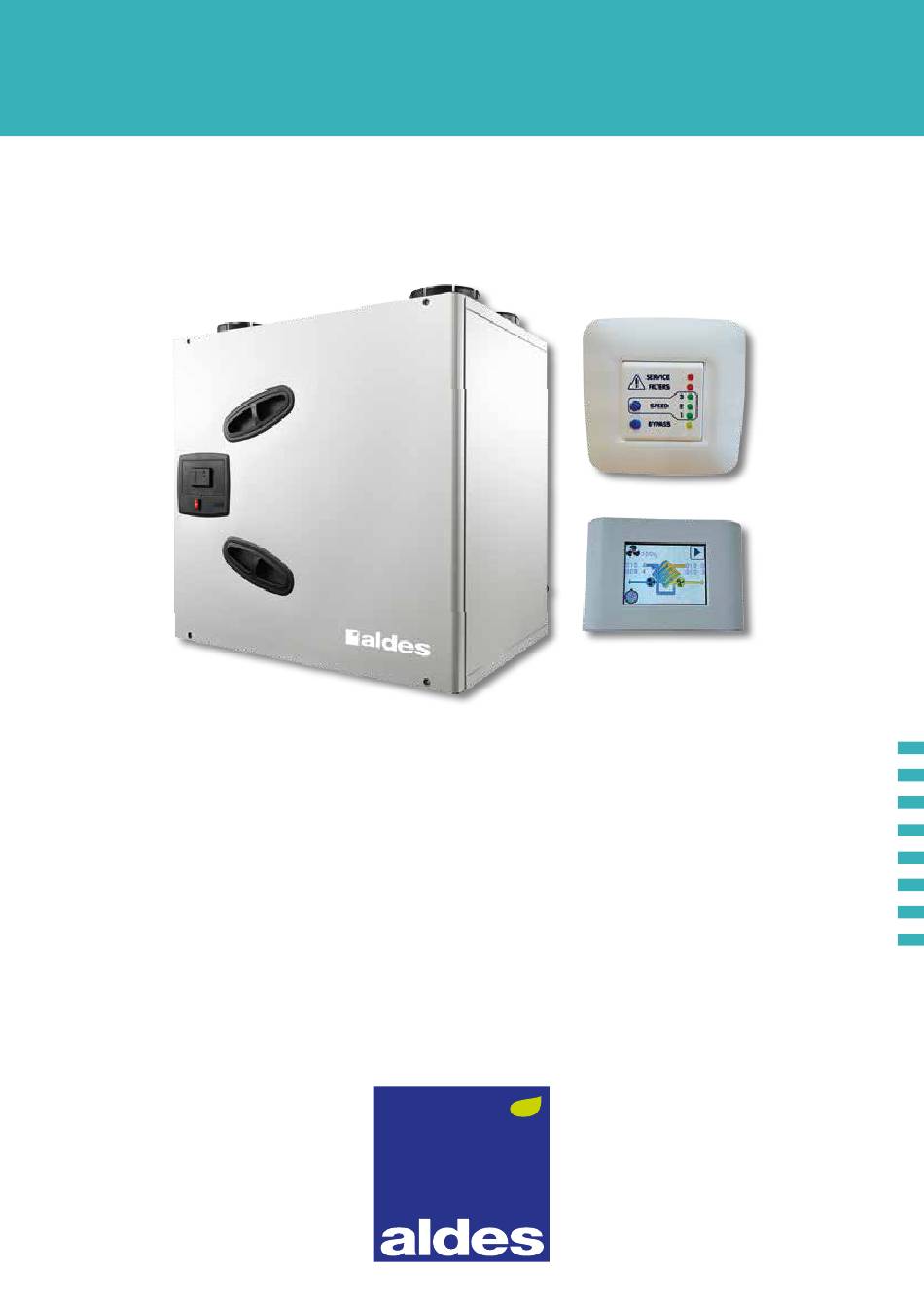

  • Page 1 Heat Recovery ventilation Dee Fly Cube 550 Field of application Description Advantages Range Technical details Installation Remote controls Servicing...

  • Page 2: Installation

    RANGE General and uninterrupted ventilation of dwellings. Dee Fly Cube 550 Dee Fly Cube 550+ Description Heat recovery system. Dee Fly Cube 550 - constant speed DESCRIPTION control Wall attachment bracket • Heat Recovery ventilation. 4 spigots • Operating at:...
  • Page 3 Heat Recovery ventilation Dee Fly Cube 550 DESCRIPTION ACCESSORIES ACCESSORIES Water trap • Standard connection to the Dee Fly Cube 550 and to the drains network for condensate removal. • Dimensions: See page of dimensions. Replacement filters • For annual servicing.

  • Page 4: Dimensions (Mm)

    Heat Recovery ventilation Technical details Dee Fly Cube 550 DIMENSIONS (mm) Dee Fly Cube 550 Pre-heating coil • Weight: 45 kg. Ø 162 103,9 103,9 103,9 103,9 331,8 331,8 Water trap Ø 150 Ø 150 Constant airflow kit 288,5 288,5...

  • Page 5: Electrical Specifications

    Heat Recovery ventilation Technical specifications Dee Fly Cube 550 ELECTRICAL SPECIFICATIONS AVERAGE POWER CONSUMPTION • Power supply: 230 V - 50 Hz single-phase. Airflow (m Pressure (Pa) Power consumption (W) • Maximum current: 2.5 A max. • Class : IP 54.
  • Page 6 • The Dee Fly Cube 550 can be fixed to the wall vertically. • Attachment bracket supplied with the Dee Fly Cube 550. • The Dee Fly Cube 550 must be installed in an insulated, frost-protected location. • Minimum width of maintenance hatch on front panel (500 mm).

  • Page 7: Constant Pressure

    Heat Recovery ventilation Dee Fly Cube 550 INSTALLATION The constant airflow or pressure kit features a ring to be positioned on air ducts; the pressurised air intakes must always be oriented downwards to prevent the introduction of dust or foreign bodies into the system, as they could cause it to malfunction.
  • Page 8 Heat Recovery ventilation Dee Fly Cube 550 SERVICING Filter access (air supply and exhaust) Filters replacement: Variable according to pollution of ambient air (dust, smoke). Recommended every 6 months. Before changing the filters, turn the switch to position 0. G4 filter (top)
  • Page 9 Heat Recovery ventilation Dee Fly Cube 550 SERVICING Access and cleaning the heat exchanger Precautions to take when handling the exchanger. Recommended maintenance period for heat exchanger: approx. 12 months of operation.
  • Page 10 Heat Recovery ventilation Dee Fly Cube 550 REMOTE CONTROL DEE FLY CUBE 550 • 3-speed controller (30% - 65% - 100%). • Fan malfunction alarm. • Filter clogging alarm. • By-pass. • Dimensions : 90 x 90 x 60 mm.
  • Page 11 Heat Recovery ventilation Dee Fly Cube 550 SUMMARY OF REMOTE CONTROL FEATURES REMOTE CONTROLS CUBE 550 CUBE 550+ DESCRIPTION OF CONTROLS AVAILABILITY Fan speed Choice of speed control: OFF – V1 – V2 – V3 Choice of operating range Automatic control of airflow by CO2 sensor...
  • Page 12 • Energy-efficient motor. ■ ALDES AÉRAULIQUE - Headquaters: Tel : +33 4 78 77 15 15 - Fax: +33 4 78 76 15 97 ■ ALDES INTERNATIONAL - Tel: +33 4 78 77 15 34 - Fax: +33 4 78 77 15 56...
