LOG-ON-CHANGE (ONLY LOG/CHART OUT OF LIMITS
READINGS)
This feature reduces the size of log and chart files by
ignoring readings that are within adjustable specified limits.
To specify the limits;

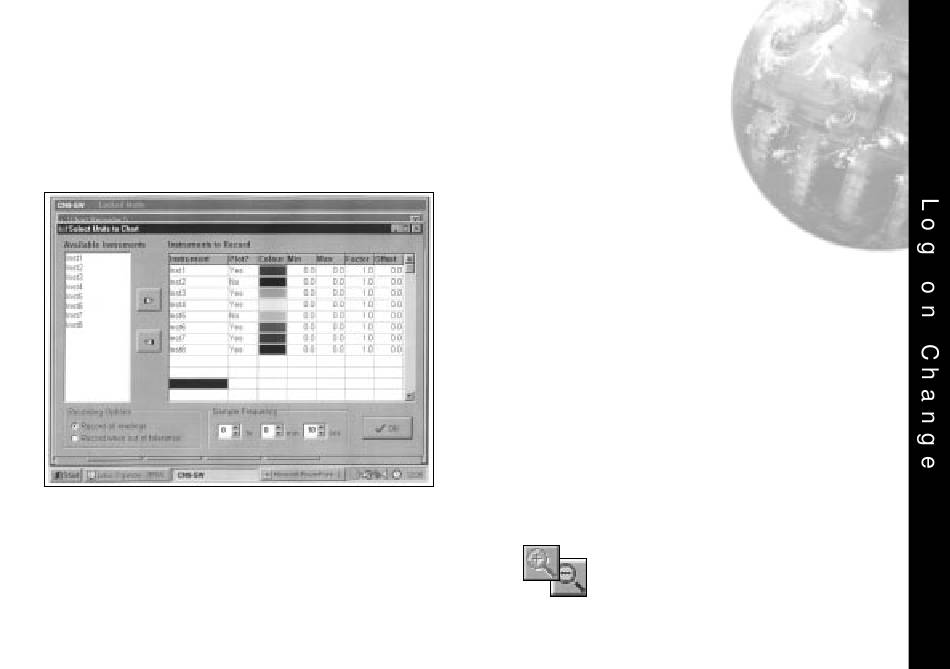

Double click in the inst.1 Min column and enter the
value below which readings are to be
logged. Repeat in the Max column, and
enter the value above which readings
are to be logged.
Check the radio button record when out of
tolerance, and Click the OK button.
Other Logging and Charting Options
Check
Factor and Offset adjustments
A factor adjustment can be made to enable readings of
differing orders of magnitude to be charted on the same
scale. For example, a X10 factor applied to ambient
temperature readings would enable them to be charted
alongside process temperatures of 200
o o
400 /1470 F. Factor adjustments can be greater or less than
one.
Offset adjustments can be applied to any trace to adjust its
position with respect to the scale. For example, the readings
from a particular instrument may be known to be 4
due to poor siting of the sensor. An adjustment of +4 in the
Offset column will remove this error.
Sizing and positioning your chart
Click
The chart will now only register out of
limits readings which will be separated
by grey vertical bands signifying periods
of in limit readings. It will still be
necessary to set the Sample Frequency
buttons.
the radio button record all readings to
return to normal logging/charting.
o o
/400 C -
to make the chart smaller or larger.
If required, it is possible to super-impose
a small chart screen on top of or beside
the CALCOMMS screen so that both are
visible.
o
low
25
