DIGIMON Instruction manual
for the 2-way digital manifold
DIGIMON

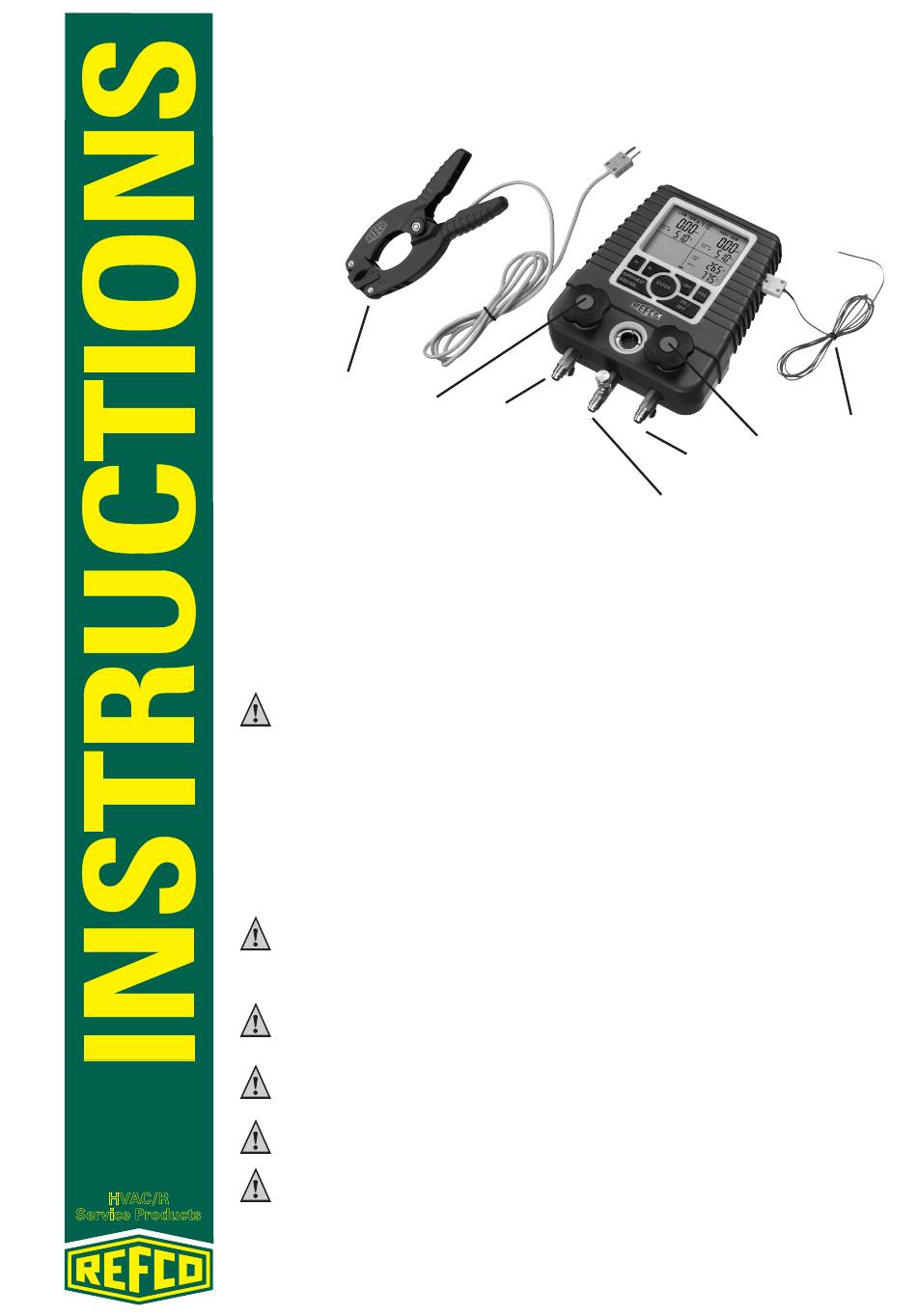

1) Low pressure anchor ¼" SAE
2) High pressure anchor ¼" SAE
3) Low pressure valve (blue)
4) High pressure valve (red)
5) Vacuum + refrigerants anchor ¼" SAE
6) External K-type thermocouple
7) Clamp thermocouple K- type, P/N 4681466 (optional)
Important
Purpose and use
The manifold has been designed specifically to measure pressure and tem-
perature in refrigeration equipment. For use only by trained technicians.
HVAC/R
Service Products
REFCO Manufacturing Ltd.
Industriestrasse 11
CH-6285 Hitzkirch (Switzerland)
7
3
Read this manual carefully and familiarise yourself with the specifi-
cations and operation of the REFCO DIGIMON digital manifold prior
to use. These instructions provide important information regarding to
the operation and service of the manifold.
The manifold must not be used for other than refrigerant applications.
The manifold is not suitable for other liquids or gases except those
indicated on the display.
The manifold must not be used with pressure higher than 60bar /
870psi / 6000kPa / 6MPa.
The manifold cannot be used as a pressure regulator, especially not in
use with nitrogen N
2
The manifold cannot be used with ammonia (NH
Do not expose the manifold to rain or wet conditions.
1
.
Telefon +41 41 919 72 82
Telefax +41 41 919 72 83
info@refco.ch www.refco.ch
4
2
5
/ R717).
3
6
2
