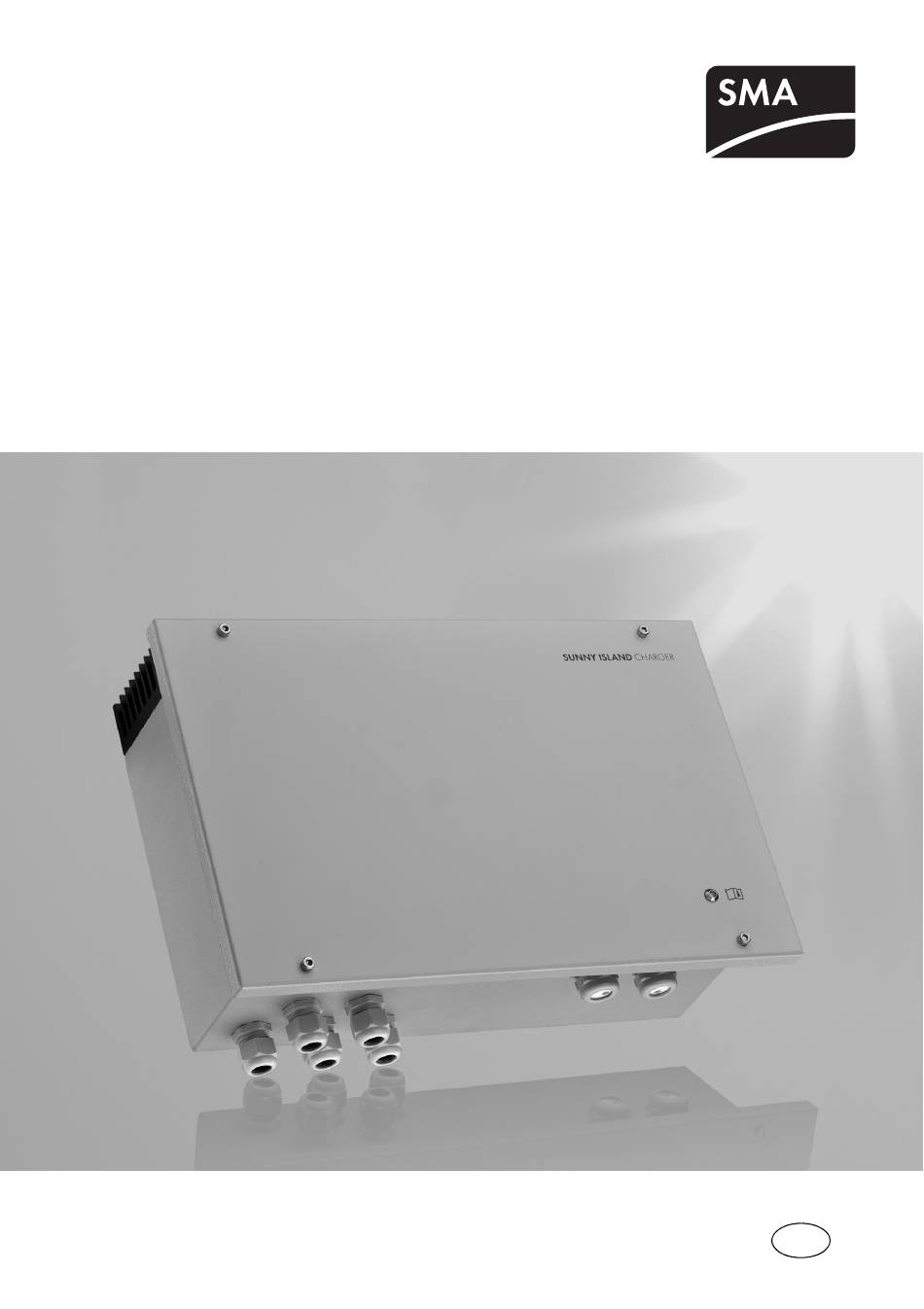

  • Page 1 Charge controller SUNNY ISLAND CHARGER Technical Description SIC40-TEN081110 | 98-2005210 | Version 1.0...

  • Page 3: Table Of Contents

    SMA Solar Technology AG Table of Contents Table of Contents Notes on this Manual......7 Validity .
  • Page 4 Battery Management and Charge Control ... 35 SMA Operation ........35 Stand-alone Operation .
  • Page 5 SMA Solar Technology AG Table of Contents Explanation of the LEDs (With Codes) ....41 11.1 Multicolored LED ........41 11.2...
  • Page 6 SMA Solar Technology AG SIC40-TEN081110 Technical Description...

  • Page 7: Notes On This Manual

    SMA Solar Technology AG Notes on this Manual 1 Notes on this Manual The manual describes how to install, commission and service the Sunny Island Charger. 1.1 Validity This manual applies to the following Sunny Island Charger type: • SIC40-MPT The device type of your charge controller is specified on the type label as shown in section 3.3...

  • Page 8: Symbols Used

    SMA Solar Technology AG Notes on this Manual 1.4 Symbols Used The following types of warnings and general information appear in this document as described below. DANGER! DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 9: Safety Precautions

    The charge controller can be operated in two different operating modes: SMA operation Stand-alone operation The "SMA" operating mode must be selected if The "Stand-alone" operating mode must be the charge controller is operated in a system selected if the charge controller is operated in a...

  • Page 10: General Safety Instructions

    Do not touch the housing of the charge controller during operation. PV generator ground connection Observe all local requirements for grounding the PV generator. SMA recommends connecting the generator frame and other electricity conducting surfaces such that there is continuous conduction and to connect them to the ground in order to reach maximum protection for property and persons.

  • Page 11: Unpacking

    SMA Solar Technology AG Unpacking 3 Unpacking 3.1 Packing List Object Number Description Charge controller EC Declaration of Conformity Technical description Thermal fuse (30 A) E (optional) 1 SIC-PB communication interface and RJ45 cable (5 m) F (optional) Battery temperature sensor 3.2 Checking for Transport Damage...

  • Page 12: Identification Of The Charge Controller

    SMA Solar Technology AG Unpacking 3.3 Identification of the Charge Controller You can identify the charge controller by the type label. The type label is on the right side of the housing. Series number Device type SIC40-TEN081110 Technical Description...

  • Page 13: Mounting

    SMA Solar Technology AG Mounting 4 Mounting CAUTION! Risk of injury due to the heavy weight of the charge controller. • Take into account that the charge controller weighs 10 kg. 4.1 Selection of Mounting Location DANGER! Danger to life due to fire or explosion.

  • Page 14: Ambient Conditions

    SMA Solar Technology AG Mounting 4.1.2 Ambient Conditions • The mounting location and mounting method must be suitable for the weight and dimensions. • Mounting on a solid surface. • The mounting location must be accessible at all times. •...

  • Page 15: Position

    SMA Solar Technology AG Mounting 4.1.4 Position • Vertical installation or tilted backwards by max. 45 °. • Install at eye level to allow operating modes to be read at all times. • Never install the device with a forward tilt.
  • Page 16 SMA Solar Technology AG Mounting Drill the holes (diameter: at least 8 mm) at the marked positions and use wall anchors (at least M8). Screw the charge controller with its three mounting plates on the wall. Use fastening material suitable for the surface only.

  • Page 17: Electrical Connection

    SMA Solar Technology AG Electrical Connection 5 Electrical Connection WARNING! Risk of injury due to electric shock. If all cables with different voltages are laid parallel to one another, short circuits can result if the cable insulation becomes damaged. •...

  • Page 18: Overview Of The Connection Area

    SMA Solar Technology AG Electrical Connection 5.1 Overview of the Connection Area Object Description "PV+" connection terminal for "PV+" cable of the PV generator "PV–" connection terminal for "PV–" cable of the PV generator "BAT–" connection terminal for "BAT–" cable of the battery "BAT+"...

  • Page 19: Grounding

    SMA Solar Technology AG Electrical Connection Object Description Slot for communication interface Socket for communication interface connection M20 metric-thread cable screw connections for the battery, PV generator and PE cables M25 metric-thread cable screw connection for the signalling contact and the battery...

  • Page 20: Grounding The Battery And The Pv System

    Never ground the positive pole of the battery or the PV system. Cross-section of the Grounding Conductor SMA Technologie AG cannot calculate generally valid values for the required cross-section of the grounding conductor for the external grounding of the battery. The conductor dimensions depend on the type and size of the battery connected, the external fuse (DC side) and the material used for the grounding conductor.

  • Page 21: Pv Generator (Dc) Connection

    SMA Solar Technology AG Electrical Connection 5.3 PV Generator (DC) Connection NOTICE! Improperly connecting the charge controller to the PV generator may irreparably damage it. • Never connect several charge controllers in parallel on the side of the PV generator.
  • Page 22 SMA Solar Technology AG Electrical Connection DANGER! Danger to life due to high voltages in the charge controller. • Disconnect the PV generator using a disconnection unit and secure it to prevent it from being reactivated. Unscrew the metric-thread cable screw connection's lock nut (C) and slide it over the "PV+"...

  • Page 23: Battery Connection (Dc)

    SMA Solar Technology AG Electrical Connection 5.4 Battery Connection (DC) Connection Requirements Battery size The battery size depends on the connected PV power. Observe the following table. Nominal battery voltage Battery size per kWp PV 48 V min. 100 Ah/kWp PV 24 V min.
  • Page 24 SMA Solar Technology AG Electrical Connection Cable Protection In addition to the thermal fuses in the charge controller, install a separate fuse as close to the battery as possible. Install a suitable fuse according to the maximum specified DC currents. You can, for example, install a 63 A line circuit breaker.

  • Page 25: Communication

    If the LED does not illuminate, the poles of the DC cables are reversed and the thermal fuses must be replaced. If this is not the case, the charge controller is defective and must be replaced. In this case, contact the SMA Service Line. See section 14 "Contact" (Page 47).

  • Page 26: Installing The Communication Interface

    SMA Solar Technology AG Electrical Connection 5.5.1 Installing the Communication Interface Insert the communication interface in area A. Route the ribbon cable for the connection under the communication interface to the socket (B). Secure the ribbon cable on the corresponding position of the shield plate.

  • Page 27: Additional Connections

    If a short circuit occurs in the charge controller, the battery is no longer protected against overcharging. • SMA Solar Technology AG recommends using the signalling contact to ensure that in case of a failure, the battery is disconnected from the charge controller by a relay or contactor.
  • Page 28 SMA Solar Technology AG Electrical Connection Cable Requirements Signalling Contact Cable To maintain the IP65 protection rating, use a cable with an outer diameter of 5 mm - 7 mm to connect the signalling contact. Connection Procedure Unscrew the M25 metric-thread cable screw connection's lock nut (A) and slide it over the signalling contact cables.

  • Page 29: Battery Temperature Sensor

    Sunny Island 3324/4248, you can connect an external battery temperature sensor (BAT-TEMP-SENSOR) to the charge controller. SMA Operation No external battery temperature sensor is required when operating in "SMA operation" mode. NOTICE! Damage to battery due to over or insufficient charging.
  • Page 30 SMA Solar Technology AG Electrical Connection Connection Procedure Remove the resistor. Unscrew the M25 metric-thread cable screw connection's lock nut (A) and slide it over the battery temperature sensor cable. Remove the seal insert along with the cable gland from the cable screw connection.

  • Page 31: First) Commissioning

    SMA Solar Technology AG (First) Commissioning 6 (First) Commissioning 6.1 Configuration of the Charge Controller Configure the charge controller before commissioning. You can carry out the basic configuration using the operating switch (DIL switch). The operating mode, battery system, battery type, device address of the charge controller and a fault diagnosis can be configured by changing the switch position of the DIL switch.

  • Page 32: Battery System

    In the "Stand-alone operation" operating mode, the device address must be set to 0. SMA Operation In the "SMA operation" operating mode, up to 4 charge controllers can be connected to the Sunny Island. The device addresses intended for these four devices are one to four.

  • Page 33: Battery Type

    SMA Solar Technology AG (First) Commissioning 6.1.4 Battery Type In stand-alone operation, the battery type and the charging voltage must be set. The battery type and charging voltage are set using the B1, B2, B3 and B4 DIL switches. When performing these settings, observe all the specifications of the battery manufacturer.

  • Page 34: Opening And Closing

    SMA Solar Technology AG Opening and Closing 7 Opening and Closing 7.1 Opening the Charge Controller DANGER! Danger to life due to high voltages in the charge controller. • Switch off the line circuit breaker and secure it to prevent it from being reactivated.

  • Page 35: Battery Management And Charge Control

    This ensures that the battery is always optimally charged and that the Sunny Island calculates the correct charge state. Further details on the battery management are located in the Sunny Island documentation. If the communication does not function in SMA operation, the battery is only securely charged with 13.5/27/54 V. 8.2 Stand-alone Operation...

  • Page 36: Maintenance And Cleaning

    SMA Solar Technology AG Maintenance and Cleaning 9 Maintenance and Cleaning 9.1 Replacing the Thermal Fuses NOTICE! Using incorrect thermal fuses may irreparably damage the charge controller. • Only use the thermal fuses included in the packing list. Open the charge controller as described in section 7.1 "Opening the Charge Controller"...

  • Page 37: Parameter Lists On The Sunny Island

    SMA Solar Technology AG Parameter Lists on the Sunny Island 10 Parameter Lists on the Sunny Island If the charge controller is connected to the Sunny Island through the communication interface and thus integrated into the stand-alone grid system, the following values are shown on the Sunny Island display: 10.1 Display Values...
  • Page 38 SMA Solar Technology AG Parameter Lists on the Sunny Island Menu no. Parameter Parameter Range/ Description name Unit 143# SIC40 2 Sic2PvPwr PV power of the second charge controller Sic2PvVtg PV voltage of the second charge controller Sic2BatVtg Battery voltage of the second charge...

  • Page 39: Events

    SMA Solar Technology AG Parameter Lists on the Sunny Island 10.2 Events Events describe state changes or transient states. The meaning of events reported by the Sunny Island are explained in the following table: Display no. Display text Description E851...
  • Page 40 SMA Solar Technology AG Parameter Lists on the Sunny Island Display no. Display text Description W867 Sic2ComLoss Communications loss on the second charge controller for more than 24 h W871 Sic3BatShort Pole of battery connection is reversed or short circuit on the third...

  • Page 41: Explanation Of The Leds (With Codes)

    SMA Solar Technology AG Explanation of the LEDs (With Codes) 11 Explanation of the LEDs (With Codes) 11.1 Multicolored LED Meaning Green in operation (PV voltage > battery voltage) failure / error Orange low PV voltage (PV voltage < battery voltage) 11.2 Internal LEDs...

  • Page 42: Decommissioning

    Dispose of the charge controller at the end of its service life in accordance with the disposal regulations for electronic waste which apply at the installation site at that time. Alternatively, send it back to SMA with shipping paid by sender, and labeled "ZUR ENTSORGUNG" ("for disposal"). SIC40-TEN081110...

  • Page 43: Technical Data

    SMA Solar Technology AG Technical Data 13 Technical Data SIC40-MPT Input (PV generator) Max. PV power (12 V / 24 V / 48 V) 630 W /1250 W / 2100 W Max. DC voltage 140 V Optimum MPPT voltage range...
  • Page 44 SMA Solar Technology AG Technical Data SIC40-MPT Output (battery) Nominal DC input power up to 40 °C 600 W /1200 W / 2000 W (12 V / 24 V / 48 V) Output limitation 1500 W / 1000 W (50 °C / 60 °C ambient temperature)
  • Page 45 Setting the parameters Plug and Play in combination with Sunny Island (CAN Piggy-Back required) DIL switch by stand- alone applications and in SMA operation Parallel operation up to four devices through CAN bus Battery temperature compensation – 4 mV / °C...
  • Page 46 SMA Solar Technology AG Technical Data SIC40-MPT Security Device overtemperature derating / disconnection Device undertemperature disconnection at –30 °C Overvoltage (PV) disconnection >140 V Undervoltage (PV) disconnection at U < U reconnection U +5 V Overvoltage (battery) disconnection U > 65 V Undervoltage (battery) disconnection <...

  • Page 47: Contact

    SMA Solar Technology AG Contact 14 Contact If you have technical problems concerning our products, contact the SMA Technical Service Line. We require the following information in order to provide you with the necessary assistance: • series number of the charge controller •...
