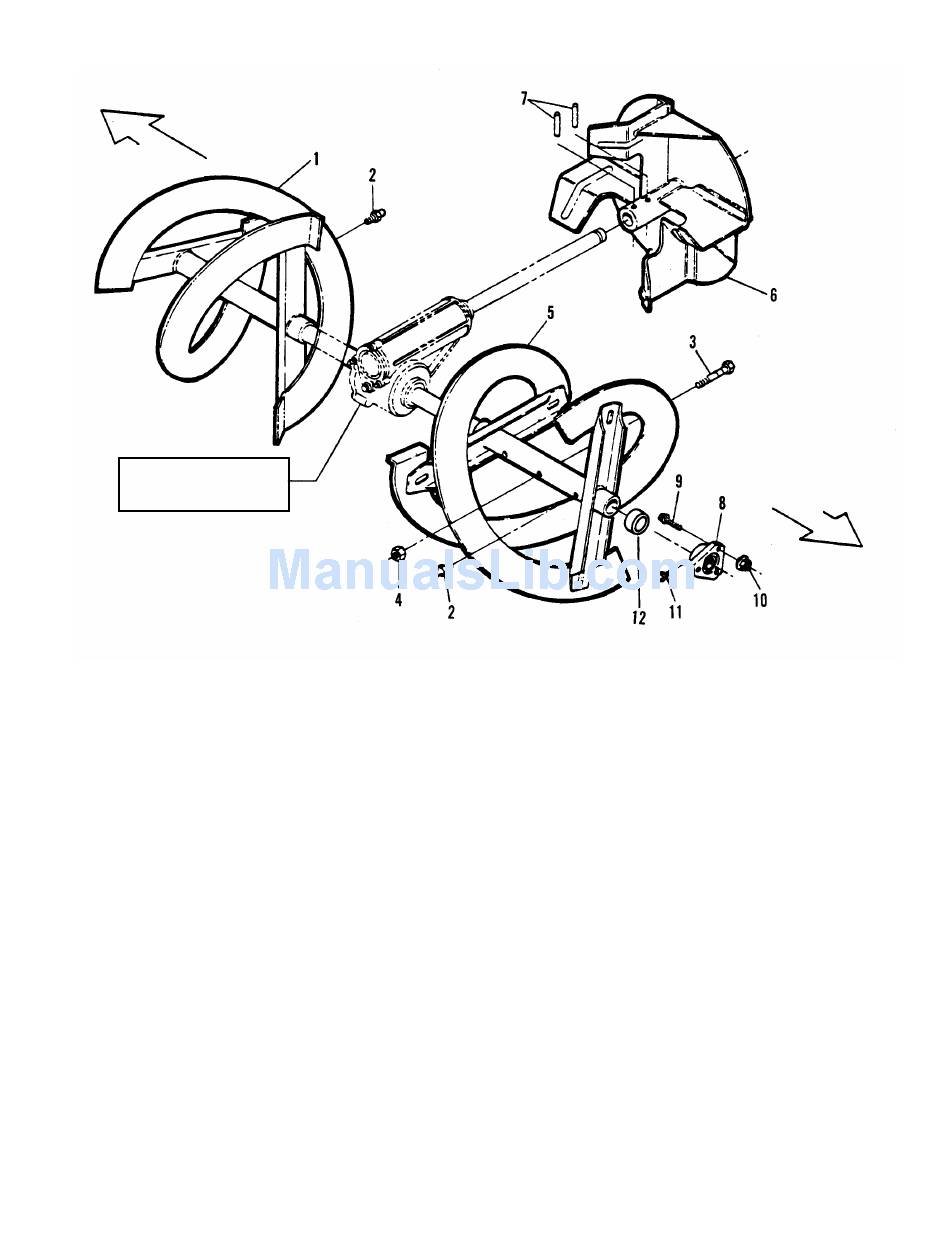

Augers, Impeller - Snapper 10305E Parts Manual

RIGHT SIDE
GEARBOX, SHAFTS
(See Pages 8 – 9)
ITEM
LARGE FRAME SNOWTHROWER
PART NO.
1 4-9928
- 4-9935
- 4-9922
2 1-3864
3 9-1550
4 9-1298
5 4-9927
- 4-9936
- 4-9921
6 4-9677
7 1-3862
8 5-1350
9 9-0699
10 9-1065
11 1-0817
12 2-8221
DESCRIPTION
AUGER, Right Side (8245 Models)
AUGER, Right Side (8265, 9265 & E9265 Models)
AUGER, Right Side (10305E, E10305E, N10305E, 11305 &
E11305 Models)
FITTING, Grease (2)
BOLT, 5/16-18 x 1-7/8" Shear (2)
NUT, 5/16-18 Hex Nyloc (2)
AUGER, Left Side (8245 Models)
AUGER, Left Side (8265, 9265 & E9265 Models)
AUGER, Left Side (10305E, E10305E, N10305E, 11305
E11305 Models)
FAN, Impeller
PIN, 1/4 x 1-1/2" Roll (2)
ASSEMBLY, Bearing (Includes Item 11)
BOLT, 1/4-20 x 3/4" Hex Flange Lock, Grade 5 (6)
NUT, 1/4-20 Hex Flange Lock (6)
FITTING, Grease (2)
SPACER (Used on Model 8245 Models Only) (2)
3

AUGERS, IMPELLER

LEFT SIDE
MANUAL No. 06037
