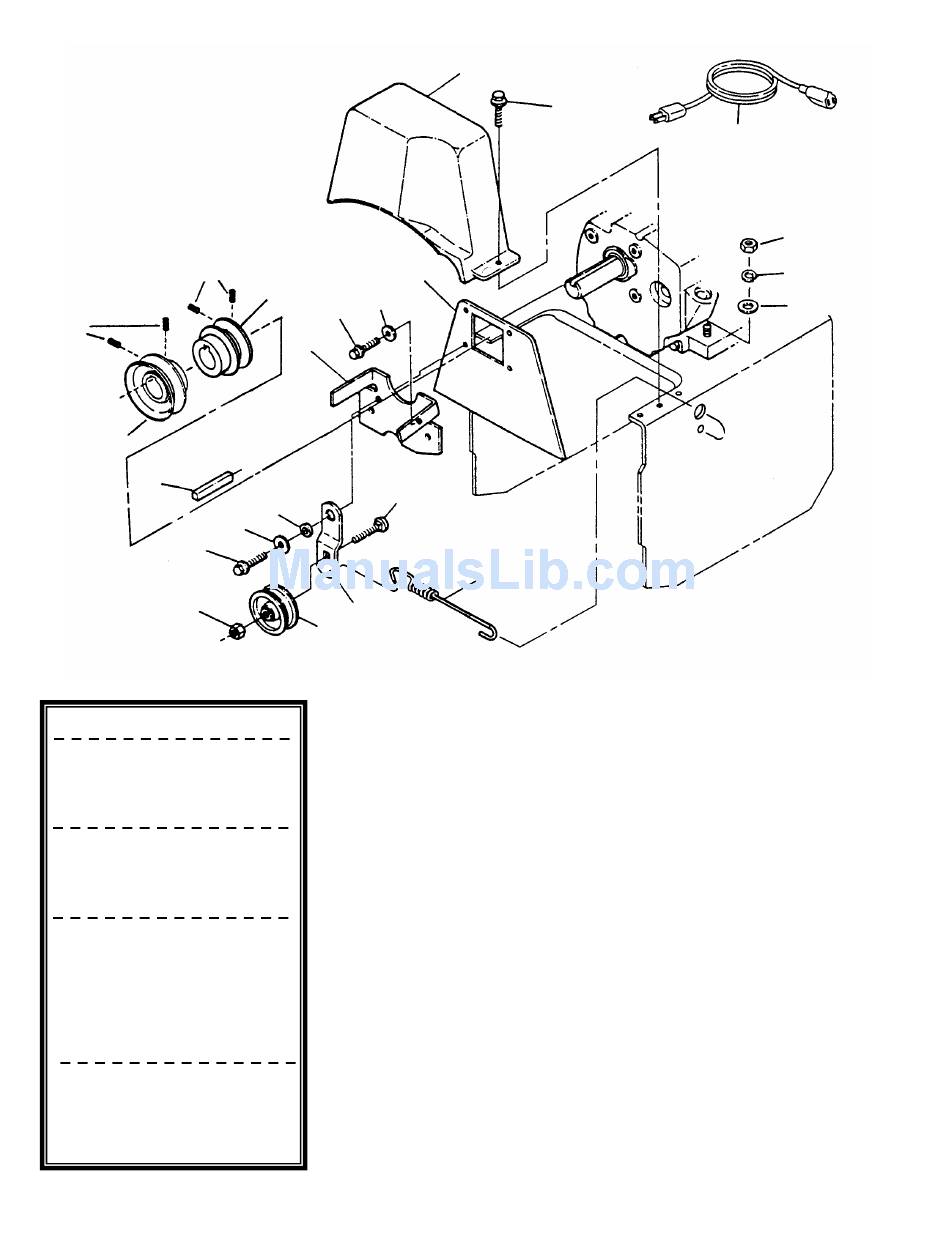

ENGINES, PULLEY, IDLER

10
10
17
5
15
16
ENGINE SPECS used on:
8 HP Tecumseh
Model HMSK80
Type 155527V....... 8245, 8265 &
E8265
9 HP Tecumseh
Model HMSK90
Type 156519D........9265 &
E9265
10 HP Tecumseh
Model HMSK100
Type 159236W.......10305E &
E10305E
Type 159302W.......N10305E
Type 159426W 10305 &
E10305
11 HP Tecumseh
Model OHSK110
Type 221721B........ 11305 &
E11305
MANUAL No. 06037
18
19 12
8
11
13
14
2
6
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
--
21
22
23
3
9
1
7
P/N DESCRIPTION
3-8545 GUARD, Engine
3-2128 ARM, Idler
1-7734 COVER, Belt
9-0196 NUT, 5/16-18 Hex, Grade B or 5 (4)
1-0210 KEY, 1/4 x 2" Square
1-3850 IDLER
2-8212 SPRING, Idler
3-2150 FINGER, Belt
9-1122 SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap (2)
9-0954 SCREW, 5/16-18 x 5/16" Socket Head Set (4)
9-0791 BOLT, 3/8-16 x 1-1/2" Square Neck Carriage, Grade 2
9-1076 WASHER, 5/16 Flat (5)
1-3849 SPACER
1-6314 WASHER, 3/8 Flat
9-1273 SCREW, 5/16-24 x 7/8" Hex Head Cap, Grade 5
9-0499 NUT, 3/8-16 Hex Top Lock
1-5376 PULLEY, Blower
1-5377 PULLEY, Traction
9-1021 SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5
1-5368 CORD, 10' Extension for 110V (10305 & 10305E Models
Only)(Tecumseh Part Number 1A174-17)
7-2611 CORD, 8' Extension for 230V (E9265 & E10305 Models)
9-1076 WASHER, 5/16 Flat (4)
9-0187 WASHER, 5/16 Split Lock (4)
2-8747 MUFFLER GUARD, Tecumseh 8 & 10 HP (not shown)
(Tecumseh Part Number 127-20)
20
20
4
22
21
LARGE FRAME SNOW THROWER
