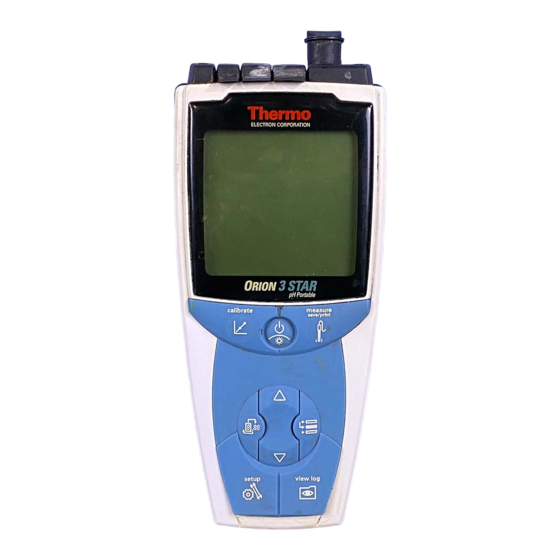

Thermo Electron Orion Star Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Orion Star
Series Meter
User's Guide
Analyze
Detect
Measure
Control
•
•
•
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion Star Series and is the answer not in the manual?

Questions and answers

Related Manuals for Thermo Electron Orion Star Series

Summary of Contents for Thermo Electron Orion Star Series

  • Page 1 Orion Star Series Meter User’s Guide Analyze Detect Measure Control • • • ™...
  • Page 2 ROSS and the COIL trade dress are trademarks of Thermo Electron Corporation. AQUAfast, Cahn, EZ Flash, Ionalyzer, ionplus, KNIpHE, No Cal, ORION, perpHect, PerpHecT, PerpHecTion, pHISA, pHuture, Pure Water, Sage, Sensing the Future, SensorLink, ROSS Ultra, Sure-Flow, TEA Analyzer, Titrator PLUS, TURBO2 and Wine Master are registered trademarks of Thermo.

  • Page 3: Table Of Contents

    Orion Star Series Quick Start Guide ........
  • Page 4 Declaration of Conformity..........XII-1 Orion Star Series Meter...

  • Page 5: General Information

    Our website also has an updated list of application notes developed specifically for the Star series meter line. Orion Star Series Quick Start Guide Star series Quick Start guide is designed to get user’s up and running in a few minutes with basic calibration and measurement information.
  • Page 6 Any use outside of these instructions could invalidate your warranty cause permanent damage to the meter. The Orion Star Series Meters offer basic RS232 interface connections to a printer or computer. Other features include all required features for GLP documentation to create printouts of data and reports fully compliant with “Good Laboratory Practice.
  • Page 7 Keypad Layout Power Back Light Calibrate Measure Save/Print Stirrer On/Off Line Select Digits Setup View Log Keypad Functions • Turns meter on, if shut off. • Changes measurement mode of the selected line. • Toggles backlight on & off, if meter is on.
  • Page 8 Rear View of Meter - Electrode Connections Cond RS232 Power Reference pH or ISE 8 pin Stirrer jack Ground stirrer or DO 9 pin Auto stir probe Instrument Setup Mode • pH (PH) • ISE (ISE) • Cond (COnd) • DO (dO) •...
  • Page 9 Meter Display Sensor Error Temperature Auto Read Calibration pH/ISE/ORP units Conductivity units DO units Method Select and Edit If methods have been turned on in gLP then this screen will appear when setup is pressed. To edit the selected method. &...
  • Page 10 Password Entry This screen will appear if password has been setup in gLP, enter password to enter and edit method. & Changes the value of the flashing digit. Changes the digit to be scrolled. Changes display lines. Returns to measurement mode. pH Setup Menu Screen Selects pH setup.
  • Page 11 Conductivity Setup Menu Screen Selects Conductivity setup. • tC = Temperature Compensation (Linear or nLF) • COEF = Temperature coefficient for Linear temp compensation - Screen only shown if Linear Temp Comp Selected • tdSF = TDS Factor for Total Dissolved Solids measurement •...
  • Page 12 Log Setup Menu Screen Selects Reading setup: • dEL = Deletes LOG after downloading or roll over readings Selects Delete Log after downloading entry line (Bottom Line). Returns to measurement mode. GLP Setup Menu Screen Selects GLP setup: • SEt Turn SET (Methods) ON/OFF .

  • Page 13: Introduction

    This power supply is the ONLY power supply recommended for use with this unit. Use of any other power supply will void your meter warranty. Gently remove the protective plastic over the meter display. Thermo Electron Corporation Orion Star Series Meter II-1...

  • Page 14: Connecting The Electrodes

    Power Cond Reference pH or ISE 8 pin Stirrer jack Ground stirrer or DO 9 pin Auto stir probe Portable Meter - Electrode Connections RS232 Cond ATC 8 pin DO 9 pin II-2 Orion Star Series Meter Thermo Electron Corporation...

  • Page 15: Turning On The Instrument

    If you benchtop is on line power then the backlight will stay on until turned off with the power/backlight key. To turn off the meter press and hold the power button for 3 seconds. Thermo Electron Corporation Orion Star Series Meter II-3...

  • Page 16: Replacing The Batteries

    2. Place it upside down gently on a clean lint-free wipe or cloth so the display is not scratched. 3. Remove the battery case cover on the benchtop meter on the back of the meter. II-4 Orion Star Series Meter Thermo Electron Corporation...
  • Page 17 8. If the batteries took more than a minute to replace, you may want to update the time & date by pressing the setup key to reset the time and date. 9. Dispose of the used alkaline batteries in accordance with local regulations. Thermo Electron Corporation Orion Star Series Meter II-5...
  • Page 18 Improper installation of non- alkaline batteries could create a hazard. Note: After a battery change the real time clock will be off by however much time is used to replace the batteries. ▲ II-6 Orion Star Series Meter Thermo Electron Corporation...
  • Page 19 Relative Humidity 20 to 90% • Operating Altitude Sea Level to 10,000 feet • Storage Temperature –20 to 85°C • Storage Humidity 20 to 90% • Storage Altitude Sea level to 10,000 feet Thermo Electron Corporation Orion Star Series Meter II-7...
  • Page 20 II-8 Orion Star Series Meter Thermo Electron Corporation...

  • Page 21: Operational Overview

    The units will flash until the reading is stable. c. nLF icon indicates that non-linear temp comp is active for conductivity. d. The graph indicates Calibration mode or calibration setup. Thermo Electron Corporation Orion Star Series Meter III-1...

  • Page 22: Calibration

    The AR icon indicates the meter is in AUTO-READ mode. j. The printer icon indicates the meter is printing, exporting or logging data. 3 & 4 Star Meter Display Sensor Error Temperature Auto Read Calibration pH/ISE/ORP units Conductivity units DO units III-2 Orion Star Series Meter Thermo Electron Corporation...
  • Page 23 If the meter is on, holding down the power key will turn off the meter. 2. The LINE SELECTION key switches the arrow on the left of the screen between the 3 display lines to select the line to edit. Thermo Electron Corporation Orion Star Series Meter III-3...

  • Page 24: Measurement

    So if the Arrow is pointed to line 1 (Top Line) and the current units on that line is for ISE or no units are displayed, then pressing the SETUP key will enter the ISE setup screen. III-4 Orion Star Series Meter Thermo Electron Corporation...
  • Page 25 AUTO-READ mode the MEASURE key will also turn the stirrer on & off automatically during the measurement. This feature is not available on portable meters. Power Back Light Calibrate Measure Save/Print Stirrer On/Off Line Select Digits Setup View Log Thermo Electron Corporation Orion Star Series Meter III-5...

  • Page 26: Setup

    (Value Range or Selections shown in Options Column; Defaults in Bold). • Press the RIGHT ARROW to accept the value and move back to the top line. Press the MEASURE exit to measurement. III-6 Orion Star Series Meter Thermo Electron Corporation...
  • Page 27 Cal Alarms Options pH Cal Alarm 0000 - 9999 ORP Cal Alarm 0000 - 9999 ISE Alarm 0000 - 9999 Cond Cal Alarm COnd 0000 - 9999 0000 - 9999 DO Cal Alarm Thermo Electron Corporation Orion Star Series Meter III-7...

  • Page 28: Calibration

    µS/cm, mS/cm, mg/L, MW-cm, or ppt icon – Conductivity Middle Line: Calibration %Sat or mg/L icon – DO Calibration Bottom Line: Bottom Line: No icon – Barometer Calibration 3. Then press the CALIBRATE key to being the selected calibration. III-8 Orion Star Series Meter Thermo Electron Corporation...
  • Page 29 Top Line: Rel mV Middle Line: µS/cm or mS/cm for conductivity mg/L for TDS ppt for Salinity MegOhms-cm for resistivity %Sat for DO percent saturation Bottom Line: mg/L for DO concentration Barometric Pressure Thermo Electron Corporation Orion Star Series Meter III-9...
  • Page 30 Timed Reading Interval Setting: This screen will only appear if Timed Readings has been selected. This is where you enter the minutes and seconds between readings. The minimum time interval is 5 seconds. III-10 Orion Star Series Meter Thermo Electron Corporation...
  • Page 31 • Meaurement Type Selection Menu Screen. Press the UP & DOWN arrow to select the Measurement Type options as listed below: Cont = Continuous Measurements AUtO = AUTO-READ Measurements tImE = Readings at timed intervals Thermo Electron Corporation Orion Star Series Meter III-11...

  • Page 32: Measurement

    Press the DECIMAL/DIGIT key to change the digit to be scrolled. 00.05 to 99.59 • Press the RIGHT ARROW key to accept the selection and select the Measurement Setup Menu line (Top Line). Press the MEASURE key to return to measurement mode. III-12 Orion Star Series Meter Thermo Electron Corporation...
  • Page 33 Press the UP & DOWN arrow keys to change the value of the flashing digit. Press the DECIMAL/DIGIT key to change the digit to be scrolled. Press the RIGHT Arrow key to move to enter setup. Press the MEASURE key to exit to measurement mode. Thermo Electron Corporation Orion Star Series Meter IV-1...
  • Page 34 EUrO = EUrO (Euro Buffers) 1.68, 4.01, 6.86, 9.15, • Press the RIGHT ARROW key to accept the selection and select the pH Setup Menu line (Top Line). Press the MEASURE key to return to measurement mode. IV-2 Orion Star Series Meter Thermo Electron Corporation...
  • Page 35 3. Place the electrode and ATC probe into the first buffer. The neutral buffer (pH 7.01 or 6.86) is usually recommended to be used first followed from lowest to highest pH. Thermo Electron Corporation Orion Star Series Meter IV-3...
  • Page 36 If the pH icon is not lit, press the RIGHT ARROW key until the arrow on the left of the display is pointing at the top line. Then press the UP arrow key until the pH icon lights. You are now ready to start measuring. IV-4 Orion Star Series Meter Thermo Electron Corporation...
  • Page 37 2. 4. Once your finished measuring samples, rinse the electrode with deionized water and blot dry. Consult your electrode manual for proper electrode storage instructions. Thermo Electron Corporation Orion Star Series Meter IV-5...
  • Page 38 IV-6 Orion Star Series Meter Thermo Electron Corporation...
  • Page 39 STABILITY & SMART AVERAGING algorithms to optimize the accuracy, precision, and response of the ISE measurement. ISE Units: This selects the ISE Units to be displayed in Measurement & Calibration. Both measurement and calibration must be performed in the same units. Thermo Electron Corporation Orion Star Series Meter...
  • Page 40 Press the UP & DOWN arrow to scroll through the Setup Menu until ISE is displayed on the Top line. • Press the RIGHT ARROW key to select the pH setup option line (Middle Line). Press the MEASURE key to return to measurement mode. Orion Star Series Meter Thermo Electron Corporation...
  • Page 41 PPb = Parts per Billion nOnE = No units • Press the RIGHT ARROW key to accept the selection and select the ISE Setup Menu line (Top Line). Press the MEASURE key to return to measurement mode. Thermo Electron Corporation Orion Star Series Meter...
  • Page 42 Note: Any reagents such as ionic strength adjustors, should be added in equal amounts to each sample and standard. ▲ The calibration points should bracket the expected concentration range of the samples and must cover a range of at least ten times greater in concentration. Orion Star Series Meter Thermo Electron Corporation...
  • Page 43 1. Press the UP or DOWN scroll key until the ISE icon is lit. a. Make sure the correct ISE units are displayed. If not go to the ISE setup menu and set the correct ISE units. Thermo Electron Corporation Orion Star Series Meter...
  • Page 44 8. Connect the electrode(s) to meter. Choose standards that will bracket the expected sample concentration. 9. In measurement mode press the RIGHT ARROW key until the arrow on the left of the screen is pointed toward the top display line. Orion Star Series Meter Thermo Electron Corporation...
  • Page 45 Log & Print the measurement by pressing the MEASURE key. If the sitirrer is on press the stirrer button to turn off the stirrer before removing the stirrer from the sample. Thermo Electron Corporation Orion Star Series Meter...
  • Page 46 2. 4. Once your finished measuring samples, rinse the electrode with deionized water and blot dry. Then consult your electrode manual for proper electrode storage instructions. Orion Star Series Meter Thermo Electron Corporation...

  • Page 47: Calibration

    Use the temperature chart on the standard bottle or instruction sheet to enter the appropriate value for the temperature and reference type being used. Then follow step 1. Thermo Electron Corporation Orion Star Series Meter VI-1...
  • Page 48 It will automatically Log & Print each measurement. If you are using the benchtop meter & the stirrer control is enabled then pressing the STIRRER button will start the stirrer. Pressing the stirrer button again will turn off the stirrer. VI-2 Orion Star Series Meter Thermo Electron Corporation...

  • Page 49: Measurement

    & Print the results and freeze the display. If the stirrer is enabled then the stirrer will turn on when the MEASURE key is pressed and turn off once the reading has stabilized. Thermo Electron Corporation Orion Star Series Meter VI-3...
  • Page 50 2. 4. Once your finished measuring samples, rinse the electrode with deionized water and blot dry. Then consult your electrode manual for proper electrode storage instructions. VI-4 Orion Star Series Meter Thermo Electron Corporation...
  • Page 51 Or sets Manual range 1-7 Conductivity Temperature Compensation: This menu allows you to select between turning temperature compensation OFF , selecting a linear temperature compensation, or a non-linear temperature compensation for natural and ultra-pure water. Thermo Electron Corporation Orion Star Series Meter VII-1...
  • Page 52 TDS value obtained in weighing and dividing it by the conductivity of the sample. This factor would then be multiplied by the subsequent conductivity readings to obtain the TDS value of the sample as referenced in Standard Methods for Water and Wastewater. VII-2 Orion Star Series Meter Thermo Electron Corporation...
  • Page 53 Standard arrangement. This also allows the user to fix the meter in one range. This can be useful with extreamly long cables where cable capacitance could cause non-linearities due to the drive frequency change between ranges. Thermo Electron Corporation Orion Star Series Meter VII-3...
  • Page 54 0.0 to 10.0 %/˚C • Press the RIGHT ARROW key to accept the selection and select the Conductivity Setup Menu line (Top Line). Press the MEASURE key to return to measurement mode. VII-4 Orion Star Series Meter Thermo Electron Corporation...
  • Page 55 Press the RIGHT ARROW key to accept the selection and select the Conductivity Setup Menu line (Top Line). Press the MEASURE key to return to measurement mode. • Cell Type & Manual Ranging Selection. Thermo Electron Corporation Orion Star Series Meter VII-5...
  • Page 56 Press the UP & DOWN arrow to scroll through the Setup Menu’s until COND is displayed on the Top line. • Press the RIGHT ARROW key to select the Conductivity setup option line (Middle Line). Press the MEASURE key to return to measurement mode. VII-6 Orion Star Series Meter Thermo Electron Corporation...
  • Page 57 DirectCal calibration use the UP & DOWN arrow and DECIMAL/DIGIT keys to change the conductivity value to the actual conductivity of the standard at the measurement temperature then press CALIBRATE key. Thermo Electron Corporation Orion Star Series Meter VII-7...
  • Page 58 Rinse electrode and place into sample. Record conductivity directly from the main meter display when the mS/cm or μS/cm icon stops flashing indicating a stable value. Temperature is displayed in the top left corner of the display. VII-8 Orion Star Series Meter Thermo Electron Corporation...

  • Page 59: Dissolved Oxygen

    Manual Salinity Correction Factor Air, H O, mAn, SEt0 Dissolved Oxygen Calibration Type Selection CALt Air = Water Sat Air, O = Air Sat Water, mAn = Manual, SEt0 = Zero Cal Thermo Electron Corporation Orion Star Series Meter VIII-1...
  • Page 60 DO measurement. A conductivity probe must be used in addition to the DO probe for automatic salinity correction. The manual setting allow the user to enter a manual salinity correction factor. Select the Manual setting and set it to zero to disable salinity correction. VIII-2 Orion Star Series Meter Thermo Electron Corporation...
  • Page 61 Winkler titration. Set0 is a zero calibration, which is used for very low level DO measurements. Not generally required unless you are making measurements below 5% Saturation or 0.5 mg/L. Thermo Electron Corporation Orion Star Series Meter VIII-3...
  • Page 62 PrES = Manual Pressure Pressure (This screen will only appear if Manual Pressure compensation has been selected) = Automatic/Manual Salinity Compensation SALF = Manual Salinity Factor (This screen will only appear if Manual Salinity Compensation has been selected) CALt = Calibration Type VIII-4 Orion Star Series Meter Thermo Electron Corporation...
  • Page 63 Manual Pressure Setting Menu Screen. Press the UP & DOWN arrow keys to change the value of the flashing digit. Press the DECIMAL/DIGIT key to change the digit to be scrolled. 450.0 to 850.0 Thermo Electron Corporation Orion Star Series Meter VIII-5...
  • Page 64 SEt0 = Zero calibrate the sensor in a Zero Oxygen Solution • Press the RIGHT ARROW key to accept the selection and select the DO Setup Menu line (Top Line). Press the MEASURE key to return to measurement mode. VIII-6 Orion Star Series Meter Thermo Electron Corporation...
  • Page 65 Winkler. This does allow them to take save time and have greater reproducibility by taking most reading using an electrochemical method. Water calibration requires a standard of water saturated with oxygen and is the least commonly used calibration method. Thermo Electron Corporation Orion Star Series Meter VIII-7...
  • Page 66 (anoxic) solution. If this error is unacceptable then zero the probe with the following procedure when: • Using a new sensing-membrane • Using fresh internal filling solution • Measuring dissolved oxygen levels below 1 mg/L or 10% saturation VIII-8 Orion Star Series Meter Thermo Electron Corporation...

  • Page 67: Calibration

    Remove the sponge from the cap and saturate it with water. Squeeze all excess water out of the sponge so that it is merely damp. Replace the sponge into the cap and replace the cap onto the calibration sleeve. Thermo Electron Corporation Orion Star Series Meter VIII-9...
  • Page 68 When stability is reached, the water standard is set to 100 % or the corresponding concentration value. The highest possible accuracy is reached when calibration temperature is the same as the measuring temperature. VIII-10 Orion Star Series Meter Thermo Electron Corporation...
  • Page 69 Winkler Titration Method. The Meter allows the user to scroll the dissolved oxygen measurement to correlate with the value obtained from the Winkler titrated sample. The man calibration function must be enabled in SETUP before the calibration is started. Thermo Electron Corporation Orion Star Series Meter VIII-11...
  • Page 70 To remove the effects of a Probe Zero calibration, perform an Air, Water or Winkler calibration as a one-point calibration. To perform a Probe Zero calibration, follow the steps outlined below. VIII-12 Orion Star Series Meter Thermo Electron Corporation...
  • Page 71 10. After performing the probe zeroing, thoroughly rinse the probe with deionized water. Note: Prior to using the BOD funnel and bottle again, be sure to remove all traces of the oxygen scavenging solution for accurate measurements. ▲ Thermo Electron Corporation Orion Star Series Meter VIII-13...
  • Page 72 VIII-14 Orion Star Series Meter Thermo Electron Corporation...

  • Page 73: Audible Signals

    If the stirrer is enabled then the stirrer will turn on when the MEASURE key is pressed and turn off once the reading has stabilized. • With the AutoStir BOD Probe pressing the button on the probe will start the AUTO-READ measurement. Thermo Electron Corporation Orion Star Series Meter IX-1...

  • Page 74: Stirrer Control

    Press the DECIMAL/DIGIT key to change the digit to be scrolled. Press the RIGHT Arrow key to move to enter setup. Press the MEASURE key to exit to measurement mode. IX-2 Orion Star Series Meter Thermo Electron Corporation...

  • Page 75: Calibration Alarm

    It will provide this warning by lighting the Caution icon and flashing the Probe icon. In addition, the units icon for Rel mV will flash about once every 5 seconds. A setting of 0000, turns off the calibration alarm. Thermo Electron Corporation Orion Star Series Meter IX-3...
  • Page 76 Press the UP & DOWN arrow to scroll through the Setup Menu’s until dUE is displayed on the Top line. • Press the RIGHT ARROW key to select the Cal Alrm setup option line (Middle Line). Press the MEASURE key to return to measurement mode. IX-4 Orion Star Series Meter Thermo Electron Corporation...
  • Page 77 0000 to 9999, where 0000 turns the calibration alarm off. • Press the RIGHT ARROW key to accept the selection and select the Cal Alarm Setup Menu line (Top Line). Press the MEASURE key to return to measurement mode. Thermo Electron Corporation Orion Star Series Meter IX-5...
  • Page 78 0000 to 9999, where 0000 turns the calibration alarm off. • Press the RIGHT ARROW key to accept the selection and select the Cal Alarm Setup Menu line (Top Line). Press the MEASURE key to return to measurement mode. IX-6 Orion Star Series Meter Thermo Electron Corporation...

  • Page 79: Datalog Setup

    Press the UP & DOWN arrow keys to change the value of the flashing digit. Press the DECIMAL/DIGIT key to change the digit to be scrolled. Press the RIGHT Arrow key to move to enter setup. Press the MEASURE key to exit to measurement mode. Thermo Electron Corporation Orion Star Series Meter IX-7...
  • Page 80 = Roll over log when full • Press the RIGHT ARROW key to accept the selection and select the Log Setup Menu line (Top Line). Press the MEASURE key to return to measurement mode. IX-8 Orion Star Series Meter Thermo Electron Corporation...

  • Page 81: General Instrument Setup

    AUTO-STIR BOD probe will act just like pressing the MEASURE key. It will turn on the stirrer, then when the reading stabilizes it will automatically turn off the stirrer, freeze the display and print & log the results. Thermo Electron Corporation Orion Star Series Meter IX-9...
  • Page 82 Press the UP & DOWN arrow to select the rEAd setup Options as listed below: dEgC = Manual Temperture Setting StIr = Enable & Set Stirrer Speed AUtO = Auto-Shut Off Enable/Disable IX-10 Orion Star Series Meter Thermo Electron Corporation...
  • Page 83 = Enable Auto-Shut Off • Press the RIGHT ARROW key to accept the selection and select the General Setup Menu line (Top Line). Press the MEASURE key to return to measurement mode. Thermo Electron Corporation Orion Star Series Meter IX-11...

  • Page 84: Glp Instrument Setup

    UP & DOWN arrow keys to change the value of the flashing digit. Press the DECIMAL/DIGIT key to change the digit to be scrolled. Press the RIGHT Arrow key to move to enter setup. Press the MEASURE key to exit to measurement mode. IX-12 Orion Star Series Meter Thermo Electron Corporation...
  • Page 85 Press the UP & DOWN arrow to scroll through the Setup Menu’s until gEn is displayed on the Top line. • Press the RIGHT ARROW key to select the rEAd setup option line (Middle Line). Press the MEASURE key to return to measurement mode. Thermo Electron Corporation Orion Star Series Meter IX-13...
  • Page 86 0000 to 9999, where 0000 is password disabled • Press the RIGHT ARROW key to accept the selection and select the GLP Setup Menu line (Top Line). Press the MEASURE key to return to measurement mode. IX-14 Orion Star Series Meter Thermo Electron Corporation...

  • Page 87: Time And Date Setup

    Timed: Minute Setting: This is to set the minutes of the hour of the current time (for example, 4:15 pm would be 15). Date Format: This sets the printer and computer output format. Either mdy (Month, Day, Year) or dmy (Day, Month, Year). Thermo Electron Corporation Orion Star Series Meter IX-15...
  • Page 88 HOUr = Current Time Hour Setting = Current Time Minute Setting tYPE = Date output format mdy or dmy YEAr = Year of current date dAtE = Month of current date = Day of current month IX-16 Orion Star Series Meter Thermo Electron Corporation...
  • Page 89 = Day, Month, Year • Press the RIGHT ARROW key to accept the selection and select the Time & Date Setup Menu line (Top Line). Press the MEASURE key to return to measurement mode. Thermo Electron Corporation Orion Star Series Meter IX-17...
  • Page 90 01 to 31 • Press the RIGHT ARROW key to accept the selection and select the Time & Date Setup Menu line (Top Line). Press the MEASURE key to return to measurement mode. IX-18 Orion Star Series Meter Thermo Electron Corporation...

  • Page 91: Instrument Setup

    Press the UP & DOWN arrow keys to change the value of the flashing digit. Press the DECIMAL/DIGIT key to change the digit to be scrolled. Press the RIGHT Arrow key to move to enter setup. Press the MEASURE key to exit to measurement mode. Thermo Electron Corporation Orion Star Series Meter IX-19...
  • Page 92 COmP = Computer Format “Comma Delimited Output” • Press the RIGHT ARROW key to accept the selection and select the RS-232 Setup Menu line (Top Line). Press the MEASURE key to return to measurement mode. IX-20 Orion Star Series Meter Thermo Electron Corporation...

  • Page 93: Multiparameter Printout

    Temperature = 25.0 C Barometric Pressure Barometric Pressure = 760 mmHg Salinity Correction Salinity Correction = 20 Calibration number Calibration # 3 Log number Log # 2 Sample ID Sample # ____________ Operator Operator ____________ Thermo Electron Corporation Orion Star Series Meter IX-21...

  • Page 94: Log View

    Press the MEAS key to escape to measurement mode. Send will output all measurement log points to a printer or computer. CALO will output all calibration logs to a computer or printer. IX-22 Orion Star Series Meter Thermo Electron Corporation...

  • Page 95: Error Codes And Debugging

    Memory Corrupted Reset Meter, if error reoccurs E004 RTC Failure HW Transeint or contact Customer Service Failure Reset Meter, if error reoccurs E005 ADC Failure HW Transeint contact Customer Service or Failure Thermo Electron Corporation Orion Star Series Meter IX-23...
  • Page 96 Wrong Value out of range pH Events/Errors Trouble Shooting Error Description Press Cause Code MEAS to Clear E105 Auto-Buffer Failure Auto-buffer not recognized, will only happen in remote control IX-24 Orion Star Series Meter Thermo Electron Corporation...

  • Page 97: Specifications

    +/-0.2 mV or 0.05%, whichever is greater mV/RmV +/-1999.9 3-Star DO Concentration 0.000 to 90.00 mg/L Relative Accuracy 0.2 mg/L % Saturation 0.0 to 600 Salinity factor 0 to 45 ppt Barometric pressure 450-850 mm Hg Thermo Electron Corporation Orion Star Series Meter...
  • Page 98 M, mg/L, %, ppb, none Resolution 1, 2, or 3 sig. Digits Relative Accuracy +/-0.2 mV or 0.05%, whichever is greater mV/RmV +/-1999.9 mV/RmV/Eh Range +/-1999.9 Resolution +/-0.1 Relative accuracy +/-0.2 mV or 0.5%, whichever is greater Orion Star Series Meter Thermo Electron Corporation...
  • Page 99 0.0 to 19.999.0 mg/L Cell Constant 0.001 to 199.9 Reference temperature 15 °C, 20 °C or 25 °C (default), autoranging mV/RmV/Eh Range +/-1999.9 Resolution +/-0.1 Relative accuracy +/-0.2 mV or 0.5%, whichever is greater Thermo Electron Corporation Orion Star Series Meter...
  • Page 100 0.0 to 19.999.0 mg/L Cell Constant 0.001 to 199.9 Reference temperature 15 °C, 20 °C or 25 °C (default), autoranging mV/RmV/Eh Range +/-1999.9 Resolution +/-0.1 Relative accuracy +/-0.2 mV or 0.5%, whichever is greater Orion Star Series Meter Thermo Electron Corporation...
  • Page 101 -20 to 60 °C Storage Humidity 5% to 85%, Non-Condensing Case Material Shock and Vibration Vibration, Shipping/Handling Per ISTA #1A Shock, Drop Test in Packaging Per ISTA #1A Enclosure IP67 (Portable Meter) IP54 (Benchtop Meter) Thermo Electron Corporation Orion Star Series Meter...
  • Page 102 Orion Star Series Meter Thermo Electron Corporation...

  • Page 103: Terms And Conditions

    User should return the warranty card to Thermo Electron and retain proof of purchase. Warranty is void if product has been abused, misused, or repairs attempted by unauthorized persons.
  • Page 104 Terms and Conditions In the event of failure within the warranty period, Thermo Electron will at Thermo Electron’s option, repair or replace product not conforming to this warranty. There may be additional charges, including freight, for warranty service performed in some countries.
  • Page 105 Terms and Conditions Twelve months from date of purchase by the user (or eighteen months from date of shipment from Thermo Electron) Orion Laboratory pH Meters, (Orion 301, 611 and 940), SensorLink , pHuture™ pH ® Meters (Orion 610 and 620), Smart Chek™ meters, Sage...
  • Page 106 HEREUNDER. REPRESENTATION AND WARRANTIES MADE BY ANY PERSON, INCLUDING ITS AUTHORIZED DEALERS, REPRESENTATIVES AND EMPLOYEES OF THERMO ELECTRON WHICH ALTER OR ARE IN ADDITION TO THE TERMS OF THIS WARRANTY SHALL NOT BE BINDING UPON THERMO ELECTRON UNLESS IN WRITING AND SIGNED BY ONE OF ITS OFFICERS.
  • Page 107 Any action arising under this Agreement must be brought within one (1) year from the date that the cause of action arose. Thermo Electron Corporation Orion Star Series Meter XI-5...
  • Page 108 XI-6 Orion Star Series Meter Thermo Electron Corporation...

  • Page 109: Declaration Of Conformity

    3-Star pH portable Directive / Standard: 89/336/EEC Electromagnetic Compatibility (EMC) Directive EN 61326:1997 + A1:1998 + A2:2001, Electrical equipment for measurement, control and laboratory use: EMC-requirements for measurement device per Annex D. Thermo Electron Corporation Orion Star Series Meter XII-1...
  • Page 110 - general requirements These products have been manufactured in compliance with the provisions of the relevant Thermo Electron manufacturing and test documents and processes. Further, these documents and processes are recognized as complying with ISO9001: 2000 by QMI, listed as File #001911.
  • Page 111 Thermo Electron Corporation Environmental Instruments Water Analysis Instruments 166 Cummings Center Beverly, MA 01915 USA Tel: 978-232-6000 Toll Free: 800-225-1480 Dom. Fax: 978-232-6015 Int’l. Fax: 978-232-6031 www.thermo.com/water 248590-001 RevA...
