READING ER PROBES
CHAPTER 6
Custom Probe Setup
Probes may also be configured manually by following the procedure below:

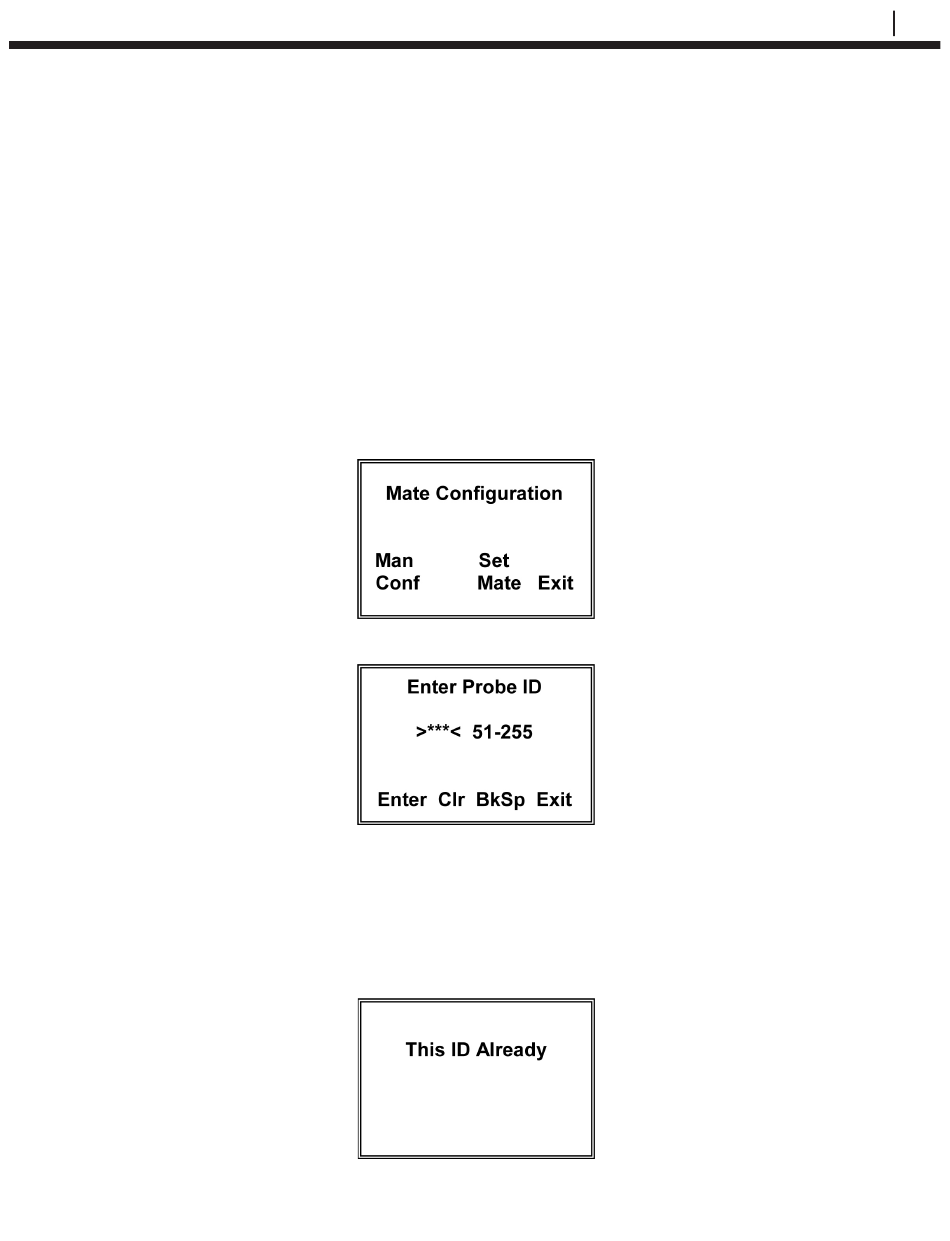

From the Standby display, press SetUp (F4) to go to the Mate Configuration display:
Press Man Conf (F1) to go to the Enter Probe ID display:
Enter a number between 51 and 255 and press Enter (F1) to go to the Enter Probe
Tag display.
Note: If an invalid ID is entered, it is automatically cleared upon pressing Enter (F1).
Note: If the ID selected has already been configured, the This ID Already Configured
display appears:
