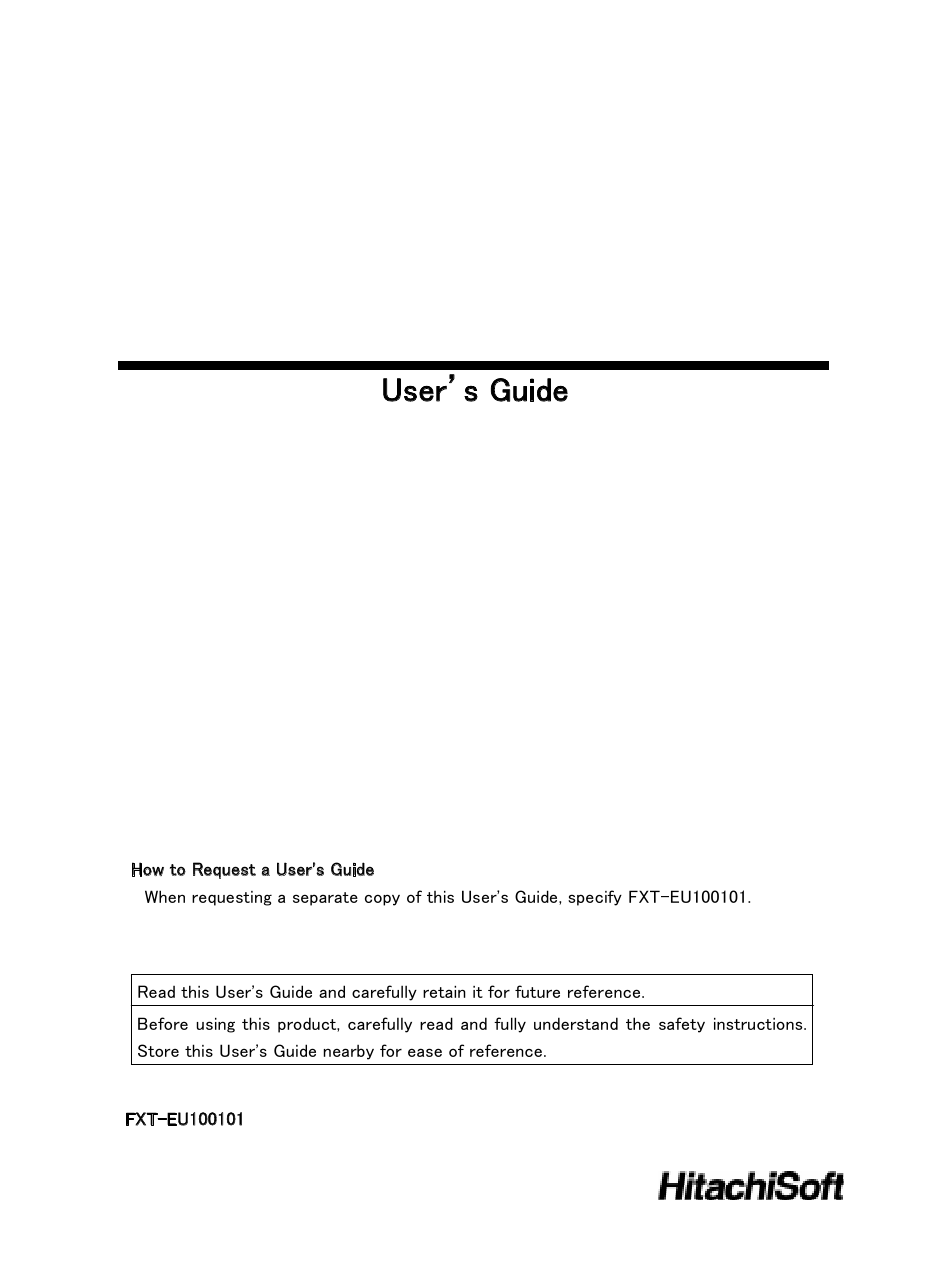

- Page 1 StarBoard FX-TRIO Series...
- Page 3 StarBoard FX-TRIO Series English...
- Page 4 StarBoard FX-TRIO Series All Right Reserved, Copyright(c) 2009, 2010, Hitachi Software Engineering Co.,Ltd. English...
- Page 5 StarBoard FX-TRIO Series English...
- Page 6 StarBoard FX-TRIO Series Safe Handling English...
- Page 7 StarBoard FX-TRIO Series Safe Handling Do not make modifications. Do not open or remove cover of this product. Failure to comply may lead to personal injury or damage to the product. Do not place objects on top of this product. Do not allow the reflective tape surrounding the board to become dirty or scratched.
- Page 8 StarBoard FX-TRIO Series Safe Handling What to do in case of emission of smoke, strange odor, or strange noise If an abnormal condition such as emission of smoke, strange odor, or strange noise happens to occur for some reason, immediately disconnect the product's USB cable from the PC.
- Page 9 StarBoard FX-TRIO Series Safe Handling Disconnect the USB cable during extended periods of non-use. Handle the connection cable properly. Always use two or more people to move this product. This product is a very large and heavy precision instrument. Always disconnect the USB cable from the PC when moving this product.
- Page 10 StarBoard FX-TRIO Series Safe Handling Wall mounting work should be performed by a construction specialist. Improper assembly may cause the product to fall over. There is risk of personal injury if the product falls over. Completely tighten the screws of all individual parts. Do not place in a location with flammable or corrosive gas.
- Page 11 StarBoard FX-TRIO Series Safe Handling Regarding the setup environment Do not use this product in locations subject to high temperature or high humidity. This product's usage environment conditions: Temperature: 5°C – 35°C Do not set up in locations subject to vibration and/or shock of impact.
- Page 12 StarBoard FX-TRIO Series Safe Handling Do not strike the board forcefully with the stylus pen, bend it, or apply an excessive load to it. English...
-
Page 13: Table Of Contents
Contents StarBoard FX-TRIO Series 1. INTRODUCTION....................... 1-1 ......................1-1 ....................1-1 ......................1-1 ......................1-2 1.2.1 StarBoard ......................1-2 ...................... 1-3 ..................1-4 ..................... 1-5 ......................1-5 ...................... 1-6 ..................1-7 ....................1-7 ................1-8 Stand Setup Method ..................1-10 1.4.3 Pen Holder Setup Method ................ - Page 14 Contents StarBoard FX-TRIO Series 3.6 R ....................3-9 EPLACEABLE ARTS 3.7 P ................. 3-10 RODUCT ARRANTY OLICY English...
- Page 15 StarBoard FX-TRIO Series English...
-
Page 16: Introduction
Introduction StarBoard FX-TRIO Series 1.2.1 StarBoard English... -
Page 17: Starboard
Introduction StarBoard FX-TRIO Series English... - Page 18 Introduction StarBoard FX-TRIO Series English...
- Page 19 Introduction StarBoard FX-TRIO Series (1) Digitiser Storage Area (5) Casters (2) Function Area (Left and Right) (3) Input Area (6) Pen Holder (4) USB Cable English...
- Page 20 Introduction StarBoard FX-TRIO Series Select Solid Pen (black). English...
- Page 21 Introduction StarBoard FX-TRIO Series English...
- Page 22 Introduction StarBoard FX-TRIO Series Keep the wall material in mind when installing. [1] Install the wall-mounting brackets Determine the height at which the board will be installed, and install the wall-mounting brackets on the wall at the positions shown in the following diagram below. The wall-mounting brackets are provided with the StarBoard.
- Page 23 Introduction StarBoard FX-TRIO Series Be sure to use two or more people for this work. English...
-
Page 24: Stand Setup Method
Introduction StarBoard FX-TRIO Series Stand Setup Method [1] Assemble the stand FX-TRIO-77 is available with the stand. Assemble the stand according to the following diagram. The numbers in the diagram correspond to the numbers in the parts list on page 1-3. English... - Page 25 Introduction StarBoard FX-TRIO Series Be sure to use two or more people for this work. (a) Decide the level (out of six) at which the board will be installed, and attach the board receiving brackets (4) and (5) to the square holes of the stays on the back of the board.
- Page 26 Introduction StarBoard FX-TRIO Series (a) Remove the triangular knob screw at the bottom of each side. (b) Raise the board and attach the receiving brackets to the square holes at the desired height. English...
-
Page 27: Pen Holder Setup Method
Introduction StarBoard FX-TRIO Series 1.4.3 Pen Holder Setup Method English... - Page 28 Introduction StarBoard FX-TRIO Series (a) Remove the installation part from the pen holder. (b) Insert the installation part into the opposite groove. (c) Insert the pen holder into the rail on the left side on the back of the board and slide it to the desired position.
- Page 29 Introduction StarBoard FX-TRIO Series Before Starting to Connect Equipment (1) Connect the RGB cable to the projector's RGB connector, and fasten with screws. (2) Connect the opposite side of the RGB cable to the PC's RGB connector, and fasten with screws.
- Page 30 StarBoard FX-TRIO Series English...
- Page 31 How to use StarBoard FX-TRIO Series English...
- Page 32 How to use StarBoard FX-TRIO Series English...
- Page 33 How to use StarBoard FX-TRIO Series English...
-
Page 34: How To Use
How to use StarBoard FX-TRIO Series Be sure to provide insulation during disposal. (1) Open the battery cover by moving it in the direction of the arrow. (2) As shown in the figure, insert the AAA alkaline battery so that the + side faces the outside. - Page 35 How to use StarBoard FX-TRIO Series (1) When drawing with the electronic pen, keep the pen as perpendicular as possible to the board and apply force sufficient enough to cause the pen tip to retract into the electronic pen. (2) A miniature transmitter is embedded in the tip of the electronic pen. If you hold the transmitter area of the electronic pen while drawing characters or images, the drawing data from the electronic pen might not be transmitted correctly.
-
Page 36: Customizing The Electronic Pen
How to use StarBoard FX-TRIO Series Customizing the Electronic Pen English... - Page 37 How to use StarBoard FX-TRIO Series (1) Connect the devices with reference to the connection method on page 1-15. (2) Turn on the power switch of the projector. (3) Turn on the power switch of the PC to start Windows. (4) Adjust the position of the projector so that the Windows screen projected by the projector is within the input area (refer to page 1-5 of this User's Guide).
- Page 38 How to use StarBoard FX-TRIO Series (6) Run "LsCanWiz.exe" located under "My Computer" "C Drive" "Program Files" "Hitachi Software Engineering" "FX-DUODriver", and adjust the sensor according to theinstructions on pages 3-5. English...
-
Page 39: Troubleshooting
StarBoard FX-TRIO Series 3.1 Troubleshooting English... - Page 40 StarBoard FX-TRIO Series English...
- Page 41 StarBoard FX-TRIO Series English...
-
Page 42: Adjusting The Sensor
StarBoard FX-TRIO Series 3.2 Adjusting the Sensor 3.2.1 Items to Check Before Making Sensor Adjustments [1] Press the "Adjust Camera" button on the "LSaDrv Touch Sensor Error" dialog box displayed on the PC screen. English... - Page 43 StarBoard FX-TRIO Series English...
- Page 44 StarBoard FX-TRIO Series English...
- Page 45 StarBoard FX-TRIO Series English...
- Page 46 StarBoard FX-TRIO Series English...
-
Page 47: Proper Care And Cleaning
StarBoard FX-TRIO Series 3.5 Proper Care and Cleaning (1) Cleaning the StarBoard (2) Cleaning the reflective tape If the reflective tape is dirty, it will affect pen or finger operations. Clean the reflective tape periodically or whenever it becomes dirty or soiled. (3) Cleaning the electronic pen 3.6 Replaceable Parts English... - Page 48 StarBoard FX-TRIO Series 3.7 Product Warranty Policy 1. During the free warranty service period, if a malfunction occurs during normal use, the malfunction will be corrected without charge, according to the provisions of the warranty. Furthermore, if the customer registration card accompanying the warranty is not returned to our company, the customer information will not be registered;...
- Page 49 StarBoard FX-TRIO Series English...
