Snapper WALK BEHIND MOWER Setup Instructions page 2

IMPORTANT: This mower is shipped with the recycling
plug installed. The plug must be removed if the mower
is operated with grass catcher. DO NOT start or operate
this mower without the plug or the entire grass catcher
in place.

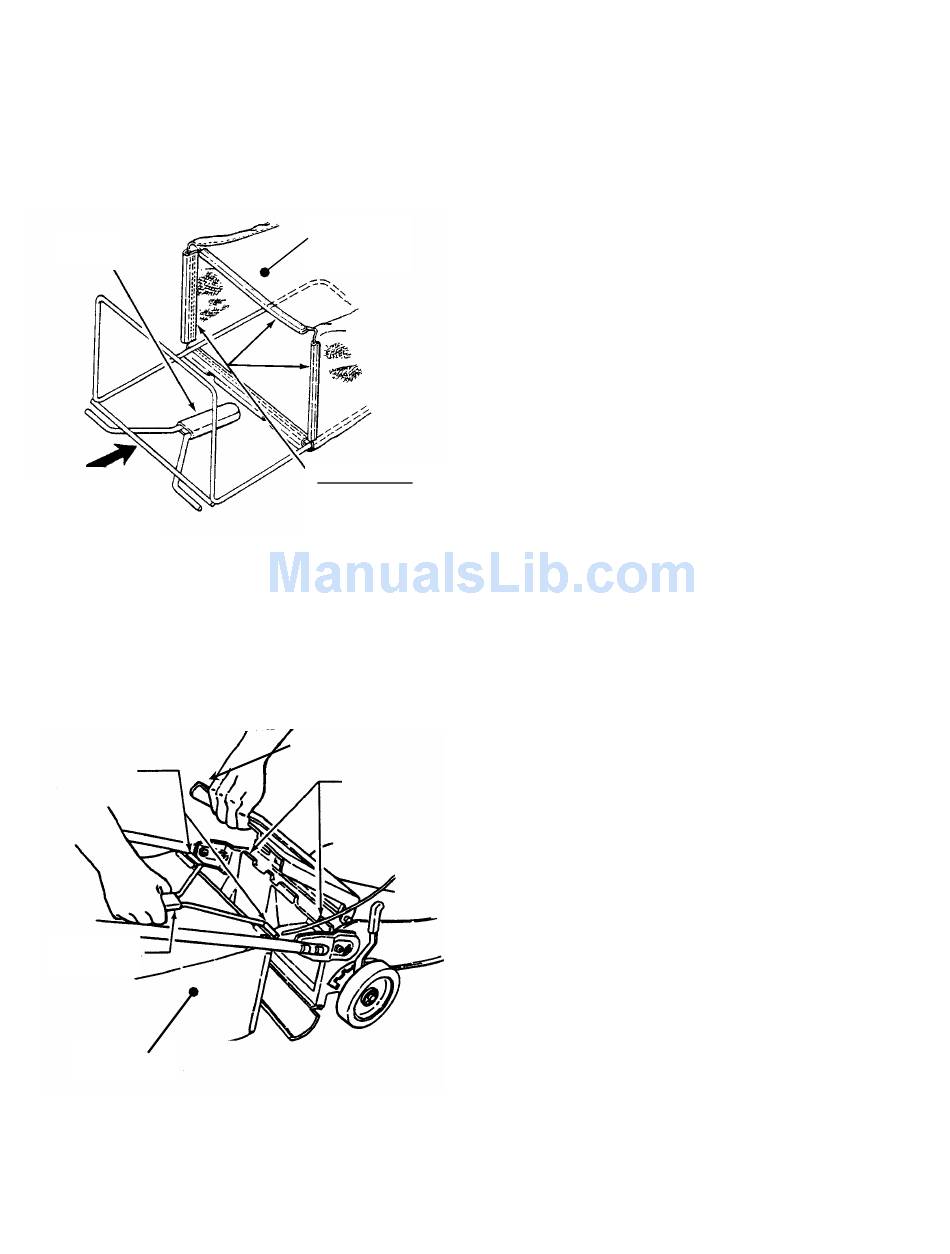

STEP 9: With grass catcher and catcher frame
assembly upside down (plastic bottom turned up), insert
bag frame assembly into catcher as shown in Figure 4.
Fasten "C" shaped plastic edge strip located on front of
bag around frame assembly on all four sides. Make sure
edge strip is fastened securely.
CATCHER
HANDLE
SLIDE FRAME ALL
THE WAY INTO
GRASS CATCHER
FIGURE 4
STEP 10: Install grass catcher to mower as follows: Lift
discharge door, then grasp handle and hold grass
catcher/frame up while placing rod ends over tabs at rear
of mower deck. Release discharge door. See Figure 5.
LIFT ROD
ENDS OVER
TABS
CATCHER
HANDLE
GRASS
CATCHER
FIGURE 5
BOTTOM OF
GRASS
CATCHER
EDGE STRIPS:
ATTACH STRIPS TO
FRAME.
LIFT DISCHARGE
DOOR
TABS
2
