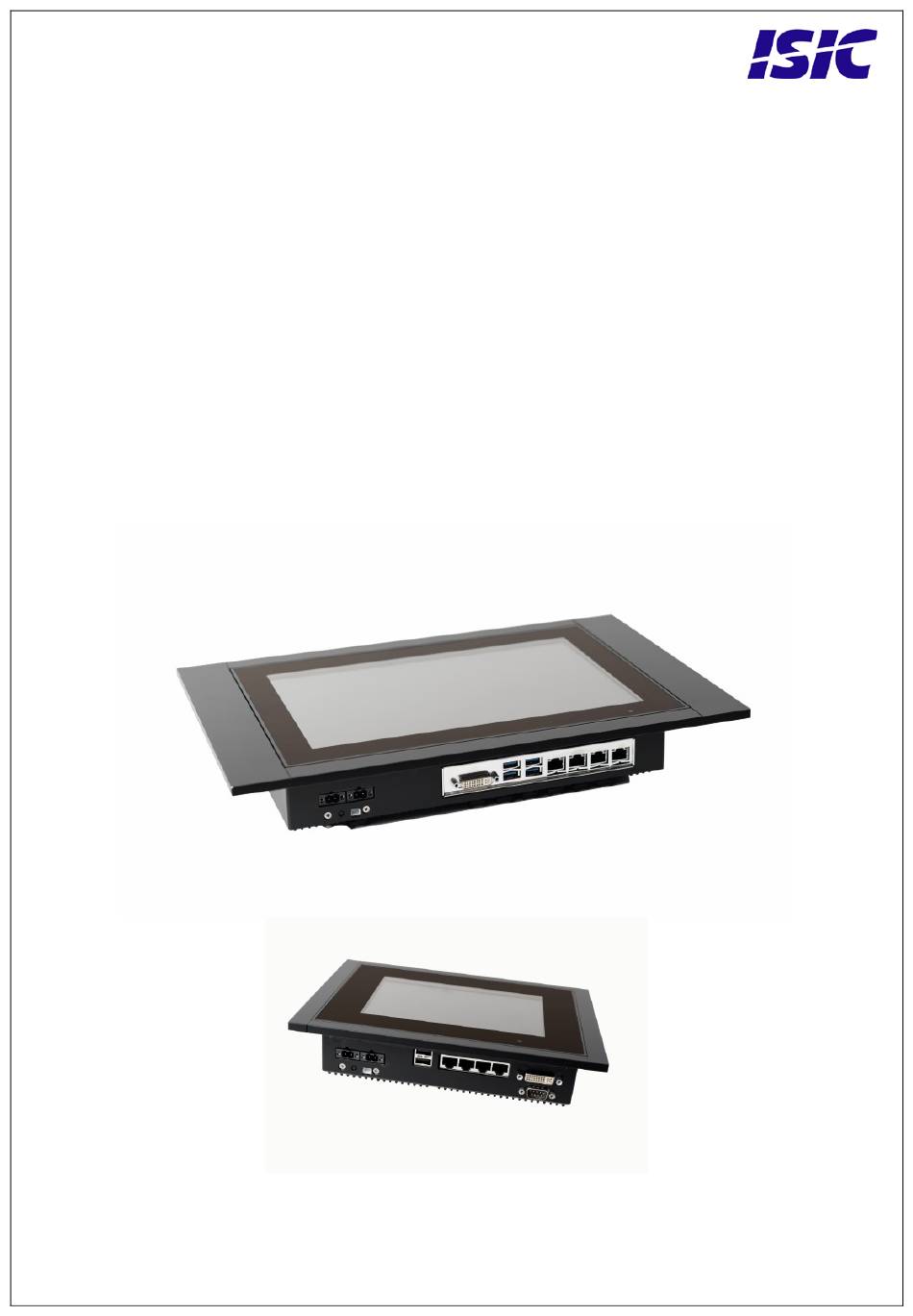

  • Page 1 User Manual DuraPanel Series DuraPanel 7” DuraPanel 12”...
  • Page 2 Disclaimer ISIC A/S makes no representation or warranties with respect to the contents or use of this manual, and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. Further, ISIC A/S reserves the right to revise this publication and to make changes to its content at any time, without obligation to notify any person or entity of such revisions or changes.

  • Page 3: Table Of Contents

    19 IN RUSH CURRENT ....................23 20 TROUBLESHOOTING .................... 23 21 SERVICING THE UNIT ..................23 22 ISIC INFO / SUPPORT ..................24 23 REVISION HISTORY .................... 25 24 APPENDIX A: PIXEL POLICY ................26 25 APPENDIX B: CERTIFICATE OF CONFORMITY ............29 User Reference Manual –...

  • Page 4: Features

    The DuraPanel is designed to work at conditions according to IEC 60945. However, keeping the temperature and vibration level at a minimum will extend the life time of the product. ISIC recommend operating this product at normal room temperature (20-25 °C), with the lowest level of vibration and humidity.

  • Page 5: Durapanel Connections

    2 x USB 4 x LAN Serial DVI-I CHASSIS * Optional fan output. DuraPANEL12” connections * FAN DVI-I 4 x USB 4 x LAN 2 x PWR Serial CHASSIS RESET User Reference Manual – DuraPanel series PN: 07353-000 Rev B Page 5...

  • Page 6: Connector Pin-Out

    COM port used for external communication COM1 COM port used for internal communication COM2 RS-232 RS-422 RS-485 COM1 needs to be specified when DuraPANEL12 is ordered. RS485 flow control is set in BIOS User Reference Manual – DuraPanel series PN: 07353-000 Rev B Page 6...
  • Page 7 The nominal input power voltage is 24V (18-36VDC). There are two independent galvanic isolated power inputs. Mating part number: Weidmüller BLZP5.08HC/02/180F Power in Pin1 0VDC 24VDC Fan output Mating part: JST XHP-2 (housing), SXH-001T-P0.6 (terminal) Pin1 FAN out 12VDC 0VDC User Reference Manual – DuraPanel series PN: 07353-000 Rev B Page 7...

  • Page 8: Technical Specification Durapanel 7

    Size: 218 (W) x 147mm (H) x 59mm (Depth behind bezel) Weight: App. 2 kg. Optional Bracket: Desk/ceiling-and wall-bracket (VESA 75x75mm) Optional Accessories: External fan for VESA mounting User Reference Manual – DuraPanel series PN: 07353-000 Rev B Page 8...

  • Page 9: Technical Specification Durapanel 12

    Size: 396 mm (W) x 256 mm (H) x 63.5 mm (Depth behind bezel) – Drop-in retrofit 13.3” version Weight: App. 4 kg. Optional Bracket: Desk/ceiling-and wall-bracket (VESA 75x75mm) User Reference Manual – DuraPanel series PN: 07353-000 Rev B Page 9...

  • Page 10: Mechanical Outline Durapanel 7 - Drop In

    Sheet: 1 of 1 Drawing size: Angle, straightness and flatness: DS/ISO 2768-H Designed by 25-08-2015 Approved by 25-08-2015 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Subject: Drawing no. Rev. Scale: 07376-001 Mechanical outline DuraPanel 7" Drop in...

  • Page 11: Mechanical Outline Durapanel 7 - Flush Mount

    Sheet: 1 of 1 Drawing size: Angle, straightness and flatness: DS/ISO 2768-H Designed by 25-08-2015 Approved by 25-08-2015 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Subject: Drawing no. Rev. Scale: 07376-004 Mechanical outline DuraPanel 7" Flush...

  • Page 12: Mechanical Outline Durapanel 7 - Retrofit

    Sheet: 1 of 1 Angle, straightness and flatness: DS/ISO 2768-H Designed by 25-08-2015 Approved by 25-08-2015 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Subject: Drawing no. Rev. Scale: 07376-002 Mechanical outline DuraPanel 7" Retrofit...

  • Page 13: Mechanical Outline Durapanel 7 - Simulation

    Sheet: 1 of 1 Drawing size: Angle, straightness and flatness: DS/ISO 2768-H Designed by 25-08-2015 Approved by 25-08-2015 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Subject: Drawing no. Rev. Scale: 07376-003 Mechanical outline DuraPanel 7" Simulator...

  • Page 14: Mechanical Outline Durapanel 7 - Optional Fan

    Sheet: 1 of 1 Drawing size: Angle, straightness and flatness: DS/ISO 2768-H Designed by 24-9-2015 Approved by 24-9-2015 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Subject: Drawing no. Rev. Scale: Mechanical outline Optional fan for 07386-000 DuraPanel 7"...

  • Page 15: Mechanical Outline Durapanel 12 Inch - Flush

    Sheet: 1 of 1 Drawing size: Angle, straightness and flatness: DS/ISO 2768-H Designed by 28-08-2015 Approved by 28-08-2015 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Subject: Drawing no. Rev. Scale: Mechanical outline DuraPanel 12,1" Flush 07377-002...

  • Page 16: Mechanical Outline Durapanel 12 Inch - Retrofit

    Sheet: 1 of 1 Drawing size: Angle, straightness and flatness: DS/ISO 2768-H Designed by 25-08-2015 Approved by 25-08-2015 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Subject: Drawing no. Rev. Scale: Mechanical outline DuraPanel 12,1" Retrofit 07377-001...

  • Page 17: Mechanical Outline Durapanel 12 Inch - Drop In

    Sheet: 1 of 1 Drawing size: Angle, straightness and flatness: DS/ISO 2768-H Designed by 28-08-2015 Approved by 28-08-2015 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Subject: Scale: Drawing no. Rev. 07377-004 Mechanical outline DuraPanel 12,1" Drop in...

  • Page 18: Dura Communication Protocol

    The remote master can address all interface boards simultaneously using the broadcast address. In this case the interface boards will not reply. ADDR Description 0x00:0xFE Individual address space 0xFF Broadcast address User Reference Manual – DuraPanel series PN: 07353-000 Rev B Page 18...
  • Page 19 The interface board will reply with a NACK to all messages with invalid checksums. This requirement does not apply to broadcasted messages. 15.2.6 No Operation (NOP) This is empty data ‘0x00’ and only used as a filler between detection bytes for the reset command. User Reference Manual – DuraPanel series PN: 07353-000 Rev B Page 19...
  • Page 20 The monitor will reply to this command with an ACK attention code. The DATA field will be set to an ASCII string with the ISIC P/N and revision. Maximum length is 20 characters. Example: Ask for the Monitor Firmware Version:...
  • Page 21 0x06 0x52 0xAD Reply from interface board (“025” for 25 °C) ATTN ADDR IHCHK DATA IDCHK 0x06 0x00 0x54 0x4D 0x50 0x04 0x04 0x52 0x30 0x32 0x35 0x16 User Reference Manual – DuraPanel series PN: 07353-000 Rev B Page 21...

  • Page 22: Backlight, Color

    The monitor of DuraPANEL7 & 12 are detected as a Display Port monitor. DuraPANEL7 & 12 support DDC/CI commands for display settings like brightness, contrast, color luminance, color temperature. User Reference Manual – DuraPanel series PN: 07353-000 Rev B Page 22...

  • Page 23: Compass Safe Distance

    No calibration of touch Calibrate touch Servicing the unit In case that the unit still fails after following the troubleshooting send the unit to ISIC for repair via our RMA service on our web. User Reference Manual – DuraPanel series...

  • Page 24: Isic Info / Support

    During office-hours (Mo-Fr: CET 0800 - 1600) at +45 70 20 70 77 Service: Before shipment for service Request Return Material Authorization number at homepage www.isic-systems.com under RMA By mail to service@isic-systems.com User Reference Manual – DuraPanel series PN: 07353-000 Rev B Page 24...

  • Page 25: Revision History

    Chapter 3: new DuraPANEL7” drawing in updated and RS232 changed to serial. Chapter 4: RS422/485 information added in, serial table updated with correct pin out. DuraPANEL12 swapped COM1 & COM2. Chapter 15: added DDC/CI information. User Reference Manual – DuraPanel series PN: 07353-000 Rev B Page 25...

  • Page 26: Appendix A: Pixel Policy

    TFT display. To regulate the acceptability of defects and protect the end user, ISIC A/S complies with the ISO 9241-307:2008 standard. This standard recommends how many defects are considered acceptable in a display, before it should be replaced within the terms of the warranty.
  • Page 27 Pixels in a cluster area constantly dark Cluster pixel defect type 3a Cluster pixel defect type 3b Sub-pixels/dots in a cluster area constantly lit Sub-pixels/dots in a cluster area constantly dark User Reference Manual – DuraPanel series PN: 07353-000 Rev B Page 27...
  • Page 28 1 type 2 (2xN 1 and 2 type 3 WVGA 800x480 384,000 1024x768 768,432 WXGA 1280x800 1,024,000 SXGA 1280x1024 1,310,720 UXGA 1600x1200 1,920,000 1920x1080 2,073,600 WUXGA 1920x1200 2,304,000 User Reference Manual – DuraPanel series PN: 07353-000 Rev B Page 28...

  • Page 29: Appendix B: Certificate Of Conformity

    Appendix B: Certificate of Conformity User Reference Manual – DuraPanel series PN: 07353-000 Rev B Page 29...
  • Page 30 Edwin Rahrs Vej 54 DK-8220 Brabrand Denmark Web: http://www.isic-systems.com Email: service@isic-systems.com User Reference Manual – DuraPanel series PN: 07353-000 Rev B Page 30...
