Southco EA-P1 Operating Instructions

Package Contents


Stand alone PIN + Prox Controller

Operating instructions

Wire harness for JA door access connector (9-wires with
blue connector)

Wire harness for JB lockout alarm connector (8-wires with
white connector)

Wire harness for JC tamper switch connector (3-wires with
blue connector)

Wire harness for JD external Wiegand reader connector (4-
wires with white connector)

Diode (IN4007GW)

2 mounting screws

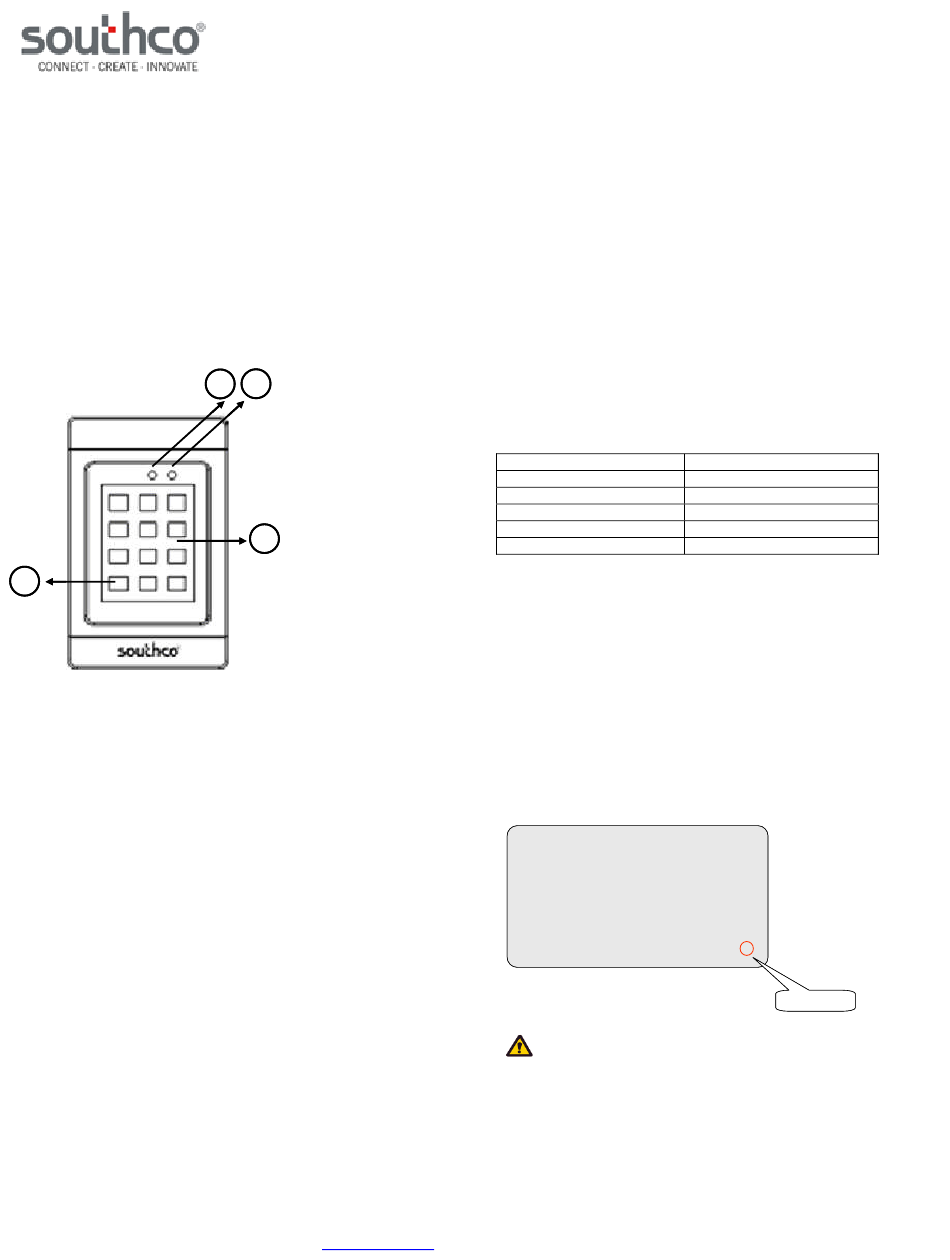

EA-P1-01x Standalone Proximity Controller
4 4
1. Power ON LED
2. Bicolor (red/green) Status LED
3. PIN + Prox Controller
4. Return to Ready State

Features


Supports up to 9,999 user cards and five PIN codes

Multiple modes of operation: card-only, card or PIN, card
and PIN, bypass mode

Programmable door release time (1 to 98 seconds)

Programmable failed attempts (1 to 99)

Programmable lockout time (1 to 98 seconds)

Programmable user and supervisor code length (4 to 8
digits)

LED indicators: Power and Status

Supports connection to an external 26-bit Wiegand reader

Non-volatile memory will retain data when power is removed

Tamper switch

For indoor use only

Controller Mounting and Installation

Please refer to Southco trade drawing J-EA-P1-01 for mounting and
installation details.
J-EA-P1-01-M_revD
EA-P1 Proximity Controller
Operating Instructions
2 2 1 1
3 3
visit www.southco.com

Specifications

User Cards Supported:
Supervisor Cards Supported: 9
PIN Codes Supported:
Power:
Transmit Frequency :
Card Reading Range:
Default Access Time:
Operating Temperature:
Operating Humidity:
Dimensions:

Default Settings

The table below describes the default settings of the EA-P1-01x
controller.
Description
Access Time
PIN Code Length
Number of Failed Attempts
Lockout Alarm Time
Mode of Operation

Enrolling Supervisor Card

To enroll the supervisor card:
1. Apply power to the unit.
2. Switch the two DIP switches on the rear of the unit to "ON".
3. Hold the supervisor card to the unit. The status LED will
flash red/green if the card has been successfully enrolled.
4. Switch the two DIP switches on the rear of the unit to their
original positions ("1" and "2").
To enroll additional supervisor cards, repeat Steps 1-3 above. Note
that the last digit in the bottom right corner of the prox card must be
different for each supervisor card (see below).
xxxx xxxxxxxxxx
NOTE: Once a supervisor card has been enrolled, it cannot be
deleted.
for latest version of this document
9,999
5
12VDC ± 10%
90mA maximum (standby mode), no
attached devices
110mA maximum (operating mode), no
attached devices
125kHz ASK (EM)
up to 10 cm (depending on installation)
4 seconds
0-50 °C
20-90% RH, No condensation
118 mm x 75 mm x 19 mm
Default Value
4 seconds
4 digits
3
60 seconds
card only
01234 56789
last digit
