1)Package Contents
EA-P3-200 Proximity Reader
•
Wire Harness
•
Mounting Screws (x2)
•
Operating Instructions
•
EA-P3-200 Proximity Reader
1.
Status LED
2.
Power LED
3.
Loopback LED
Features
LED and buzzer indicators
•
Two operation modes:
•
Timed mode with 10 user-selectable
o
operation times between 1-13s
Latched mode
o
Tamper switch
•
Auxiliary Input
•
Specifications
Supply Voltage:
12VDC ± 10%
Supply Current:
160 mA maximum (no
attached devices)
Transmit Frequency:
13.56 MHz (ISO 14443A)
Card Reading Range:
up to 5 cm (depending on
installation)
Operating Temperature:
-15 to 55 ° C
Dimensions:
94 mm x 43 mm x 15 mm
Note: Read range distance may vary depending on card
type, mounting conditions, or environmental conditions.
In some cases, the card may need to make contact with,
or be moved across, the RFID reader.
CAUTION: The High Frequency RFID Access
Controller PCA is an ESD-sensitive device. Observe ESD
best practices when accessing the PCA to avoid damage to
the PCA.
J-EA-P3-200-M_revB
PRN: P2017-2297 (RJH/KAM)
EA-P3-200 High Frequency RFID Access
Controller Operating Instructions
Reader Mounting and Installation
Please refer to Southco trade drawing J-EA-P3-200 for
mounting and installation details.
Wire Descriptions
The EA-P3-200 has a 12-wire stripped and tinned harness,
as described below:
Color
Red
Black
Brown
Orange
Yellow
Green
Blue
Light Green
Pink
Purple
Gray
White

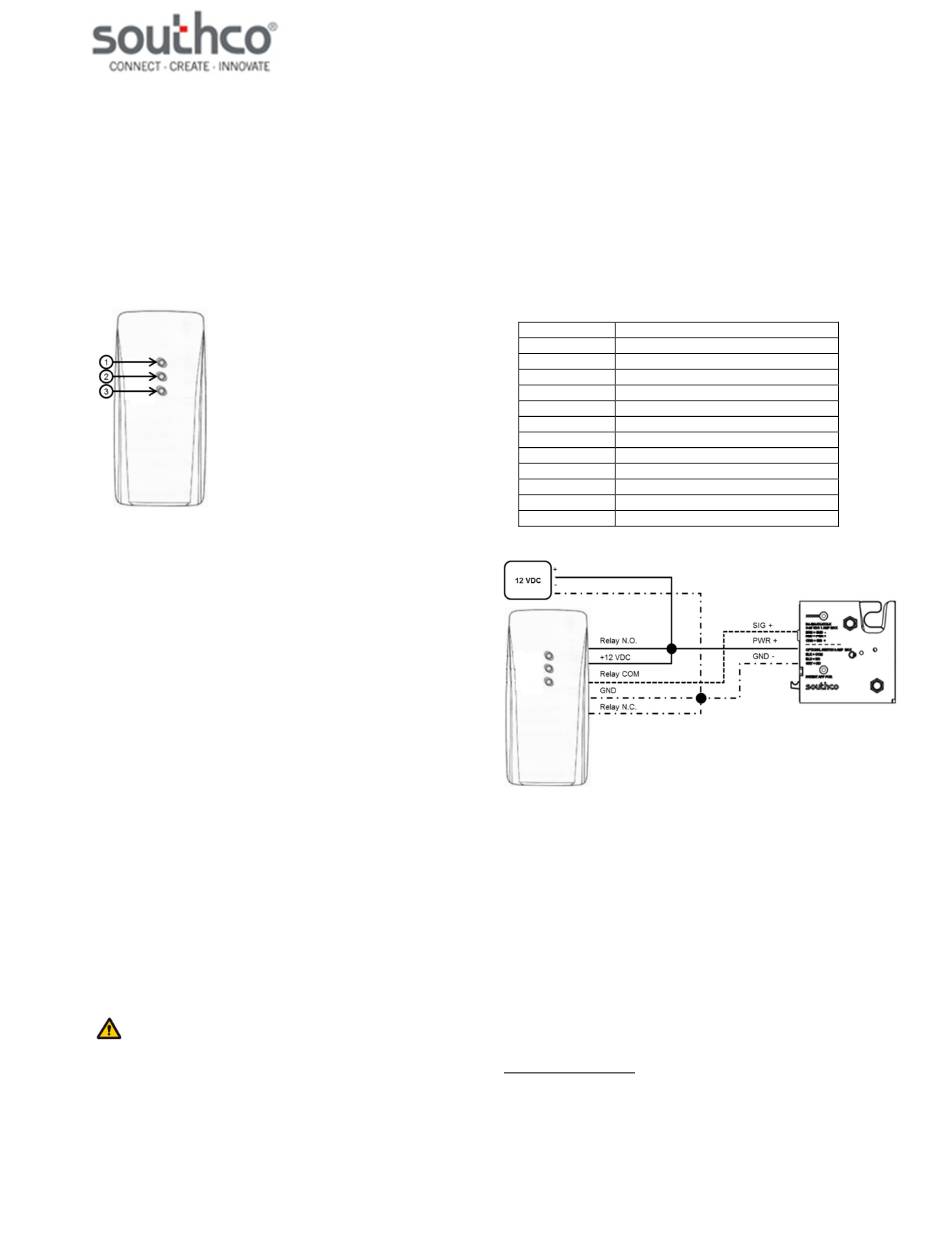

An example connection diagram is shown below.
Default Settings
Operation Mode: Timed Mode
Default Access Time: Approximately 5 seconds
Set Up
Supervisor Card Setup
Description
+12 VDC
GND
Relay N.O.
Relay COM
Relay N.C.
No function (cut this wire)
Auxiliary Input
Loopback LED GND
Loopback LED Control (+12 VDC)
Tamper Switch N.C.
Tamper Switch N.O.
Tamper Switch COM
1.
Choose operation mode, timed or latched, using
the jumper settings shown in section "Operation
Mode Change". The default setting is timed mode.
See sections "Timed Mode Use" and "Latched
Mode Use" for specific details on each mode.
2.
Apply power to unit.
3.
Hold down SW1 for at least 10 seconds. This will
clear the reader memory of all cards. During this
time, the unit will beep once after approximately 2
Page 1 of 5
