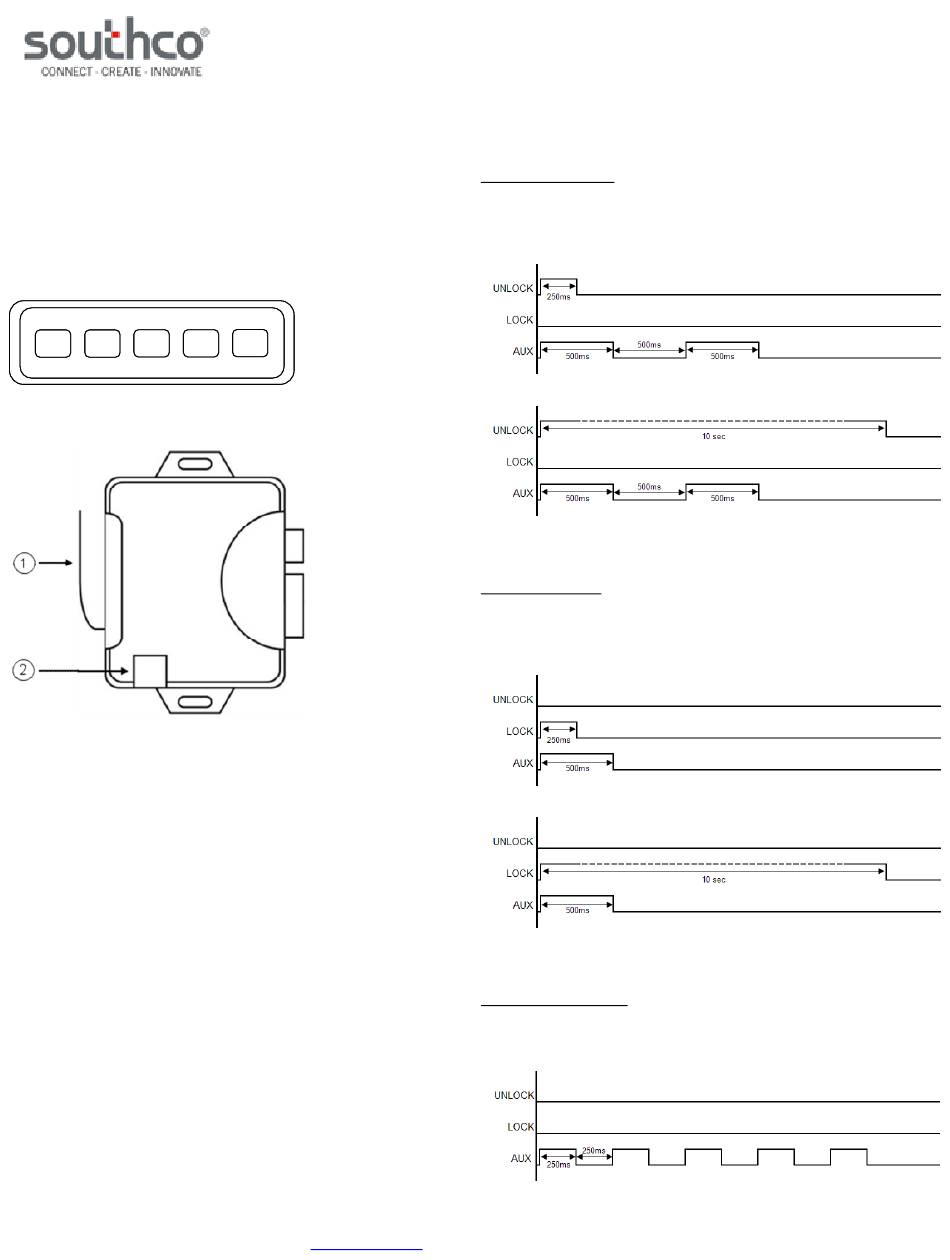

Southco EA-R03 Operating Instructions

Package Contents


EA-R02-202 Receiver

EA-R03-103 Wireless Keypad Transmitter

Keypad Mounting Packet

Power/Auxiliary Connector Wire Harness

Lock/Unlock Relay Connector Wire Harness

User Instructions

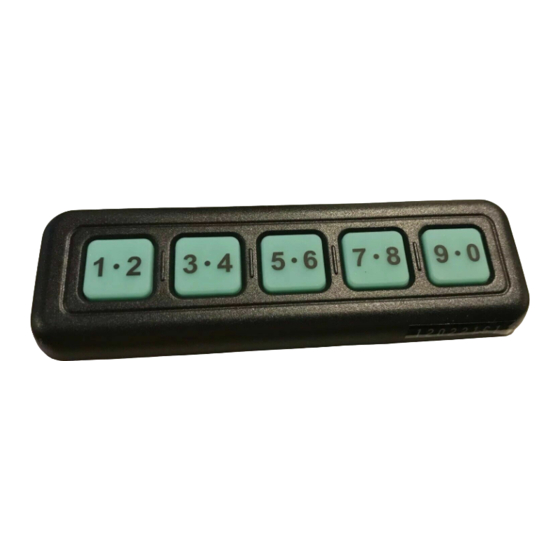

EA-R03-103 Wireless Keypad Transmitter
5 · 6 5 · 6 7 · 8 7 · 8
1 · 2 1 · 2 3 · 4 3 · 4
EA-R02-202 Receiver
1. Antenna
2. Access Tab for Programming Switches
Features

Receiver supports up to four transmitters (one pre-programmed
wireless keypad transmitter included with kit)

Re-programmable user code (3 to 7 digits)

Selectable LOCK/UNLOCK pulse duration (250ms or 10sec)

Backlit keypad keys

Two user-configurable lock/unlock relay outputs

One 12V auxiliary relay output.
Specifications
Receiver Power:
Receiver Idle Current:
Receiver Operating Current: 100mA (maximum), no attached devices
Receiver Outputs:
Receiver Operating Temp:
Operating Range:
Operating Frequency:
Coding Type:
Transmitter Power:
J-EA-R03-M_revC
EA-R03 Wireless Keypad Controller Kit
Operating Instructions
9 · 0 9 · 0
12VDC (±10%)
10mA (maximum), no attached devices
three Form C relays, rated 15A at 14VDC
-20 to 80°C
up to 60 feet / 18 meters (open air)
433.92MHz
Fixed Code (24-Bit)
Type CR2032 3VDC battery
visit www.southco.com

Normal Use

The keypad transmitter can be used to lock and unlock the system.

Unlocking the System

Enter the user code (default 1234), then press the 1·2 button. The system
will unlock and the auxiliary output will pulse twice, as shown in the figure
below:
UNLOCK Sequence (pulse set for 250ms)
UNLOCK Sequence (pulse set for 10 seconds)

Locking the System

Enter the user code (default 1234), then press the 3·4 button. The system
will lock and the auxiliary output will pulse once, as shown in the figure
below:
LOCK Sequence (pulse set for 250ms)
LOCK Sequence (pulse set for 10 seconds)

Pulsing Auxiliary Output

Enter the user code (default 1234), then press the 5·6 button. The auxiliary
output will pulse five times, as shown in the following figure:
for latest version of this document Page 1 of 4
