Assembly Manual
Prowise All-in-One Lift

Advertisement

loading
Need help?

Need help?

Do you have a question about the All-in-One Lift and is the answer not in the manual?

Questions and answers

Related Manuals for Prowise All-in-One Lift

Summary of Contents for Prowise All-in-One Lift

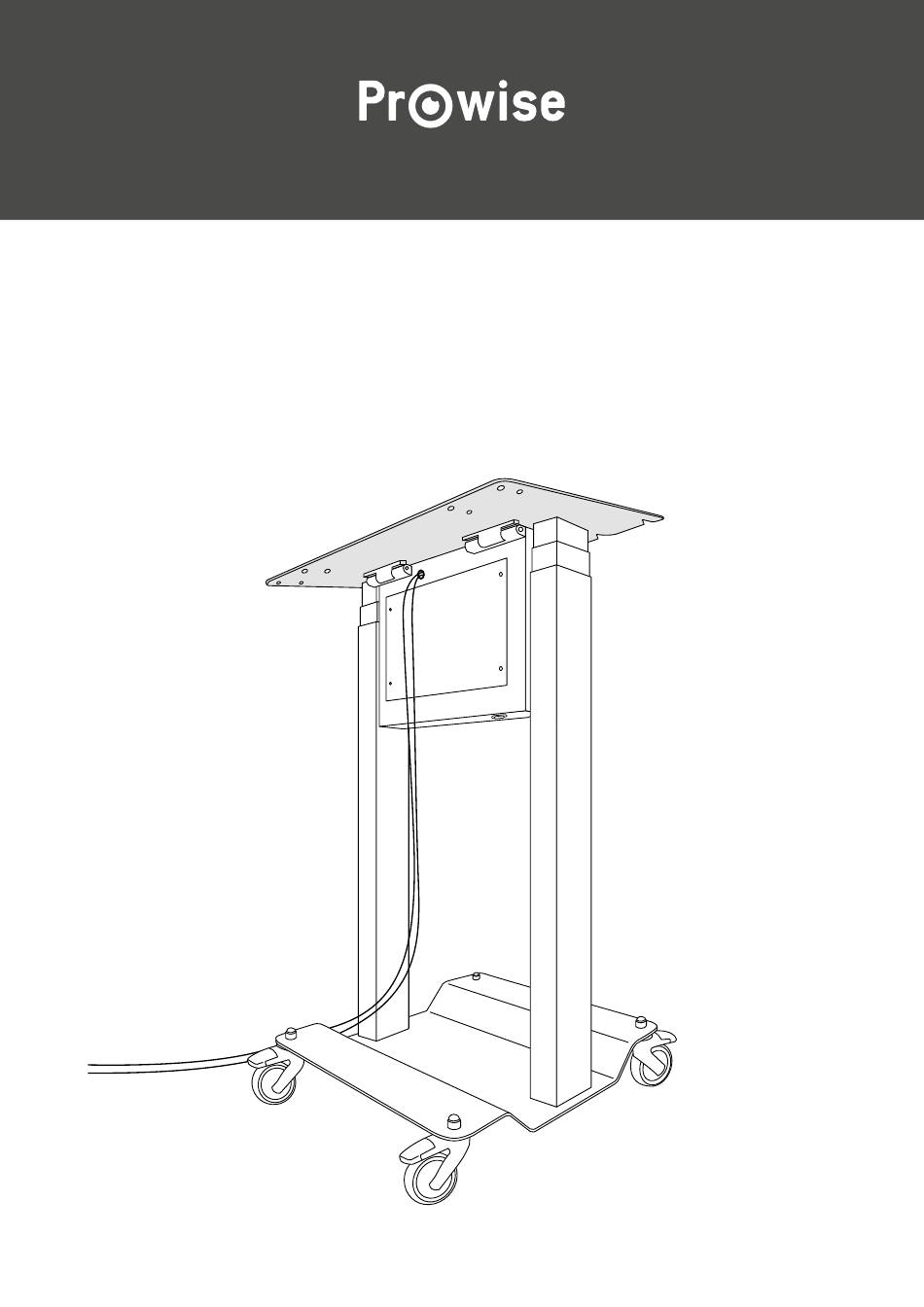

  • Page 1 Assembly Manual Prowise All-in-One Lift...
  • Page 2 Included Please only use supplied parts A • Basebox with 2 height adjustable pillars • 2 x locking screws • 2 x hinge pins • 1 x elevator control • 1 x plug for screen • 1 x plug for power cord B •...
  • Page 3 See back side for required tools Included with touchscreen Please only use supplied parts A • 55” or 65” Multi-touchscreen • 4 x sheet-metal ring M8 • 4 x bolts M8x20...
  • Page 4 Assembly instructions 4 x M6x20 4 x M6x20 4 mm Put the chassis and basebox upside down. Put the basebox upright and connect it to the Assemble the adjustable pillars to the chassis net with the power cord. Place the actuator in (4 M6x20 bolts per pillar).
  • Page 5 See back side for required tools 1 x locking screw 1 x nut (M8) 1 x flat head screw 3 mm Secure the actuator with a flat head screw and Secure the hinge with a locking screw. Make use of an Allen wrench (3 mm). Repeat this for the the nut (M8).

  • Page 6: Required Tools

    • Allen wrench 3 + 4 + 6 mm • Ring spanner M13 10 mm 8 mm 3 + 4 + 6 Prowise B.V. Luchthavenweg 1b 6021 PX Budel The Netherlands Tel. +31 495 49 71 10 info@prowise.com www.prowise.com © Prowise 2015...
