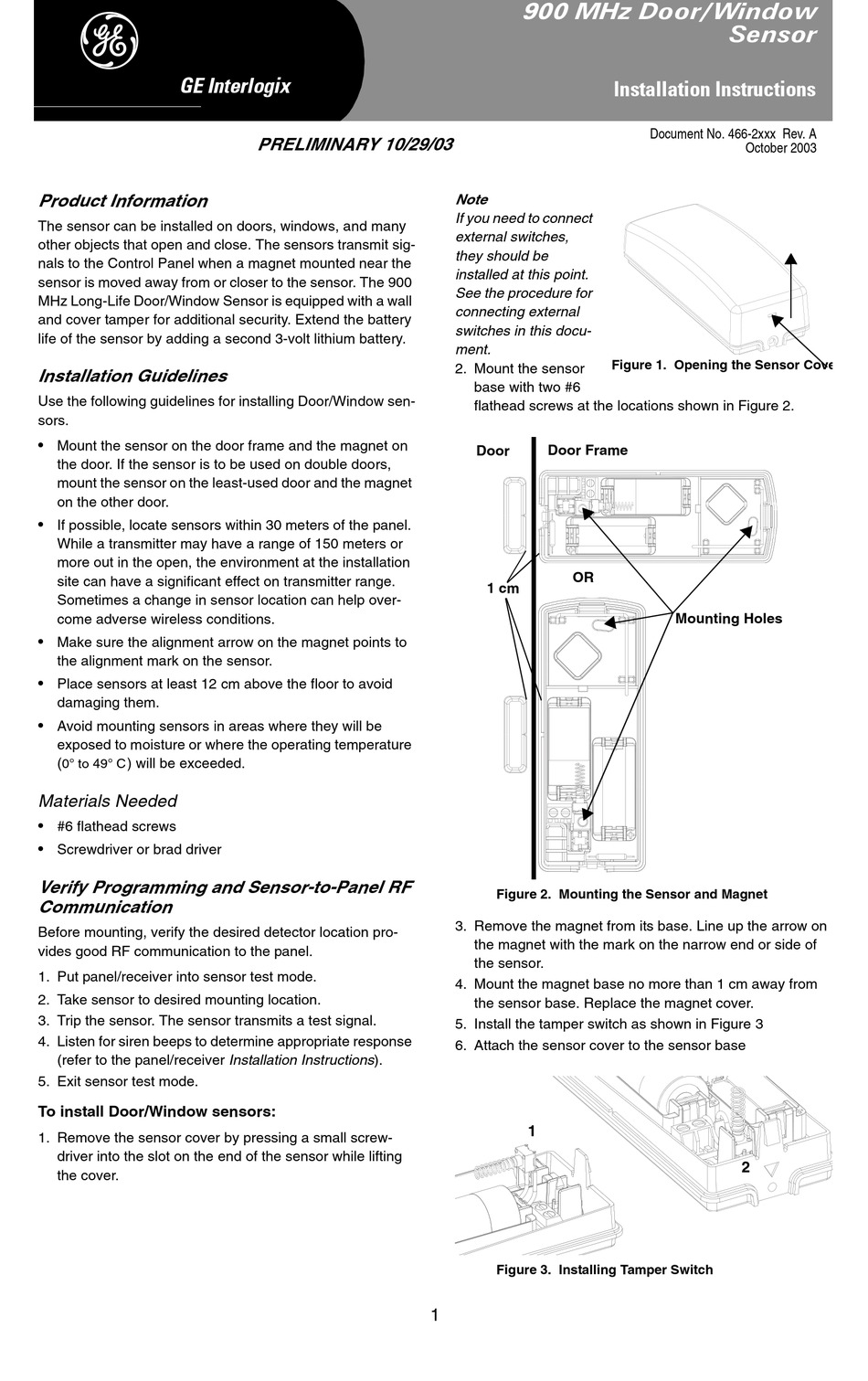

GE 60 Series Installation Instructions

900 mhz door/window sensor.
Hide thumbs


Advertisement

'
*( ,QWHUORJL[
Product Information
The sensor can be installed on doors, windows, and many
other objects that open and close. The sensors transmit sig-
nals to the Control Panel when a magnet mounted near the
sensor is moved away from or closer to the sensor. The 900
MHz Long-Life Door/Window Sensor is equipped with a wall
and cover tamper for additional security. Extend the battery
life of the sensor by adding a second 3-volt lithium battery.
Installation Guidelines
Use the following guidelines for installing Door/Window sen-
sors.
Mount the sensor on the door frame and the magnet on
the door. If the sensor is to be used on double doors,
mount the sensor on the least-used door and the magnet
on the other door.
If possible, locate sensors within 30 meters of the panel.
While a transmitter may have a range of 150 meters or
more out in the open, the environment at the installation
site can have a significant effect on transmitter range.
Sometimes a change in sensor location can help over-
come adverse wireless conditions.
Make sure the alignment arrow on the magnet points to
the alignment mark on the sensor.
Place sensors at least 12 cm above the floor to avoid
damaging them.
Avoid mounting sensors in areas where they will be
exposed to moisture or where the operating temperature
(
) will be exceeded.
0° to 49° C
Materials Needed
#6 flathead screws
Screwdriver or brad driver
Verify Programming and Sensor-to-Panel RF
Communication
Before mounting, verify the desired detector location pro-
vides good RF communication to the panel.
1. Put panel/receiver into sensor test mode.
2. Take sensor to desired mounting location.
3. Trip the sensor. The sensor transmits a test signal.
4. Listen for siren beeps to determine appropriate response
(refer to the panel/receiver Installation Instructions).
5. Exit sensor test mode.
To install Door/Window sensors:
1. Remove the sensor cover by pressing a small screw-
driver into the slot on the end of the sensor while lifting
the cover.
PRELIMINARY 10/29/03
 0+] 'RRU:LQGRZ
Note
If you need to connect
external switches,
they should be
installed at this point.
See the procedure for
connecting external
switches in this docu-
ment.
2. Mount the sensor
base with two #6
flathead screws at the locations shown in Figure 2.
Door Frame
Door
OR
1 cm
Figure 2. Mounting the Sensor and Magnet
3. Remove the magnet from its base. Line up the arrow on
the magnet with the mark on the narrow end or side of
the sensor.
4. Mount the magnet base no more than 1 cm away from
the sensor base. Replace the magnet cover.
5. Install the tamper switch as shown in Figure 3
6. Attach the sensor cover to the sensor base
1
Figure 3. Installing Tamper Switch
1
6HQVRU
,QVWDOODWLRQ ,QVWUXFWLRQV
Document No. 466-2xxx Rev. A
October 2003
Figure 1. Opening the Sensor Cove
Mounting Holes
2

Advertisement

Table of Contents

   Related Manuals for GE 60 Series

   Summary of Contents for GE 60 Series

  • Page 1  0+] 'RRU:LQGRZ 6HQVRU *( ,QWHUORJL[ ,QVWDOODWLRQ ,QVWUXFWLRQV Document No. 466-2xxx Rev. A PRELIMINARY 10/29/03 October 2003 Note Product Information If you need to connect The sensor can be installed on doors, windows, and many external switches, other objects that open and close. The sensors transmit sig- they should be nals to the Control Panel when a magnet mounted near the installed at this point.
  • Page 2: Specifications

    Specifications Model No.: 60-xxx Screw Frequency: 900 MHz Terminal Compatibility: GE Interlogix 900 MHz AM Control Panels/ Receivers Battery Type: 3.0 V, 1300 mAh lithium (1 or 2) Figure 4. External Switch Terminal Recommended Battery: Duracell DL123A, Panasonic CR123A, Sanyo CR123A Typical Standby Current (µA): 3...
