AMF-Bruns
USER MANUAL
PROTEKTOR
SERIES
®

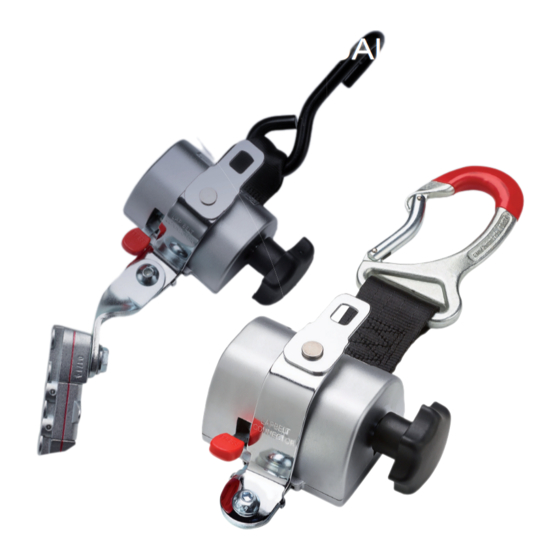

Wheelchair & Occupant Securements
WARNING
Carefully read, understand and follow the instructions provided in this Manual. Keep it in a safe place
for future reference. If you have any doubt whatsoever regarding the use or maintenance of any
AMF-Bruns product, please contact AMF-Bruns. Failure to follow these warnings and instructions
can result in product malfunction and loss of control of the vehicle – potentially causing an accident,
severe personal injury or death to the vehicle occupants, other motorists or pedestrians.
AMF-BRUNS OF AMERICA
www.amfbrunsamerica.com
REPRINTED 5/2018 Part Number: TR-700001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROTEKTOR Series and is the answer not in the manual?

Questions and answers

Summary of Contents for AMF-BRUNS PROTEKTOR Series

  • Page 1 If you have any doubt whatsoever regarding the use or maintenance of any AMF-Bruns product, please contact AMF-Bruns. Failure to follow these warnings and instructions can result in product malfunction and loss of control of the vehicle – potentially causing an accident, severe personal injury or death to the vehicle occupants, other motorists or pedestrians.
  • Page 2 The purpose of this manual is to provide the instructions necessary for optimum use and maintenance of this AMF-BRUNS product. Your AMF-BRUNS product is to be installed and repaired only by a qualifi ed and trained technician. Never attempt any repairs yourself.
  • Page 3 Make sure that the restraints do not come in contact with oil, grease, dust, sand or any other contaminants at any time. For storage, use the AMF-Bruns storage box or storage pouch. 2. Clean the restraints on a regular basis with mild cleaning products and/or water. Never use any caustic or aggressive cleaners.
  • Page 4 9. Protect straps from sharp edges and corners. 10. If proper attachment and securement of a particular style of wheelchair cannot be accomplished, or if you have any doubt whatsoever, contact your dealer or AMF-Bruns. NOTICE Never use the cam buckle straps on all four points of attachment to the wheelchair frame. They should be used only as front tie downs.
  • Page 5 All dimensions are based on common wheelchair sizes. Exceptionally large or small wheelchairs may require different anchorage spacing. If you have any doubts whatsoever, DO NOT USE THE SYSTEM. See your Dealer or contact AMF-Bruns for advice. AMF-BRUNS USER MANUAL...
  • Page 6 • Tie down anchorage should be installed as shown in Figure 1. Figure 3 STEP 3 HOW TO FIT THE BELTS TO THE FLOOR Figure 4 STEP 4 HOW TO TIGHTEN AND RELEASE THE BELTS Figure 5 AMF-BRUNS USER MANUAL...
  • Page 7 Refer to Figures 6, 7 and 8. AMF-Bruns’ restraints are designed to bear upon the bony structure of the body and shall be worn low and snug across the front of the pelvis, with the junction between the lap and shoulder belts located near the passenger’s hip.
  • Page 8 Figure 8 PELVIC BELT RESTRAINTS SHOULD MAKE FULL RESTRAINTS SHOULD NOT BE HELD AWAY FROM CONTACT ACROSS THE FRONT OF THE BODY BODY BY WHEELCHAIR COMPONENTS SUCH AS NEAR THE JUNCTION OF THE THIGH AND PELVIS. ARM RESTS OR WHEELS. STEP 6 POSTURAL BELT When necessary, a postural belt can be used to support the wheelchair occupant as shown in Figure 9.
