Canon Additional Finisher Tray-A1 Service Bulletin

Hide thumbs


Advertisement

Canon
Model:
Additional Finisher Tray-A1
Location:
OPTION TRAY ASSEMBLY
Subject:
Preventing additional finisher tray from being detached
Detaile:
<Symptom>
The additional finisher tray is detached/The error code E540 is indicated
<Cause>
The additional finisher tray lifts the slide guide when coming up. At this time the slide guide inclines, and is
warped toward the direction A (see the photo below) together with the upper height panel. Due to this, the
additional finisher tray comes free from the L-shape rim of the slide guide and gets on the rim.
As a result, the additional finisher tray bumps into the slide guide when coming down, leading to detachment
of the additional finisher tray or the error code E540-0001 (upper tray ascent/descent motor clock error).
Service Bulletin
Issued by Canon Europa N.V.

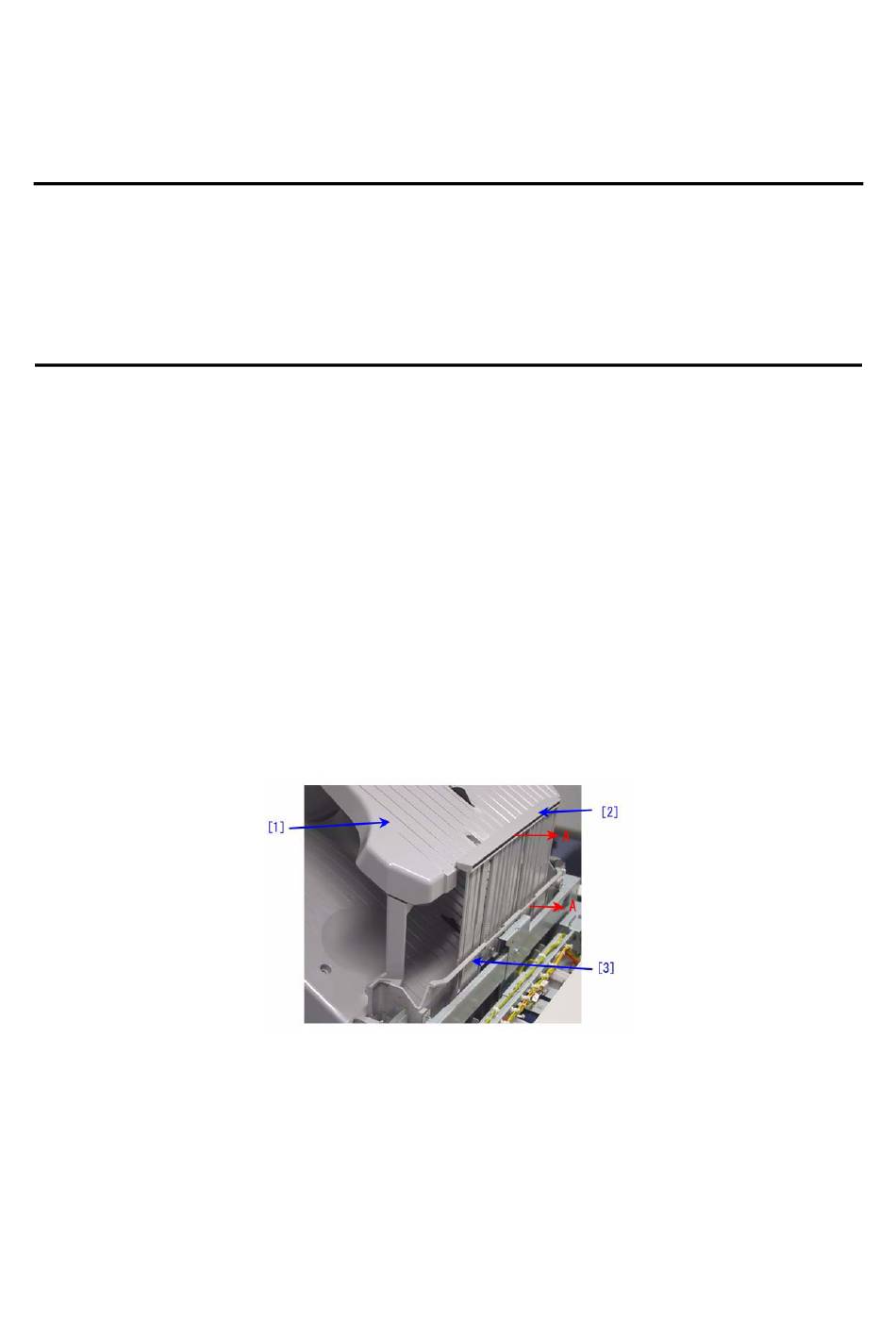

F-1
[1] Additional Finisher Tray
[2] Slide Guide
[3] Upper Height Panel
Ref No.:
Acc-397
(F3-T01-00W-10027-01)
Date:
25-06-04
COPIER
(1/2)

Advertisement

Table of Contents
loading

  Summary of Contents for Canon Additional Finisher Tray-A1

  • Page 1 Canon Service Bulletin COPIER Issued by Canon Europa N.V. Model: Ref No.: Additional Finisher Tray-A1 Acc-397 (F3-T01-00W-10027-01) Date: 25-06-04 Location: OPTION TRAY ASSEMBLY Subject: Preventing additional finisher tray from being detached Detaile: <Symptom> The additional finisher tray is detached/The error code E540 is indicated <Cause>...
  • Page 2 Acc-397 <Factory Measures> The slide guide stopper to prevent the upper height panel from being warped is included with the additional finisher tray A1 product. (Attach the slide guide stopper when installing the additional finisher tray A1.) Service Work: Attach the slide guide stopper to the finisher frame when either of the foregoing symptoms occurs. For attaching procedure, see the attached file "Slide Guid Stopper Installation Procedure".
  • Page 3 Slide Guid Stopper Installation Procedure 1) In the case of the Finisher-Q1/R1, open the front 4) In the case of the Saddle Finisher-Q2/R2, detach door [1], remove the 3 screws [2], and detach the the cable cover [1], remove the 6 screws [2], and front cover [3].
  • Page 4 6) Remove the screw [1], and detach the slide guide 8) Wipe off the extra lubricant with lint-free paper, stopper [2]; then, slide the slide guide [3] upward to so that only a slight amount of lubricant is left on detach.
