ActionTec GS204AD9-01 User Manual

ActionTec GS204AD9-01 User Manual

Wireless-ready dsl gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

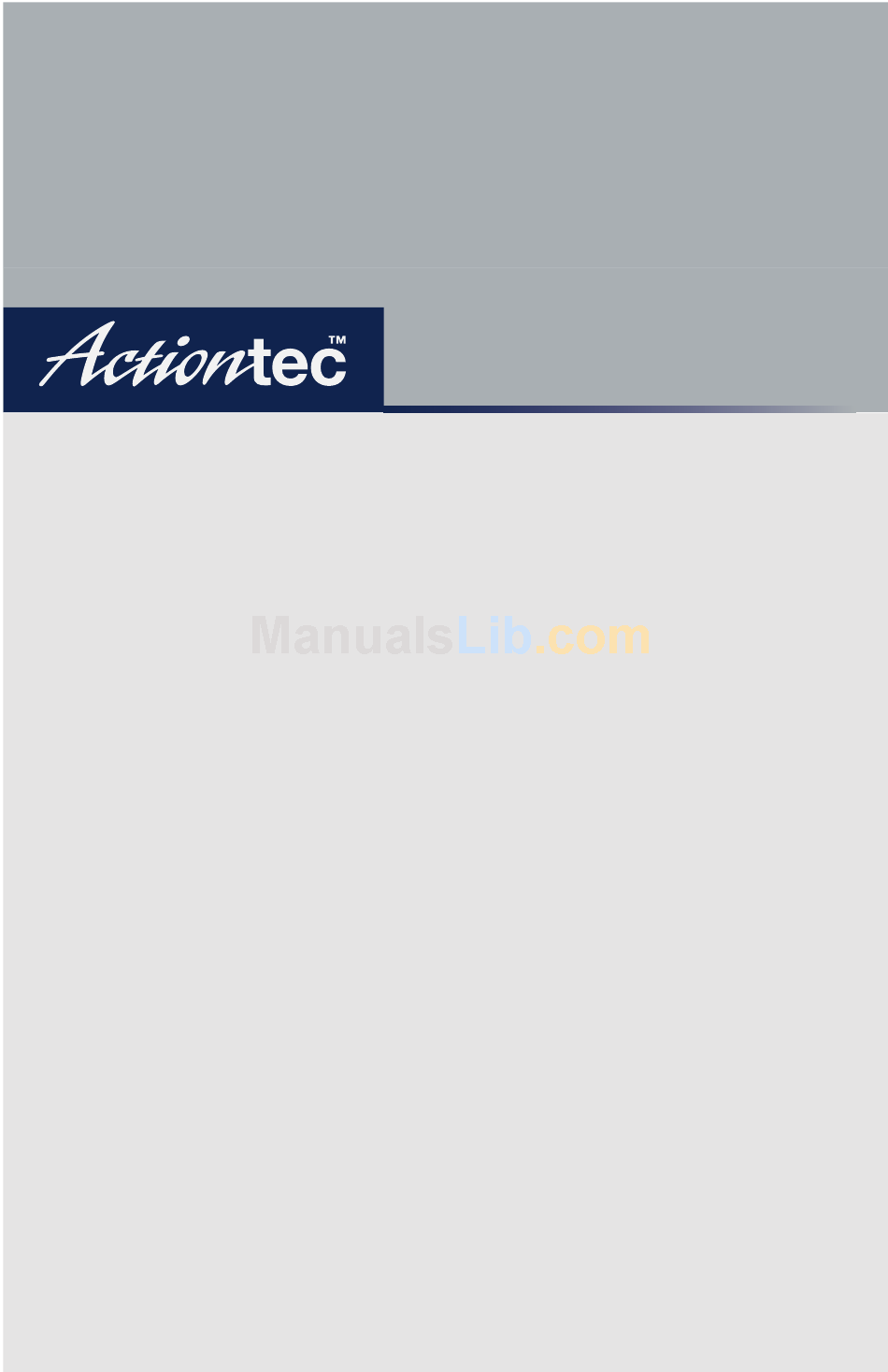

Wireless-Ready
DSL Gateway
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS204AD9-01 and is the answer not in the manual?

Questions and answers

Related Manuals for ActionTec GS204AD9-01

Summary of Contents for ActionTec GS204AD9-01

  • Page 1 Wireless-Ready DSL Gateway User Manual...

  • Page 2: Table Of Contents

    Table of Contents 1 Introduction Package Contents Minimum System Requirements Technical Support 2 Setting Up the Gateway Warning! Connecting a Computer to the Gateway Installing Filters Setting Up the DSL Connection 3 Using Qwest DSL Connecting to the Internet Disconnecting from the Internet 4 Basic Setup Basic Setup Gateway Features...
  • Page 3 Actiontec Wireless-Ready DSL Gateway User Manual 6 Utilities Web Activity Log DSL Settings Restore Default Settings Upgrade Firmware 7 Building a Network Ethernet Wireless 8 Troubleshooting A Reference Locating Computer Information Locating Windows Operating System Files Wiring Information B Setting Up Static IP Address Windows 98 and 98 SE Windows Me Windows 2000...

  • Page 4: Introduction

    Introduction Thank you for purchasing the Actiontec Wireless-Ready Gateway. The Gateway is the simplest way to connect a number of computers to a single high-speed broad- band connection. This easy-to-use product is perfect for the office or small busi- ness. If you want to take your computing to the next level, the Actiontec Wireless- Ready Gateway is sure to be one of the keys to your success.

  • Page 5: Technical Support

    Actiontec Wireless-Ready DSL Gateway User Manual Internet Explorer or higher ( recommended) network protocol installed on each computer TCP/IP Technical Support Self Help To obtain answers to configuration questions, visit the Qwest support page at this address: http://www.qwest.com/dsl/customerservice/Actiontec1520.html A help page is also available on the main page of the Actiontec interface.
  • Page 6 Advanced Feature Support Qwest DSL technical support provides the following advanced feature support for the Actiontec DSL Gateway. Contact Qwest at Enabling Website Blocking Enabling Pass-Through Enabling/Disabling Firewall configuration Changing the LAN IP Enabling Services Blocking Enabling/Disabling DHCP feature These features are supported in the above features within the network ( Wired/Wireless Upgrade Wired and wireless upgrade installation support is available from Actiontec free...
  • Page 7 Actiontec Wireless-Ready DSL Gateway User Manual Non-Actiontec-provided network card/Ethernet cable installation, configu- ration, or troubleshooting Commercial firewall software configuration contact the Actiontec Pay For Support Center at working support is provided for a fee of ture support includes: Port Forwarding (Static Static Routing Address Cloning Third-party vendor wireless equipment configuration...

  • Page 8: Setting Up The Gateway

    Setting Up the Gateway The instructions that follow parallel the steps contained in the Actiontec Installation ™ Buddy , which provides a visual guide to setting up the Gateway. It is recommended the user run the Installation Buddy first, before attempting any other procedures. To set up the Gateway, it must be connected to a computer, and then configured.

  • Page 9: Connecting A Computer To The Gateway

    Actiontec Wireless-Ready DSL Gateway User Manual Connecting a Computer to the Gateway Connecting a computer to the Gateway involves three basic steps: initial setup, plugging in the Gateway’s Power Cord, and connecting the Gateway to the com- puter via Ethernet or USB cable. To connect this initial computer to the Gateway using an Ethernet cable, follow the procedure that begins below.
  • Page 10 Chapter 2 Setting Up the Gateway 3. The next window appears. Read the onscreen information, then get the “Terms and Agreement” document from the White Bag and read it as well. Then, select I accept this agreement and click Next. 4.
  • Page 11 Actiontec Wireless-Ready DSL Gateway User Manual 6. When the next window appears, read the information concerning home alarm systems, then click Next. 7. Another window concerning home alarms appears. Read the onscreen infor- mation, then click Next. 8. When the next window appears, read the information concerning automatic water meters, then click Next.
  • Page 12 Chapter 2 Setting Up the Gateway 9. In the next window, read the instructions regarding the items needed to set up the Gateway, then click Next. 10. As shown in the next window, get the Gateway from the DSL Quick Start Kit, then click Next.
  • Page 13 Actiontec Wireless-Ready DSL Gateway User Manual 12. When the next window appears, plug the larger end of the Power Cord into a Power Outlet, then click Next. 13. When the next window appears, confirm the Power Light on the Gateway glows steadily green.
  • Page 14 Chapter 2 Setting Up the Gateway 15. When the next window appears, get the Black DSL Cable and plug one end of it into the DSL Port on the back of the Gateway, then click Next. 16. Another window appears. Plug the other end of the Black DSL Cable into one of the two ports on the Splitter, then click Next.
  • Page 15 Actiontec Wireless-Ready DSL Gateway User Manual 17. When the next window appears, confirm the Power and Internet Lights on the Gateway glow steadily green. Click Next. Note: If the Power and Internet Lights on the Gateway are not solid green, check all connections to the Gateway. If all connec- tions are plugged in properly, call Qwest DSL Technical Support at 1-800-247-7285.
  • Page 16 Chapter 2 Setting Up the Gateway 19. When the next window appears, plug the other end of the Yellow Ethernet Cable into an Ethernet Port on the back of the computer. Click Next. Note: An Ethernet port looks similar to a phone jack, but is slightly larger.
  • Page 17 Actiontec Wireless-Ready DSL Gateway User Manual Connecting Via USB 1. Insert Actiontec Installation Buddy CD-ROM in the CD-ROM drive of the computer. The Installation Buddy will start automatically. Wait until the fol- lowing screen appears, read the onscreen instructions, then click Next. 2.
  • Page 18 Chapter 2 Setting Up the Gateway 4. The next window appears. Select USB, then click Next. 5. The next window appears. Read the onscreen instructions, then click Next. Note: You must have your Welcome Letter (ISP Worksheet) to complete this installation. If you have not received this docu- ment, contact your ISP immediately.
  • Page 19 Actiontec Wireless-Ready DSL Gateway User Manual 7. Another window concerning home alarm systems appears. Read the onscreen information, then click Next. 8. When the next window appears, read the information concerning automatic water meters, then click Next. 9. In the next window, read the instructions regarding the items needed to set up the Gateway, then click Next.
  • Page 20 Chapter 2 Setting Up the Gateway 10. As shown in the next window, get the Gateway from the DSL Quick Start Kit, then click Next. 11. The next window appears. Plug the smaller end of the Power Cord into the Black Port on the back of the Gateway, then click Next.
  • Page 21 Actiontec Wireless-Ready DSL Gateway User Manual 13. When the next window appears, confirm the Power Light on the Gateway glows steadily green. Click Next. 14. The following window appears. Get the Phone Line Splitter from the DSL Quick Start Kit and plug it into the Phone Jack closest to the computer, then click Next.
  • Page 22 Chapter 2 Setting Up the Gateway 16. Another window appears. Plug the other end of the Black DSL Cable into one of the two ports on the Splitter, then click Next. 17. When the next window appears, confirm the Power and Internet Lights on the Gateway glow steadily green.
  • Page 23 Actiontec Wireless-Ready DSL Gateway User Manual 18. In the next window, get the Purple USB Cable from the Quick Start Kit and plug the square end of it in the Purple Port on the back of the Gateway. Click Next. 18.

  • Page 24: Installing Filters

    Chapter 2 Setting Up the Gateway Installing Filters Filters allow the user to talk on the phone while online. All phones and other devices (answering machines, fax machines, etc.) using the same line (i.e., using the same phone number) as the DSL line must have a filter installed. To install a filter, follow these instructions: 1.
  • Page 25 Actiontec Wireless-Ready DSL Gateway User Manual 3. When the following window appears, get the Clear Bag, take out the phone fil- ters, then click Next. Caution: Do not install a filter in the phone jack used by the black DSL cable. 4.

  • Page 26: Setting Up The Dsl Connection

    Chapter 2 Setting Up the Gateway 6. When the next window appears, read the onscreen instructions on how to connect the phone filters, then click Next. The phone filters are installed. Click Next. to go to “Setting Up the DSL Connection,”...
  • Page 27 Actiontec Wireless-Ready DSL Gateway User Manual 2. If PPPoE or PPPoA was selected, the following window appears. Enter the User Name and Password in the proper text boxes, or, if the ISP does not require them, click the box next to “My ISP does not require a User Name or Password.”...
  • Page 28 Chapter 2 Setting Up the Gateway 5. When the next window appears, enter the IP Address, Subnet, Gateway, DNS 1, and DNS 2 information in the proper text boxes. This information should be provided by the ISP. When finished, click Next. 6.
  • Page 29 Actiontec Wireless-Ready DSL Gateway User Manual 8. In the next window, read the onscreen information about computer security, then click Next. 9. In the last window, read the onscreen information regarding additional refer- ence material on the CD-ROM, then click Finish. The Gateway has been successfully configured.

  • Page 30: Using Qwest Dsl

    Using Qwest DSL Qwest DSL operates over home or business phone lines equipped with Qwest DSL service. For this reason, the Qwest DSL connection is not portable; it can’t be accessed while away from home or business. To connect while traveling, ask the ISP about a dial-up account.
  • Page 31 Actiontec Wireless-Ready DSL Gateway User Manual...

  • Page 32: Basic Setup

    Basic Setup This chapter is a guide through a basic configuration of the Gateway, including how to connect the Gateway to the ISP, as well as an overview of the Gateway’s LEDs and switches. To complete the basic setup, the user will need the Welcome Letter (ISP Worksheet).
  • Page 33 Actiontec Wireless-Ready DSL Gateway User Manual 3. Follow the instructions in the “Set Up/Configuration” screen, then click Begin Basic Setup. 4. In the next window, follow the onscreen instructions, then click Next. 5. In the next window, select the type of connection by clicking on the circle next to PPPoA or PPPoE.
  • Page 34 6. Enter the User Name, Password, and Static IP provided by the ISP in the “DSL Broadband Connection - PPP” screen. Click Next. Note: If the ISP uses a connection method other than PPPoE (DHCP or Static IP, for example) see “Advanced Setup” to con- nect the Gateway.

  • Page 35: Gateway Features

    Actiontec Wireless-Ready DSL Gateway User Manual Gateway Features This section contains a quick description of the Gateway’s lights and switches. Power Light - The Power Light displays the Gateway’s current status. If the Power Light glows steadily green, the Gateway is receiving power and fully operational. When the Power Light is rapidly flashing, the Gateway is initializing.

  • Page 36: Advanced Setup

    Advanced Setup This section contains information concerning advanced configuration, such as wireless settings, remote management, and Web site blocking. Accessing Advanced Setup To access the Advanced Setup configuration screens, follow these instructions: 1. Open the Web browser. In the address bar enter: then press Enter on the keyboard.

  • Page 37: Using Advanced Setup

    Actiontec Wireless-Ready DSL Gateway User Manual 4. In the next screen, read the recommendations. To perform an advanced setup on the Gateway, click Begin Advanced Setup. 5. The “Configuring the Advanced Settings” screen appears. To check all the set- tings, or if unsure of which settings to modify, select Next. To modify a specif- ic configuration, click on its name in the menu bar on the left.

  • Page 38: Wan Ip Address

    Note: If changes have been made to one or more Advanced Setup settings and Save and Restart has not been clicked before leaving the Advanced Setup screens (i.e., switching to Utilities or Basic Setup), all Advanced Setup settings changes will be lost. WAN IP Address Selecting Address in the “Advanced Configuration”...
  • Page 39 Actiontec Wireless-Ready DSL Gateway User Manual Transparent Bridging Select this option to use the Gateway as a transparent bridge only if directed to do so by your ISP. This option should only be used if the Gateway is being used as a Modem to connect one computer to the Internet via a DSL connection.
  • Page 40 Chapter 5 Advanced Setup Note: Host and domain name information may also be accessed from the computer originally connected to the DSL modem. Specify a Static IP Address Select this option if assigned a static (specific) Address by the Internet Service Provider ( .

  • Page 41: Wireless Settings

    Actiontec Wireless-Ready DSL Gateway User Manual Unnumbered/VIP Mode If the user has purchased a block of static IP addresses, select Unnumbered Mode by clicking on the box. Then, enter the IP address and Subnet Mask assigned to the Gateway in the “Gateway Address” and “Unnumbered Subnet Mask” text boxes below “Unnumbered IP Address.”...
  • Page 42 Channel Channel assigns the frequency band at which the Gateway communicates. In the United States, use channels 1-11. (The factory default value is set to 1.) Wireless Equivalent Privacy Wireless Equivalent Privacy ( standard to provide limited data security over wireless networks. The Gateway offers three levels of : Off, 64-bit, and 128-bit.
  • Page 43 Actiontec Wireless-Ready DSL Gateway User Manual 128-bit WEP 128-bit requires one key of 13 hexadecimal pairs. A hexadecimal digit con- sists of alphanumeric characters ranging from 0-9 or A-F. An example of a 128-bit key is: 3D-44-FE-6C-A1-EF-2E-D3-C4-21-74-5D-B1. To create a 128-bit key, enter 13 hexadecimal digit pairs in the Key text box.

  • Page 44: Lan Ip Address

    LAN IP Address Selecting Address in the “Advanced Configuration” screen generates the LAN IP “ Address” screen. The value in the LAN IP address of the Gateway as seen on the network. address of the Gateway can be modified, but Actiontec recommends LAN IP keeping the default factory setting (192.168.0.1).
  • Page 45 Actiontec Wireless-Ready DSL Gateway User Manual Actiontec strongly recommends leaving the Server option is Off, ensure the the same subnet as the address of the Gateway. For more information, see “ Server Configuration” on page 42. DHCP DHCP Server Configuration Clicking Next in the “...

  • Page 46: Services Blocking

    Server 2 - the secondary Provider ( . If the ISP) mation, enter it here. If not, leave the text box intact. After changing settings, click Next or Back to continue, or Save and Restart to make all changes permanent. Services Blocking Selecting Services Blocking in the “Advanced Configuration”...

  • Page 47: Website Blocking

    Actiontec Wireless-Ready DSL Gateway User Manual Netmeeting To allow the computers on the Gateway’s network to access Netmeeting, enter the Netmeeting IP address (LAN IP address using Netmeeting) in the IP text box, then select On. If Netmeeting is not needed, select Off. After changing settings, click Next or Back to continue, or Save and Restart to make all changes permanent.

  • Page 48: Remote Management

    After changing settings, click Next or Back to continue, or Save and Restart to make all changes permanent. Remote Management Selecting Remote Management in the “Advanced Configuration” screen generates the “Remote Management” screen. Remote Management allows access to the Gateway through the Internet via another computer. Actiontec recommends leav- ing the Remote Management Off (the factory default setting).

  • Page 49: Port Forwarding

    Actiontec Wireless-Ready DSL Gateway User Manual Port Forwarding Selecting Port Forwarding in the “Advanced Configuration” screen generates the “Port Forwarding” screen. Port forwarding allows certain programs to bypass the Gateway’s built-in firewall, allowing access to parts of the network (for hosting a Web or ftp server, for example).

  • Page 50: Dmz Hosting

    Chapter 5 Advanced Setup In this screen, the user can allow only certain IP addresses to access forwarded ports. Enter the port range of the forwarded ports in the “Remote IP Port Range” text boxes, enter the IP address to be allowed access in the “Remote IP Address” text box, then click “Add.”...

  • Page 51: Firewall

    Actiontec Wireless-Ready DSL Gateway User Manual hosting is used to support online gaming and Internet conferencing services. These programs usually require multiple open ports, making the network accessi- ble from the Internet. hosting symbolically places the host computer outside of the Gateway’s network. Access to the network resources while hosting is active is blocked.

  • Page 52: Dynamic Routing

    Dynamic Routing Selecting Dynamic Routing in the “Advanced Configuration” screen generates the “ ” screen. Dynamic routing allows the exchange of routing tables Dynamic Routing between routers. This relieves the user of having to set up static routes for each router. If a router is set up behind the Gateway in the network configuration, consult the documentation that came with the router to see what kind of Dynamic Routing is required, then select the needed option.

  • Page 53: Static Routing

    Actiontec Wireless-Ready DSL Gateway User Manual After changing settings, click Next or Back to continue, or Save and Restart to make all changes permanent. Static Routing Selecting Static Routing in the “Configuring the Advanced Settings” screen gener- ates the “Static Routing” screen. Static Routing allows the user to manually create routes to other networks connected to the Gateway.

  • Page 54: Mac Address Cloning

    Chapter 5 Advanced Setup MAC Address Cloning Selecting Address Cloning in the “Advanced Configuration” screen generates the “ Address Cloning” screen. A (media access control) address is an identifier unique to every networkable device. Some Internet Service Providers require a address to validate a computer’s permission to be on their net- ISP) work.

  • Page 55: Status

    Actiontec Wireless-Ready DSL Gateway User Manual Status After configuring the Gateway, settings can be viewed by selecting Status in the Main Menu. The “Current Status” screen appears, displaying many of the Gateway’s settings. No settings (other than connecting or disconnecting from the Internet) can be changed from the Current Status screen.
  • Page 56 Chapter 5 Advanced Setup Routing Table Selecting Routing Table generates the “Routing Table” screen. This screen displays an overview of the Gateway’s routes. These routes are the pathways used to trans- fer information to and from the Internet. When disconnected from the Internet, only one route is displayed;...
  • Page 57 Actiontec Wireless-Ready DSL Gateway User Manual WAN Status Selecting WAN Status generates a “Current Status” screen. This screen displays on overview of the Gateway’s WAN (Wide Area Network) connection. PPP Status There are five PPP Status categories: Status, User Name, Session Time, Packets Sent, and Packets Received.
  • Page 58 Chapter 5 Advanced Setup Packets Sent - Displays the number of PPP packets sent throught the WAN port of the Gateway. Packets Received - Displays the number of PPP packets received through the WAN port of the Gateway. DSL Status There are eight DSL Status categories: VPI, VCI, DSL Mode, Connection Status, Speed, ATM QoS class, Near End CRC Errors (I/F), and Far End CRC Errors (I/F).
  • Page 59 Actiontec Wireless-Ready DSL Gateway User Manual LAN Status Selecting LAN Status generates the “Lan Port Status” screen. This screen displays on overview of the Gateway’s LAN (Local Area Network) port connections. Ethernet There are three Ethernet categories: Link Speed, Packets Sent, Packets Received Link Speed - Displays the link speed of the Ethernet connection.
  • Page 60 Wireless There are two Wireless categories: Packets Sent and Packets Received Packets Sent - Displays the number of packets (amount of data) sent over the Wireless connection. Packets Received - Displays the number packets (amount of data) received over the Wireless connection. Active User List Selecting Active User List generates the “Active User List”...
  • Page 61 Actiontec Wireless-Ready DSL Gateway User Manual...

  • Page 62: Utilities

    Utilities To access the Gateway’s utilities select Utilities from the “Main Menu” screen. The “Utilities” screen appears. From here, the Web activity log can be viewed, the settings changed, the Gateway’s factory default settings restored, and the Gateway’s firmware upgraded. Web Activity Log The Web Activity Log provides information about the Web sites each computer on the Gateway’s network has visited.

  • Page 63: Dsl Settings

    Actiontec Wireless-Ready DSL Gateway User Manual DSL Settings To access Settings, select Gateway’s , and Mode settings can be changed from here. Actiontec recom- mends not changing these values without consulting the Internet Service Provider ISP) Restore Default Settings To restore the Gateway to its factory default settings, select Restore Default Settings from the “Utilities”...

  • Page 64: Upgrade Firmware

    Upgrade Firmware Selecting Upgrade Firmware in the “Utilities” screen generates the “Upgrade Firmware” screen. Actiontec periodically posts firmware upgrades to enhance the Gateway’s capabilities. To upgrade the Gateway’s firmware: 1. Click Upgrade Here in the “Upgrade Firmware” window. 2. The QWEST upgrade Web page will appear. Follow the onscreen instructions to download and install the Actiontec 1520 Gateway firmware.
  • Page 65 Actiontec Wireless-Ready DSL Gateway User Manual...

  • Page 66: Building A Network

    Building a Network Other computers can be connected to the Gateway to form a network. The net- work computers can be connected to the Gateway in three ways: Ethernet, USB, or wirelessly. Ethernet 1. Insert the Actiontec Installation Buddy CD-ROM in the CD-ROM drive of the computer.
  • Page 67 Actiontec Wireless-Ready DSL Gateway User Manual 3. The next window appears. Select Wired, then click Next. 4. The next window appears. Select Ethernet, then click Next. 5. When the next window appears, get the Yellow Ethernet Cable from the Quick Start Kit, then click Next.
  • Page 68 Chapter 7 Building a Network 6. When the next window appears, plug one end of the Yellow Ethernet Cable into one of the Yellow Ports on the back of the Gateway, then click Next. 7. Another window appears. Plug the other end of the Yellow Ethernet Cable into an Ethernet port on the back of the computer, then click Next.

  • Page 69: Usb

    Actiontec Wireless-Ready DSL Gateway User Manual 9. In the next window, the Installation Buddy checks the configuration of the Gateway. A congratulations window appears. The Gateway is connected to a computer via Ethernet. 1. Insert Disk 1 (Installation Buddy CD) in the CD-ROM drive of the comput- er.
  • Page 70 Chapter 7 Building a Network 2. The next window appears. Read the instructions, select Additional Computer by clicking on the check box, then click Next. 3. The next window appears. Select Wired, then click Next. 4. The next window appears. Select USB, then click Next.
  • Page 71 Actiontec Wireless-Ready DSL Gateway User Manual 5. When the next window appears, get the Purple USB Cable from the Quick Start Kit, then click Next. 6. When the next window appears, plug the square end of the Purple Cable into the Purple USB Port on the back of the Gateway, then click Next.

  • Page 72: Wireless

    Chapter 7 Building a Network Note: An Ethernet port looks similar to a phone port, but is slightly bigger. 8. In the next window, the Installation Buddy checks the configuration of the Gateway. A congratulations window appears. The Gateway is connected to a computer via USB.
  • Page 73 Actiontec Wireless-Ready DSL Gateway User Manual 2. The next window appears. Read the instructions, select Additional Computer by clicking on the check box, then click Next. 3. The next window appears. Select Wireless, then click Next. 4. The next window appears. Follow the instructions and insert the Connection 1- 2-3 CD into the computer’s CD-ROM drive to set up the wireless connection.

  • Page 74: Troubleshooting

    Troubleshooting This chapter contains a list of problems that may be encountered while using the Gateway, and techniques to try and overcome the problem. Note that these tech- niques may not solve the problem. If you need additional help, contact the Qwest Technical Support at LAN Connection Failure...
  • Page 75 Actiontec Wireless-Ready DSL Gateway User Manual Additionally, the “IP Address” entry should be on the 192.168.0.X network (with “x” defining a range from 2 though 255). If the Ethernet adapter is showing an incorrect IP address, click Release, which sets all values back to 0 (zero). Then, click Renew (this process may take a few seconds).
  • Page 76 Chapter 8 Troubleshooting Time out error occurs when entering a URL or IP Address Verify all the computers are working properly. Ensure the settings are correct. Ensure the Gateway is on and connected properly. Verify the Gateway’s settings are the same as the computer by clicking Status in the “Main Menu”...
  • Page 77 Actiontec Wireless-Ready DSL Gateway User Manual...

  • Page 78: A Reference

    Reference This appendix contains information about various topics, including accessing information about your Windows computer and wiring under special circum- stances. Locating Computer Information The following procedure is valid for Windows 1. From the desktop, right-click on My Computer. 2. Select Properties from the menu that appears. 3.

  • Page 79: Locating Windows Operating System Files

    Actiontec Wireless-Ready DSL Gateway User Manual Locating Windows Operating System Files If the operating system files reside on the hard drive of the computer, follow the instructions below to locate them. If the files are not on the hard drive, they must be loaded from the installation disks.
  • Page 80 4. Click the down arrow next to the “Look in” text box and select My Computer from the list that appears. Click Search Now. 6a. Windows Me: When the search is complete, note the directory path that appears most often in the “In Folder” column. For example: C:\WINDOWS \OPTIONS\INSTALL 6b.

  • Page 81: Wiring Information

    Actiontec Wireless-Ready DSL Gateway User Manual Windows Me, 2000 1. From the desktop, click Start. 2. Select Search, then For Files and Folders. 3. The “Search Results” window appears. In the panel at left titled “What do you want to search for?”, click All files and folders. 4.
  • Page 82 easiest way to do this is to purchase a pair of two-line modular adapters, a line- cord coupler, and some short lengths of phone cable, available at any telephone supply retailer. ☞ Note: Do not purchase a 1-line modular adapter or line splitter. Installing either of these items results in two phone jacks on Line 1, and no access to Line 2.
  • Page 83 Actiontec Wireless-Ready DSL Gateway User Manual Automatic Water Meter If your home or office has an automatic water meter that uses the same phone line as the Qwest DSL Gateway, you must put a DSL Phone Filter on the water meter. Call your water company for help when installing the DSL Phone Filter on your water meter.

  • Page 84: B Setting Up Static Ip Address

    Setting Up Static IP Address To communicate with the Gateway from a computer on the network (to use the Web Configuration Utility, for example), the user may have to switch the IP address settings from computer and the Gateway are on the same subnet. To set up static on a computer, select the operating system and follow the instructions.
  • Page 85 Actiontec Wireless-Ready DSL Gateway User Manual 3. Another menu appears. Select Control Panel. 4. When the “Control Panel” window appears, double-click Network.
  • Page 86 Appendix C Setting Up Static IP Address 5. The “Network” window appears. In the "The following network components are installed" list box, locate and double-click 6. The “ Properties” window appears. Select TCP/IP 7. In the Address tab, make sure the the circle next to “Specify an is selected.

  • Page 87: Windows Me

    Actiontec Wireless-Ready DSL Gateway User Manual 9. Enter the following numbers in the “Subnet mask” text box: 255.255.255.0 Do not include the periods; they are automatically entered. 10. Click . The Properties window disappears. TCP/IP 11. In the Network window, click 12.
  • Page 88 Appendix C Setting Up Static IP Address 3. Another menu appears. Select Control Panel. 4. When the “Control Panel” window appears, double-click Network.
  • Page 89 Actiontec Wireless-Ready DSL Gateway User Manual 5. The “Network” window appears. In the “The following network components are installed” list box, locate and double-click 6. The “ Properties” window appears. Click TCP/IP 7. In the Address tab, make sure the the circle next to “Specify an is selected.

  • Page 90: Windows 2000

    Appendix C Setting Up Static IP Address 9. Enter the following numbers in the “Subnet mask” text box: 255.255.255.0 Do not include the periods; they are automatically entered. 10. Click . The TCP/IP 11. If there is a check in the box next to “Detect connection to network media,” click on it to uncheck the box.
  • Page 91 Actiontec Wireless-Ready DSL Gateway User Manual 3. Another menu appears. Select Control Panel. 4. When the “Control Panel” window appears, double-click Network and Dial- up Connections.
  • Page 92 Appendix C Setting Up Static IP Address 5. In the “Network and Dial-up Connections” window, double-click Local Area Connection. A number may be displayed after the Local Area Connection. If there is more than one Local Area Connection listed, locate the one that corre- sponds to the network card installed in the computer by finding the name of the network card in the Device Name column.
  • Page 93 Actiontec Wireless-Ready DSL Gateway User Manual 7. The “Local Area Connection Properties” window appears. Click General. 8. In the “Components checked are used by this connection” list box, double- click Internet Protocol ( 9. The “Internet Protocol ( 10. In the General tab, make sure the the circle next to “Obtain an automatically”...

  • Page 94: Windows Xp

    Appendix C Setting Up Static IP Address 12. Enter the following numbers in the “Subnet mask” text box: 255.255.255.0 Do not include the periods; they are automatically entered. 13. Click . The “Internet Protocol ( 14 In the “Local Area Connection Properties” window, click Connection Properties window disappears.
  • Page 95 Actiontec Wireless-Ready DSL Gateway User Manual 3. Another menu appears. Select Control Panel. 4. When the “Control Panel” window appears, double-click Network Connections.
  • Page 96 Appendix C Setting Up Static IP Address 5. In the “Network Connections” window, double-click Local Area Connection. A number may be displayed after the Local Area Connection. If there is more than one Local Area Connection listed, locate the one that corresponds to the network card installed in your computer by finding the name of the network card in the Device Name column.
  • Page 97 Actiontec Wireless-Ready DSL Gateway User Manual 7. The “Local Area Connection Properties” window appears. Select General. 8. In the “Components checked are used by this connection” list box, double- click Internet Protocol ( 9. The “Internet Protocol ( 10. In the General tab, make sure the the circle next to “Obtain an automatically”...
  • Page 98 Appendix C Setting Up Static IP Address 11. Enter the following numbers in the “ 198.162.0.2 Do not include the periods; they are automatically entered. 12. Enter the following numbers in the “Subnet mask” text box: 255.255.255.0 Do not include the periods; they are automatically entered. 13.
  • Page 99 Actiontec Wireless-Ready DSL Gateway User Manual...

  • Page 100: C Computer Security

    Computer Security The Internet is a giant network of computers all over the world. When a computer is connected to the Internet, it can exchange information with any other computer on the Internet. This lets the user send e-mail, surf the World Wide Web, download files, and buy products and services online, but it also makes the computer vulner- able to attack from persons intent on doing malicious mischief.
  • Page 101 Actiontec Wireless-Ready DSL Gateway User Manual With both types of Internet connections, access to the computer must be con- trolled to make sure someone on the Internet doesn’t access the information on the computer. The longer the computer is connected to the Internet, the easier it is for someone on the Internet to find the computer and attempt to access it without permission.
  • Page 102 Appendix B Computer Security Internet Browsers Always exit the Internet browser (for example, Internet Explorer or Netscape Navigator). Never “minimize” the browser or leave it open in the background. Breaking into a computer is easier when an Internet browser is running. Network Applications Network applications (such as software programs) that allow remote access to the computer also make the computer vulnerable to access from other people on...
  • Page 103 Actiontec Wireless-Ready DSL Gateway User Manual For more information about firewalls, including vendors who sell firewall prod- ucts, go to the Qwest DSL web site and click the Security topic. Firewall prod- ucts are available from computer and networking equipment retailers.

  • Page 104: Specifications

    Specifications General Model Number GS204AD9-01 (Four-Port Wireless-Ready DSL Gateway) Standards IEEE 802.3 (10BaseT) IEEE 802.3u (100BaseTX) IEEE 802.11b (Wireless) G.dmt G.lite t1.413 RFC 1483, 2364, 2516 Protocol LAN - CSMA/CD WAN - PPP, DHCP, Static IP Full-rate ADSL Interface GS204AD9-01...

  • Page 105: Wireless Operating Range

    Actiontec Wireless-Ready DSL Gateway User Manual Wireless Operating Range Indoors Up to 30M (100 ft.) @ 11 Mbps Up to 50M (165 ft.) @ 5.5 Mbps Up to 70M (230 ft.) @ 2 Mbps Up to 91M (300 ft.) @ 1 Mbps Outdoors Up to 152M (500 ft.) @ 11 Mbps Up to 270M (885 ft.) @ 5.5 Mbps...

  • Page 106: E Glossary

    Glossary Access Point A device that allows wireless clients to connect to one another. An access point can also act as a bridge between wireless clients and a “wired” network, such as an Ethernet network. Wireless clients can be moved anywhere within the cover- age area of the access point and remain connected to the network.
  • Page 107 Actiontec Wireless-Ready DSL Gateway User Manual Firewall Prevents users outside the network from accessing and/or damaging files or computers on the network. Gateway A device that manages the data traffic of a network, as well as data traffic to and from the Internet.
  • Page 108 Subnet Mask A set of four numbers configured like an IP address used to create IP address numbers used within a particular network only. TCP/IP (Transmission Control Protocol/Internet Protocol) The standard protocol for data transmission over the Internet. WAN (Wide Area Network) A network connecting computers located in separate areas, (i.e., different build- ings, cities, countries).
  • Page 109 Actiontec Wireless-Ready DSL Gateway User Manual...

  • Page 110: F Security Level Services Table

    Security Level Services Table The following information is related to the Firewall options (High, Medium, and Low) in the “Advanced Services” chapter of this manual (page 35). The types of services and their respective ports are listed in the two right-hand columns; the “In”...

  • Page 111: Medium Security Level

    Actiontec Wireless-Ready DSL Gateway User Manual Medium Security Level Service Port http telnet smtp pop3 nntp real audio/video 7070 icmp H.323 1720 T.120 1503 Low Security Level Service Port http telnet smtp pop3 nntp real audio/video 7070 icmp H.323 1720 T.120 1503 Basic Security Level...

  • Page 112: Acronym Definitions

    Appendix F Security Level Services Table Acronym Definitions http HyperText Transfer Protocol This protocol delivers information over the Internet, and is used when a home computer connects to a Web site via an Internet browser Domain Name System. A date query system used to translate host names into Internet addresses (i.e., www.somewebsite.com translates to 888.999.000.111) File Transfer Protocol.
  • Page 113 Actiontec Wireless-Ready DSL Gateway User Manual icmp Internet Control Message Protocol. Allows error messages, text packages, and informational messages to be transferred over the Internet. H.323 A standard protocol for sending audio and video over the Internet. T.120 A standard protocol for multimedia teleconferencing over the Internet. Secure Shell.

  • Page 114: G Non-Windows System Setup

    Non-Windows System Setup The Gateway supports both the Classic Macintosh operating systems (9.2.1 and below), as well as OS X. Note: When installing any software, consult the user manual and help files supplied with the software for detailed information. Actiontec provides the following information as a guideline only. Classic To configure the Router, Open Transport 2.5.2 or above must be loaded on the computer.
  • Page 115 Actiontec Wireless-Ready DSL Gateway User Manual 2. When the “TCP/IP” window appears, select Edit from menu bar, then select User Mode. 3. When the “User Mode” window appears, select Advanced, then click OK. 4. In the “TCP/IP” window, select Ethernet from the “Connect via” drop-down list.
  • Page 116 Appendix G Non-Windows System Setup OS X 1. Open the “System Preferences” application via the Dock or Apple Menu. The “Network” window appears. 2. Select Built-In Ethernet from the “Show” drop-down list. 3. Select TCP/IP and, from the “Configure” drop-down list, select Using DHCP. 4.

  • Page 117: Connecting To The Isp

    Actiontec Wireless-Ready DSL Gateway User Manual Connecting to the ISP 1. Open the Web browser. In the address bar, enter http://192.168.0.1 then press Enter on the keyboard. 2. The “Main Menu” screen appears. Select Setup/Configuration. 3. In the “Set Up/Configuration” screen, select Non-Windows Setup from the menu on the left side.
  • Page 118 Appendix G Non-Windows System Setup 4. The “Actiontec DSL Modem Setup Page” screen appears. In this screen, the user can configure the the ISP Protocol (Bridged, PPPoA, or PPPoE) and the IP configuration (Dynamic or Static). Using the Internet Service Provider (ISP) Worksheet provided by the ISP, enter the information in the appropriate text boxes.
  • Page 119 Actiontec Wireless-Ready DSL Gateway User Manual...

  • Page 120: Notices

    Notices Regulatory Compliance Notices Class B Equipment This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion.
  • Page 121 Actiontec Wireless-Ready DSL Gateway User Manual 2. This device must accept any interference received, including interference that may cause unwanted operation. Note: To comply with FCC RF exposure compliance require- ments, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

  • Page 122: Limited Warranty

    Limited Warranty Hardware: Actiontec Electronics, Inc., warrants to the end user (“Customer”) that this hardware product will be free from defects in workmanship and materials, under normal use and service, for twelve (12) months from the date of purchase from Actiontec Electronics or its authorized reseller. Actiontec Electronics’...
  • Page 123 Actiontec Wireless-Ready DSL Gateway User Manual THIS ACTIONTEC ELECTRONICS PRODUCT MAY INCLUDE OR BE BUNDLED WITH THIRD-PARTY SOFTWARE, THE USE OF WHICH IS GOVERNED BY A SEPA- RATE END-USER LICENSE AGREEMENT. THIS ACTIONTEC ELECTRONICS WARRANTY DOES NOT APPLY TO SUCH THIRD- PARTY SOFTWARE.
  • Page 124 Limited Warranty NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAIN- TENANCE OR USE OF ITS PRODUCTS. ACTIONTEC ELECTRONICS SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT OR MALFUNCTION IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUS- TOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPT TO OPEN, REPAIR OR MODIFY THE...
  • Page 125 Actiontec Wireless-Ready DSL Gateway User Manual Governing Law: This Limited Warranty shall be governed by the laws of the State of California, U.S.A., excluding its conflicts of laws and principles, and excluding the United Nations Convention on Contracts for the International Sale of Goods.

This manual is also suitable for:
