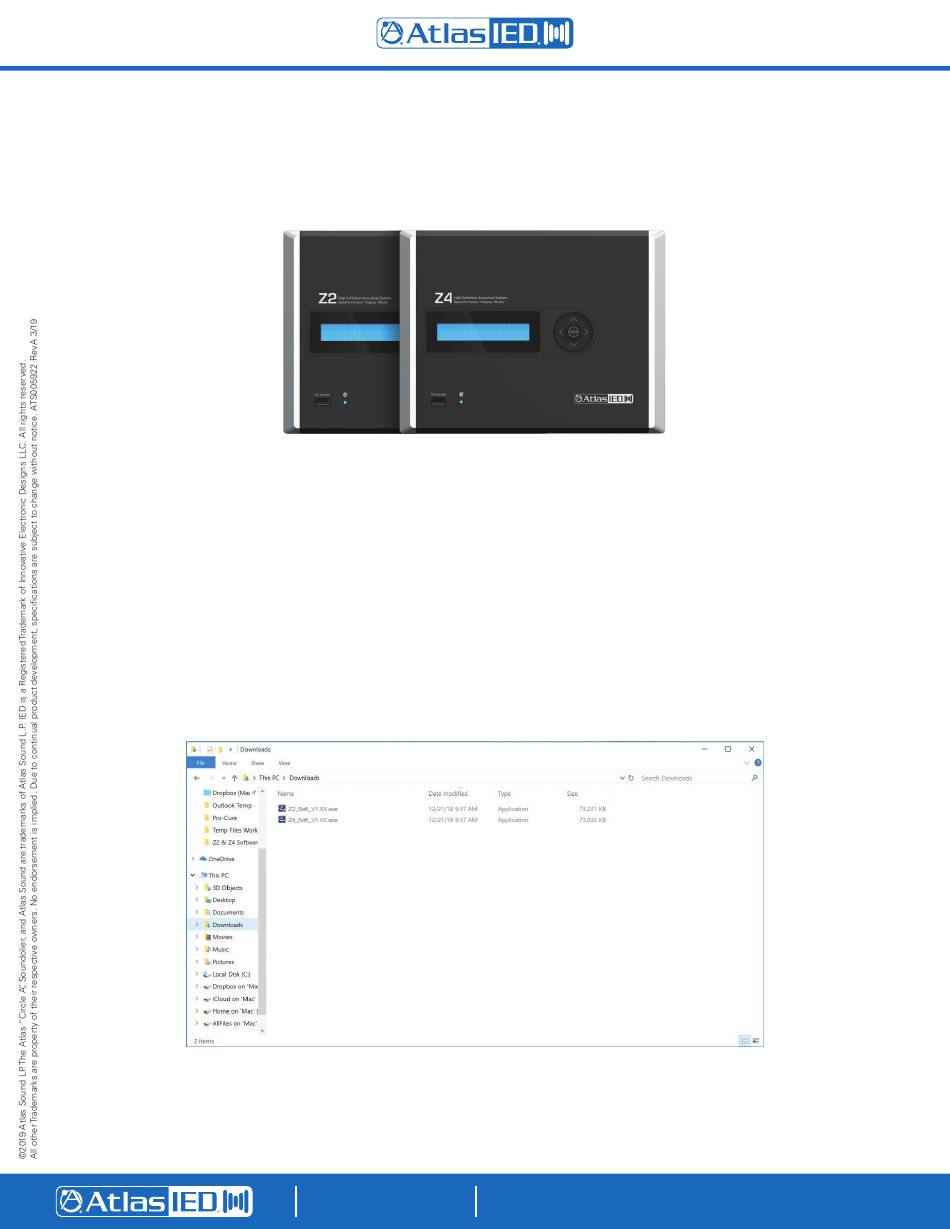

AtlasIED Z Series Z2 and Z4 models can store 10 different programs called Presets. These presets are designed to be used in many general
applications. For a detailed list of their functions and a list of other predeveloped presets visit www.atlasied.com/z-series-overview. Any of
these presets / projects can be modified or a new preset / project can be created by using the Z2 or Z4 Project Design software. Note: There is
different design software for the Z2 and Z4 models.

PC Requirements

•
Windows 64 bit
•
For Mac users, the software will work using Parallels software or a similar type macOS / PC software.
Downloading and Installing the Z2 & Z4 Project Design Software
1.
Visit www.atlasied.com/SoftwareLibrary
2. Locate and download the Z2 or Z4 Project Design software. The file names are "Z2_SOFT V1.XX.exe" or "Z4_SOFT V1.XX.exe" .
Note: This is an (.exe) type file and could get blocked by computer virus software.
3. Download the software to the desktop or another easily accessable location.
4. If a previous version of the software is already installed on the PC, it needs to be uninstalled before loading the newer version.
5. Open the file and the software will begin the installation process.
Z Series
Project Design Guide
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
AtlasIED.com
