5.2. Powering the Display Unit

To power the Display Unit, follow these steps:
1. Remove the Display Unit from the box.
2. Find an appropriate location for the Display Unit. It must be an indoor
location 30 meters (100 ft.) or less from your home's utility meter.
3. To set the Display Unit on a horizontal surface, such as a countertop,
pull out the built-in stand located on the back of the unit.
4. To apply power to the Display Unit, you can use 2 standard "AA"
batteries or the optional wall adapter.
Your Display Unit comes with 2 alkaline "AA" batteries already
installed. Simply remove the plastic insert that separates one of the
batteries from its contact point and replace the cover.
To use the optional wall adapter, plug adapter cord into the side of the
Display Unit, as shown below, and then plug the adapter into any
standard 110V electrical outlet.

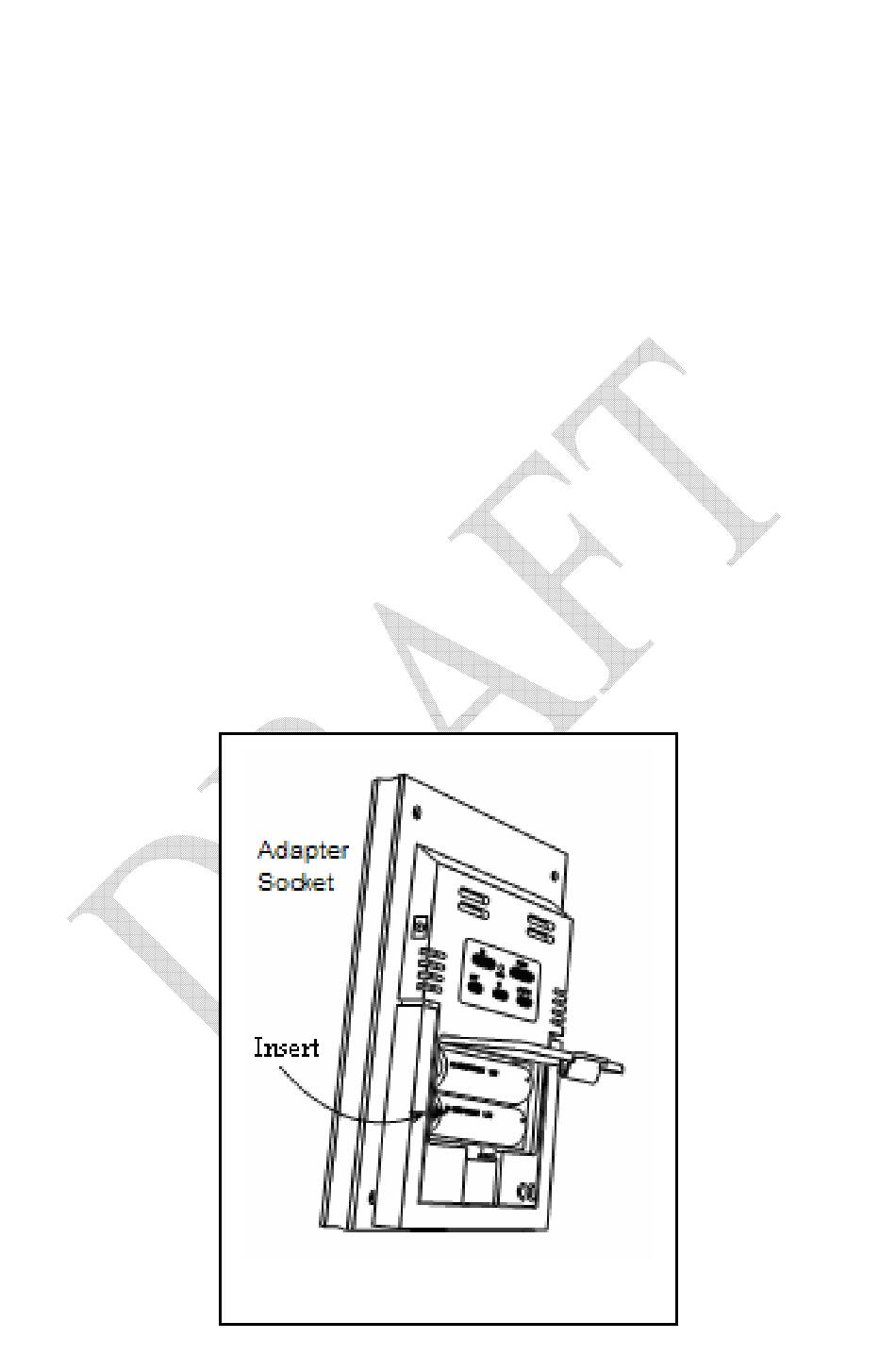

Figure 5.2 – Display Unit Batteries
