alatech CS009 User Manual

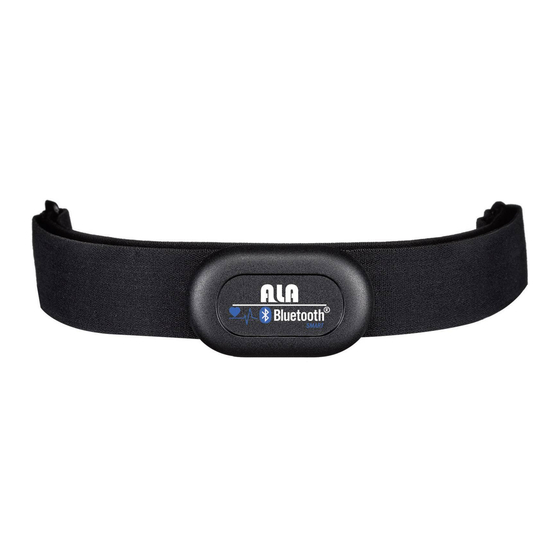

Bluetooth Smart Heart Rate Transmitter
®
CS009
strap
front (with strap)
You can synchronize ALA COACH+ App with Bluetooth
4.0 / BT 4.0) connection program. This Heart Rate Transmitter (CS009)
enables you to monitor your exercise real-time and maximum heart beats
and transmit the heart beating signal to the App and receiving device for
display.

Wear the transmitter strap

1. Adjust the strap length to a suitable personal length and snug enough to
stay in place during your workout.
2. Attach the transmitter to the strap.
3. Moisten the two electrode areas of the strap (refer to illustrated 3).
4. Tie the strap around your chest, just below your chest. Check that the
moist electrode areas are firmly against your skin. Please also check
your logo is in upright position to help device detect efficiently (refer to
illustrated 4).
5. Attach the hook to the other end of the strap.
1
4

Pair with ALA COACH+ App

This Heart Rate Transmitter (CS009) is a Bluetooth
compatible and applicable with
• iPhone 4S / iPhone 5
• The New iPad / iPad 4 / iPad mini
• iPod Touch 5
You can synchronize ALA COACH+ App with
Bluetooth ® Smart (Bluetooth 4.0 / BT4.0) connection
program.
ALA COACH + App can be downloaded in the Apple
App Store. After installing the App, follow the
instructions to complete pairing:
1. Turn on the Bluetooth ® Setting.
‧For Taiwan customer service call: 0800-608341.
‧Please download the latest version of user guide at: www.alatech.com.tw/download/
transmitter
® Smart (Bluetooth
2
® Smart device,
ALA COACH + APP
2. Open your ALA COACH+ App and go to Setting〉My Sensors〉Heart
Rate Monitors〉Heart Rate Setting〉Add New Sensor.
3. Before pairing, please wear on your Heart Rate Transmitter or refer to
below illustrated and use your thumbs to press and hold the two
electrode areas until App search the sensor. Please bring Heart Rate
Transmitter within range 10 cm of your smartphone and move away 20
meters from other Bluetooth
your Heart Rate Transmitter.
Do not release your thumbs
while pairing
4. The App will find the Heart Rate
Transmitter and show as bellow
image. Please touch to complete
3
paring.
You can re-name for Transmitter
when the screen displays "OK".
5
Do not release your thumbs
and touch to complete paring.
Step 1: Use a suitable cross head screwdriver to release four screws of back
cover.
Step 2: Remove the waterproof pad and old battery.
Step 3: Insert the new battery (type: CR2032) into the transmitter with
positive (+) side facing up.
Step 4: Place the waterproof pad back to the transmitter and screw the back
cove up with a cross head screwdriver.
‧Batteries should be disposed.
‧All product information shall be subject to the actual product.
Automatically turn on
when pairing is completed.
® sensors while the App is trying to pair with
4.0

Replace Battery

Battery
Indicator
2PF297210100015
ENG
