alatech CS009 User Manual

®
Bluetooth Smart Heart Rate Strap
CS009
strap
front (with strap)

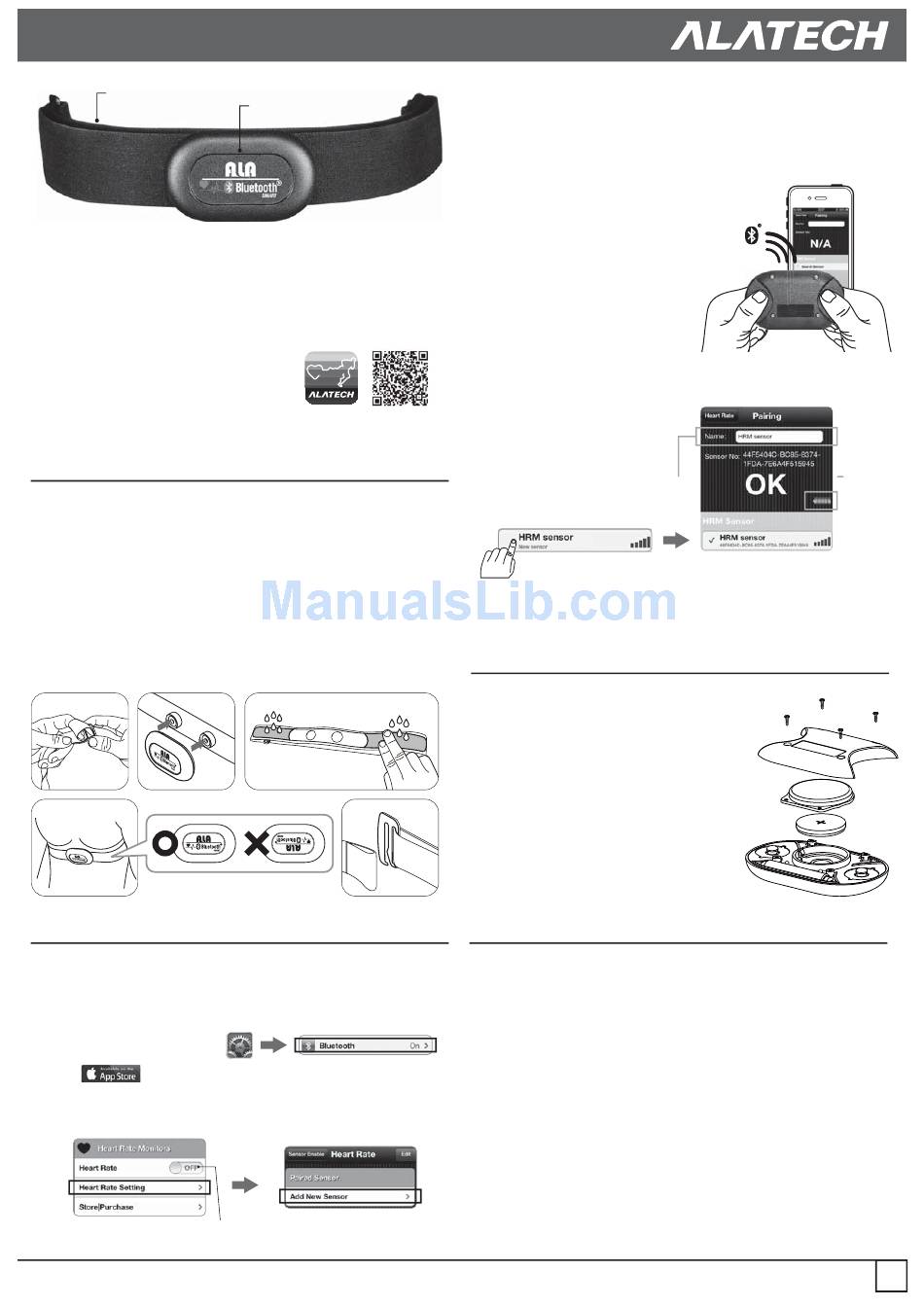

This Heart Rate Strap (CS009) enables to transmit the heart beating signal and
calorie burn to the compatible display devices or Apps via Bluetooth
(Bluetooth 4.0 / BT 4.0) low energy technology.
A separate application is required to view heart rate data on the receiving
device. It is recommended to use ALA COACH+ App but it is also possible to
use other applications.

Wear the Heart Rate Strap

1. Adjust the strap length to a suitable personal length and snug enough to
stay in place during your workout.
2. Attach the sensor to the strap.
3. Wet both electrode areas on the back of the strap (refer to illustrated 3).
4. Tie the strap around your chest, just below your chest. Check that the
moist electrode areas are firmly against your skin. Please also check
your logo is in upright position to help device detect efficiently (refer to
illustrated 4).
5. Attach the hook to the other end of the strap.
1
4

Pair with Receiving Device

1. This Heart Rate Strap (CS009) is compatible with Bluetooth 4.0 receiving
devices including iOS 5.0 or later devices and Android 4.3 or later
devices. Please make sure that your smartphone meets above Bluetooth
and System requirements.
®
2. Turn on the Bluetooth Setting.
3. Go to and install ALA COACH+ App (requires iOS 5.0 or later).
4. Open your ALA COACH+ App and go to Setting〉My Sensors〉Heart
Rate Monitors〉Heart Rate Setting〉Add New Sensor.
•For Taiwan customer service call: +886 0800 608 341.
•Please download the latest version of user guide at: www.alatech.com.tw
heart rate sensor
Recommended App: ALA COACH +
(Requires iOS 5.0 or later)
2
Automatically turn on
when pairing is completed.
User
Manual
5. Before pairing, please wear on your Heart Rate Strap or refer to below
illustrated and use your thumbs to press and hold the two metal buttons on
the back of the sensor until App search the sensor. Make sure your Heart
Rate Strap is within 10 centimeters of your smartphone and there are no
®
other Bluetooth sensors in the same range of 20 meters while the App is
trying to pair with your Heart Rate Strap.
while pairing
®
Smart
6. The App will find the Heart Rate
Strap and show as below image.
Please touch to complete paring.
You can re-name for Heart Rate Strap
when the screen displays "OK".
Do not release your thumbs
and touch to complete paring.
Step 1: Use a small cross head screwdriver to
3
release the screws from back cover.
Step 2: Lift the waterproof gasket and remove
the battery.
Step 3: Insert the new battery (type: CR2032)
with positive (+) side facing up.
5
Step 4: Replace the back cover and the four
screws ensuring the gasket is in place
correctly. Tighten the screws.
Why can't I connect the Heart Rate Strap in App?
1. Please make sure the Bluetooth
Sensor in your ALA COACH+ App have been turned on.
2. Make sure the Apps you downloaded support for Bluetooth
3. Before each use, make sure that the both sides electrode areas of Heart
Rate Strap are well moistened, and you wear it as instructed.
4. Please check if Bluetooth
than translucent) which is showed on the upper right corner of your
smartphone.
5. Keep the transmission distance between CS009 and your smartphone is
within 2 meters.
6. Check the battery. If exhausted, please replace the battery.
•Batteries should be disposed.
•Product image is for illustration purposes only.
Do not release your thumbs
4.0

Replace Battery

Trouble Shooting

®
Setting in your smartphone and CS009
®
signals are stable (rendering all white rather
Battery
Indicator
®
4.0 devices.
