  • Page 1 V5000 Series User Manual (Android)

  • Page 2: Copyright Notice

    Except as allowed under current copyright law, no part of this document may be photocopied, reproduced, modified or translated without the written consent of Urovo Technology Corporation Limited. The software programs used to operate this product are also protected by copyright law, all rights reserved.

  • Page 3: Table Of Contents

    Table of contents Copyright notice ..........................1 Table of contents ..........................2 Chapter 1: Product Package ......................3 Chapter 2: Product Description ...................... 4 About This Product ........................4 Main characteristics ........................5 Applications ..........................6 Specifications ..........................7 Functions ............................12 I.

  • Page 4: Chapter 1: Product Package

    Please check to confirm that the package contains the following items: Name of part Item Power adapter x 1 Lithium battery x 1 Adapter head x 1 Data cable x 1 V5000 series manual x 1 Product warranty card x 1...

  • Page 5: Chapter 2: Product Description

    Chapter 2: Product Description About This Product The V5000 series serves as the foundation of our independent research and development, design, and production of industrial handheld terminals for various industries. The form factor features a flexible, ergonomic design that is lightweight and impact-resistant, with dual-power mode, long standby time, and supports voice call functionality.

  • Page 6: Main Characteristics

    4. Human-computer interaction capabilities The V5000 series of products uses the Android operating system. This platform is a truly open and completely comprehensive mobile software platform, supported by a wealth of software resources for users to choose from, giving the user a wide breadth of customization options.

  • Page 7: Applications

    9. Industrial grade equipment, waterproof, dustproof, resistant to drop impact, high / low temperature under normal working conditions 10. High-speed, high-capacity data processing capabilities, with its Samsung 1GHz processor, 512MB of RAM and 512MB built-in Flash memory. Flash memory can be expanded up to 32GB with the use of microSD / TF cards 11.

  • Page 8: Specifications

    Specifications Model V 5000 Overall maximum size: 190mm*75mm*30mm Overall dimensions Product handle: 90mm*50mm*20mm Physical Weight 350g (with battery) specification Alphanumeric keys, navigation Keypad keys, scan button, side buttons English, Chinese pinyin, Input method handwritten input, supports soft keyboard Either Windows CE 6.0 R3 or Operating system Android 2.3 operating system, multi-language support...
  • Page 9 A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS- Expanded 1D Symbologies：UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, CODE...
  • Page 10 Standard, built-in 802.11b / g wireless communication module, the communication speed of up to 54MB /s to Wi-Fi / Wireless LAN meet the safety standards of CISCO CCX2 / 3, and fully supports the the CISCO AP and safety regulations UMTS1900/850 MHz Working WCDMA...
  • Page 11 3.7V 3000mAh rechargeable lithium battery, standby Main power supply time of 8 hours or more (depending on the Power supply environment) Backup power supply 150mAh backup battery Used to keep the internal RTC power supply clock running Operating temperature -10 to +50 ℃ Storage temperature -20 to +60 ℃...
  • Page 12 IEC2/FDA II level, in line with Laser safety the IEC60825-/EN60825-1 specifications standard Meets the provisions of the Ministry of Information Network access license Industry Standards License of telecommunication equipment 12 months (excluding Warranty period accessories)

  • Page 13: Functions

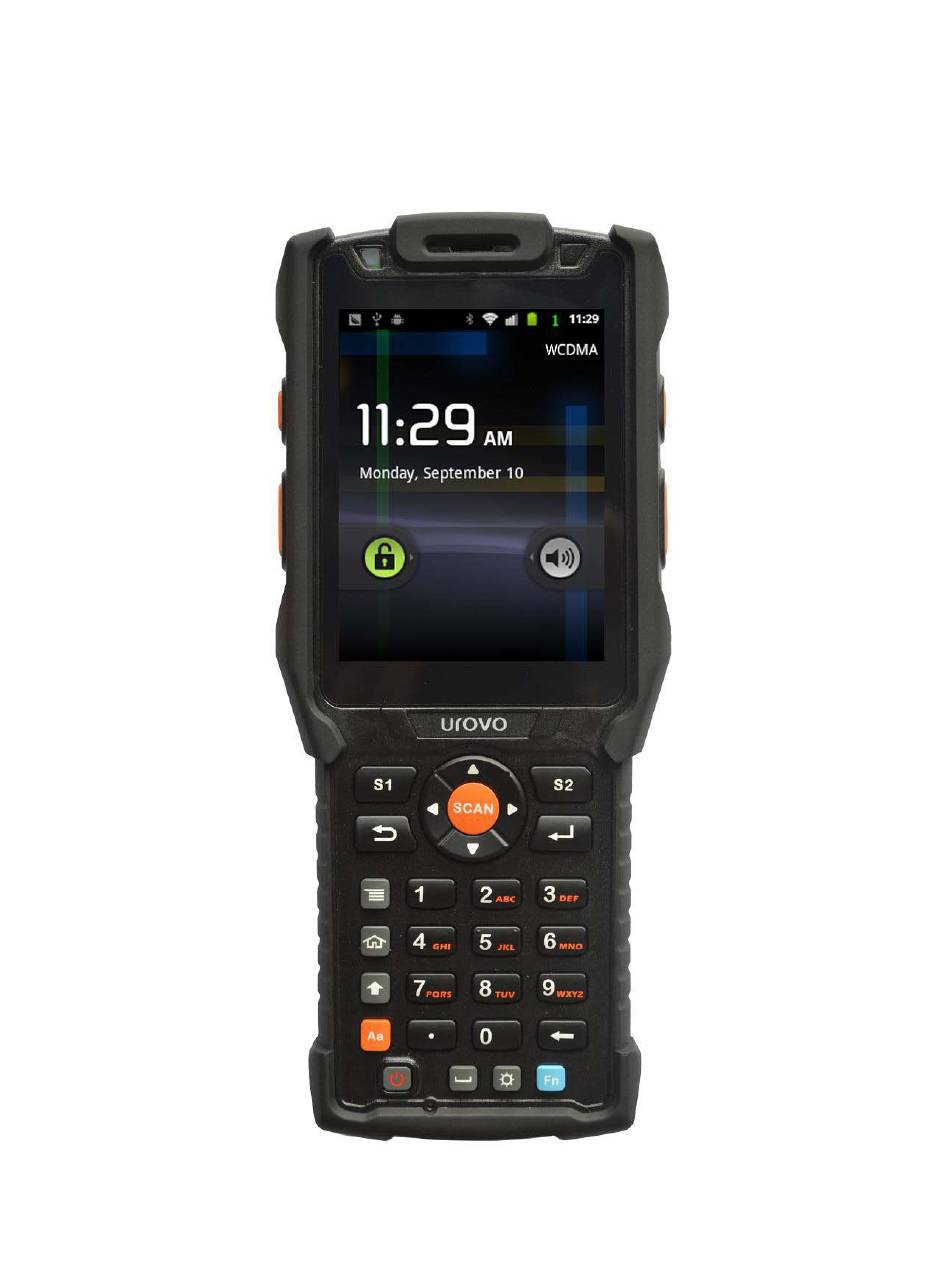

    Functions I. Front of the Unit 1 . Scan light/chargin g system 4 . Touch screen 2 . Main keypad 3 . Power button...

  • Page 14: Side Of The Unit

    1) Scanning LED, charging and instructions ① Barcode scanning light is red for successful scan ② Charging display is red while recharging, and green when charging is complete and during normal use 2) Main keypad Go to next page 3) Power key Turn the device on/off, or turn the LCD backlight on/off, or to wake the device from sleep mode 4) Touch screen...
  • Page 15 4. Charging 3. Headphone and USB jack interface 1. Custom buttons: user-defined key in the secondary development 2. Bar code scan keys: Press this key to scan the bar code 3. Headphone jack: Can insert 3.5 mm headphones 4. Charging and USB interface: Sending and receiving data by USB data line or charging by Power adapter...

  • Page 16: Keypad

    III. Keypad 1. Barcode scanning 2. S1 key 8. Direction 3. Return/ESC 9. S2 key 4. Menu key 10. Enter key 5. Home key Number/lette r keys 6. Shift key 12. Backspace 13. Function Number/lette keys r shift keys 14. Backlight 1) Barcode scanning key: Press this key to scan the bar code 2) S1 key: left softkey 3) Return/ESC key: return to previous menu/cancel actions...
  • Page 17 5) Home key: return to the desktop interface 6) Shift key: for switching between letters or symbols 7) Number/letter key: press to switch the keypad’s current input mode 8) Arrow keys: in four directions – up, down, left and right 9) S2: right softkey 10) Enter key: used to approve an action 11) Number / letter keys: input the appropriate numbers or letters...

  • Page 18: Back Of The Unit

    IV. Back of the unit 1. Stylus 2. Barcode window...
  • Page 19 6. Camera 3. Speaker 7. Reset hole 4. Main battery’s snap-on cover 5. TF card slot 8. SIM card 1) Stylus: for interface operation 2) Barcode scanning window: shoots a laser from this window, so do not look directly into it...
  • Page 20 3) Speaker: source of sound output, such as for the music player and warning tones 4) Main battery snap-on cover: secures the battery cover onto the terminal 5) TF card slot: user can insert microSD / TF memory card 6) Camera: used to take pictures 7) Reset hole: click the reset hole with the stylus to reset the device 8) SIM card slot: You can insert a SIM card provided by your carrier...

  • Page 21: Chapter 3: Usage Instructions

    Chapter 3: Usage Instructions Installing the SIM card, memory card and battery 1. Swing open the main battery cover clip by 90 degrees, you can then remove the battery cover 2. Insert the SIM card or microSD/TF card into their corresponding slots in the battery compartment 3.
  • Page 22 The device by default function will turn off and lock the touch screen if it has not received any action after one minute. This is done to conserve battery power. This can also be done by manually pressing the power lock screen key.
  • Page 23 Press the main screen until the device vibrates, allowing you to add icons to the main screen’s pop-up. You can add shortcuts, folders, and so on, or replace the wallpaper and theme. "Add" is among the menu options. · To move and delete Press and hold the selected icon on the main screen.

  • Page 24: Chapter 4: Advanced Settings

    Chapter 4: Advanced Settings Network settings From the main screen click on wireless and menu → settings → network → mobile network Check "enable data" in order to connect to the network Setting up Wi-Fi network You can ask your network administrator for your wireless network information, including SSID, encryption type, authentication mode, key, and so on.
  • Page 25 First check the open Wi-Fi, then click Wi-Fi settings Check network notification of entering Wi-Fi settings interface, the system automatically searches for and displays the available wireless local area networks. When the connection is visible to a network, click the network name, enter the password →...
  • Page 26 Password input When you choose to add a Wi-Fi network, you need to fill in all of the network information. Enter a network name Choose the correct authentication mode Barcode scanning From the main screen click the menu button → scan header, and then on the main keyboard press the orange "bar code scanning keys".
  • Page 27 A successful scan code will display the barcode contents To start scanning, tap to open the scan head Select the advanced settings option, to set a standard input device scan head. At this point, the barcode will be scanned and converted into a keyboard message, which allows other programs that do not support barcode scanning (such as Wordpad, remote desktop, and so on) to use the scanned information...
  • Page 28 Click on the "reset default parameter" to restore all parameters of the scan header to their factory settings. Online with a personal computer When linked to a personal computer, you can press and hold the top of the screen to enable the USB settings interface to appear, which helps with tasks that require linking to an...
  • Page 29 Tap to open → identify USB storage devices, this will map the device's storage card as a removable disk on your computer, enabling data access. Click to turn off the USB storage device, allowing it to be disconnected safely. Bluetooth settings...
  • Page 30 From the main screen click menu → settings → wireless and network, to access operations such as Bluetooth, and identifying the Bluetooth device name.

  • Page 31: Chapter 5: Basic Functions

    Chapter 5: Basic Functions Dial-up When you call make sure that the connection to the network is secure. Touch the "dial-up" icon on the main screen, or go to the main menu and search the "dialing" application icon. · A direct dial Enter a number, click the dial button.
  • Page 32 You can use this to run basic calculating operations, by clicking on the main menu "calculator" icon. Drag the screen to the left to open the Advanced screen. Touch and hold the calculator display area to open a menu for you to copy the contents of the input and access other tools.
  • Page 33 Click the Menu button → More → Settings → Set Home → enter the URL, click OK. To copy the URL on the long URL input box in the pop-up menu, select "Copy URL as home page”. · Website 1) Scroll: slide your finger across the screen 2) To zoom in or out: double-click your fingers on the touch screen to zoom in on Web pages, double-click again to zoom out.
  • Page 34 4) Select the contact information categories of information (such as phone number and e-mail address), and then enter the contact information of the corresponding category (scroll the page to view all categories) 6) Click on the class plus button to add multiple entries in the category. For example: add unit phone number and residential telephone numbers.
  • Page 35 2. Other settings Sound settings, language settings, call settings, display settings, and so on can be updated under the "Settings" menu. Restart device You may need to restart the device if it is running slower than usual or the software encounters an operation issue. A restart would mean unsaved work is lost as the device is rebooted.
  • Page 36 Click here to view the detailed power consumption, and make the appropriate settings. Battery use considerations When the device’s battery runs out, some files and information stored in the memory will disappear. So either maintain steady power supply, or save your documents regularly.
  • Page 37 power supply approaches low levels. Continued use without recharging will eventually lead the device to shut down. Please do the following to extend battery life: 1. Reduce the number of times charging and discharging the battery. Recharge only when the system prompts it. 2.

  • Page 38: Chapter 6: After-Sales Service

    Chapter 6: After-Sales Service Support and services Website Go to www.urovo.com to find out more about our products, accessories and other support information. Customer Support If you have questions about this manual or our website content cannot answer your questions, you may contact our customer service staff. If your machine is in need of repair, please contact the company to obtain service information, shipping instructions and warranty coverage.
  • Page 39 Urovo Technology Corporation Limited provides a guarantee on the defect- free materials and manufacture of this product, good for 12 months from the date of purchase.
  • Page 40 (including loss of profits), whether based on warranty, contract, negligence, or any other legal concerns. Contact Company: Urovo Technology Corporation Limited Website: www.urovo.com Address: 7 Floor, Zhongdi Cyber Bldg, South High-tech Zone, Nanshan...
  • Page 41 Warning: Changes or modifications made to this equipment not expressly approved by UROVO may void the FCC authorization to operate this equipment. The device complies with the RF specifications when the devices used near your ear or at a distance of 1.5 cm from your body. Ensure that the device accessories such as a device case and advice holster are not composed of metal components.
  • Page 42 Declaration This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
