Download
Share
Print this page
  1. Manuals
  2. Brands
  3. Lennox Manuals
  4. Furnace
  5. EL296DFV SERIES
  6. User's information manual

Lennox EL296DFV SERIES User's Information Manual

Hide thumbs Also See for EL296DFV SERIES:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
2018 Lennox Industries Inc.
©
Dallas, Texas, USA
506771-01
07/2018
Supersedes 03/2017
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, personal
injury or loss of life. Installation and service must be
performed by a licensed professional HVAC installer or
equivalent, service agency, or the gas supplier.
FIRE OR EXPLOSION HAZARD.
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
U S E R ' S I N F O R M AT I O N
WARNING
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Leave the building immediatly
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
M A N U A L
EL296DFV
SERIES

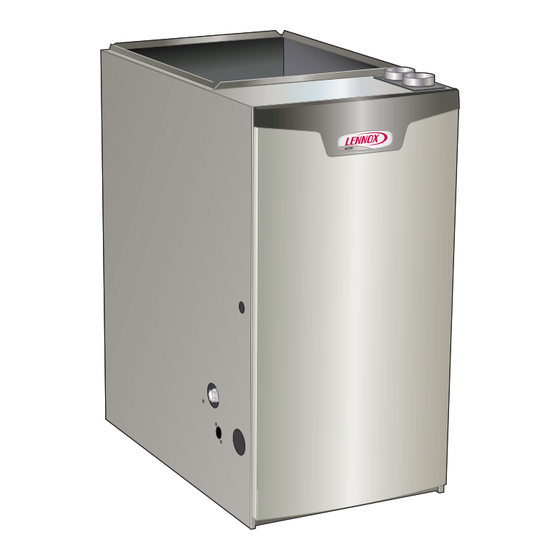

GAS FURNACE

Advertisement

loading

Related Manuals for Lennox EL296DFV SERIES

Summary of Contents for Lennox EL296DFV SERIES

  • Page 1: Gas Furnace

    U S E R ’ S I N F O R M AT I O N M A N U A L 2018 Lennox Industries Inc. © Dallas, Texas, USA EL296DFV 506771-01 07/2018 SERIES Supersedes 03/2017 GAS FURNACE WARNING Improper installation, adjustment, alteration, service or maintenance can cause property damage, personal injury or loss of life.
  • Page 2 EL296DFV Parts Identification TOP CAP AIR INTAKE COLLAR FLUE COLLAR BLOWER MOTOR PRESSURE SWITCH ASSEMBLY INTEGRATED CONTROL COMBUSTION AIR INDUCER BURNERS GAS VALVE AND MANIFOLD FIGURE 1 NOTE - This manual is the property of the homeowner If your home is left unattended for an extended period of and must be left with the equipment user.
  • Page 3 Because of this, Lennox recommends the use of a carbon monoxide detector in your home, even if air. These products can cause furnace corrosion.
  • Page 4 DANGER Danger of explosion. There are circumstances in which odorant used with LP/ propane gas can lose its scent. In case of a leak, LP/ propane gas will settle close to the floor and may be difficult to smell. An LP/propane leak detector should be installed in all LP applications.
  • Page 5 Motor Nameplate__________Actual__________ power to furnace. Service Reminder CAUTION Call your Lennox service technician if the unit will not op- erate. Before calling, always check the following to be To ensure proper operation, a licensed professional sure service is required: service technician (or equivalent) should check the burner flame and conduct a combustion analysis 1 - Check that electrical disconnect switches are ON.
  • Page 6 Safety Precautions necessary (monthly). If you discover any of the following, shut down your unit, and contact a Lennox dealer for an inspection by 5 - Check the condition and cleanliness of burners and a licensed professional service technician (or equiv- heat exchanger and clean if necessary.
  • Page 7 Perform a general system test. Turn on the furnace to Repair Parts List check operating functions such as the start-up and shut- The following repair parts are available through Lennox off operation. dealers. When ordering parts, include the complete fur-...
