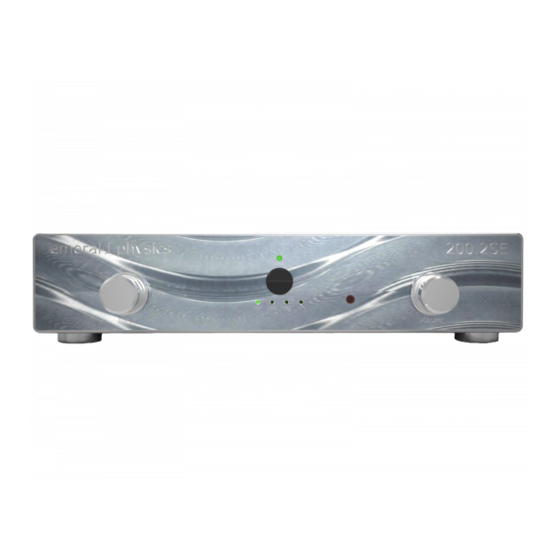

Summary of Contents for Emerald Physics EP 200.2SE

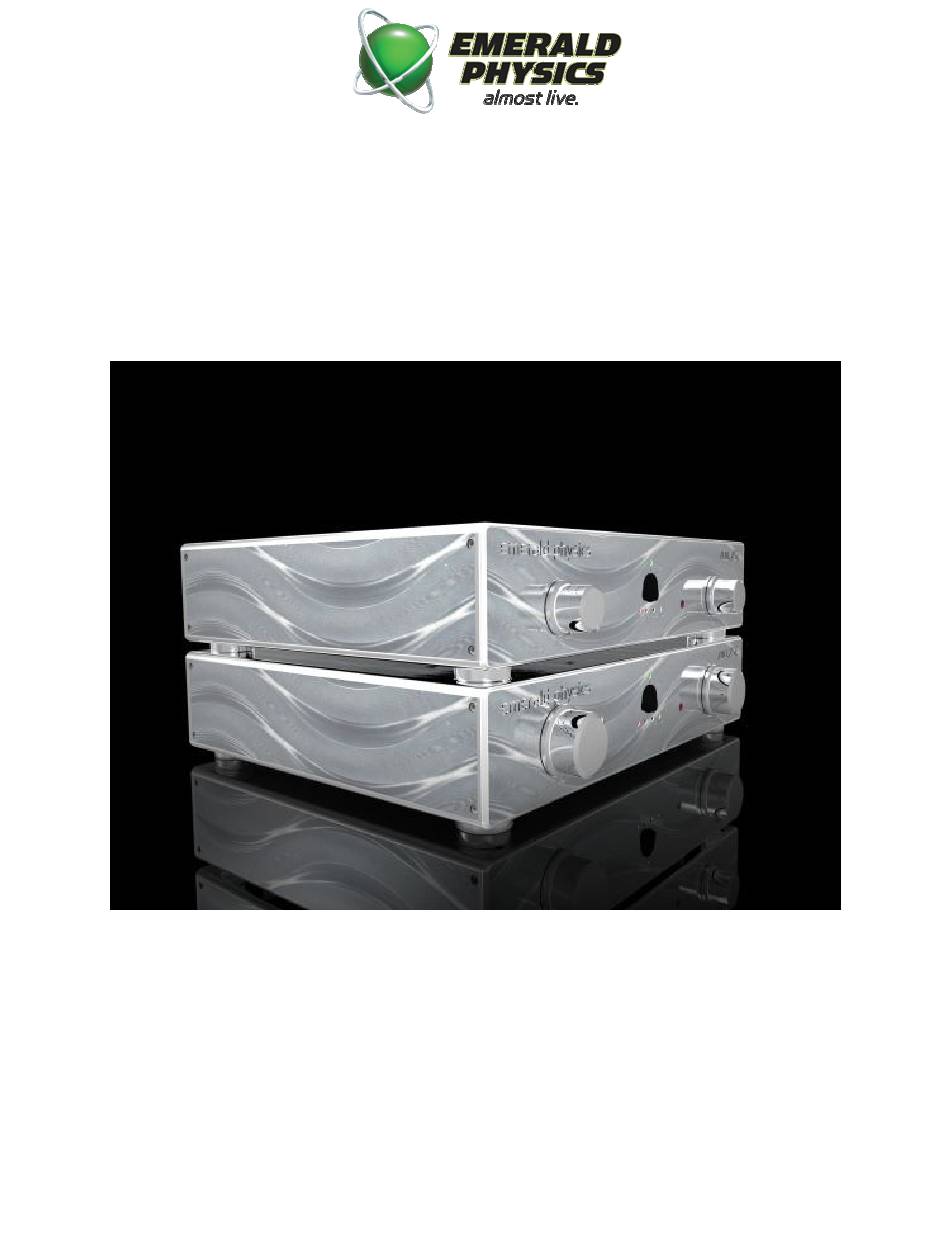

- Page 1 OWNER’S GUIDE Emerald Physics EP 200.2SE...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of “dangerous voltage” inside the product that may constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product.
-
Page 3: Start Here
START HERE! 1. Read Instructions — Read all the safety and operating instructions before operating this product. 2. Retain Instructions — Retain safety and operating instructions for future reference. 3. Heed Warnings — Adhere to all warnings on the product and in the operating instructions. -
Page 4: Unpacking And Accessories
Unpacking and Accessories Congratulations and thank you for your purchase of this Emerald Physics EP 200.2SE Integrated Power Amplifier. These Emerald Physics amps were designed to compete with amps selling for significantly higher costs. They were designed to offer high end performance at reasonable costs. - Page 5 Pre Out and Main In on the rear panel. Please inspect the unit now and contact Emerald Physics or your distributor (if out of North America) if you see evidence of shipping damage. Save the carton and packing inserts in case you move or in the event you need to ship your amplifier for repair.
-
Page 6: Voltage Selection
Voltage selection 115v - 230v AC Voltage Change The EP 200.2SE is capable of operating in multiple regions – both 115v/60Hz and 230v/50Hz are served. To use this product in a different region other than the original Factory Set Voltage one must refer this unit to qualified service personnel as the voltage “change: is performed by de-soldering from the original position and then re-soldering... - Page 7 Connection Warning Disconnect the AC cord before making or changing any input or hooking up any speaker wire to the amplifier. Make sure there is no strain or tension on any wires that could cause them to pull loose. Stereo system operation: Connect shielded audio cables from your source components (i.e.
-
Page 8: Please Note The Following
Home Theater Set Up. In Post Mode – this allows the EP 200.2SE to be used as an Integrated Amp in any High End 2-Channel audio system as the Volume Control will not only control the volume of the EP 200.2SE but as well…... -
Page 9: Troubleshooting
Play particular attention to your speaker cables at both the output of the EP 200.2SE and your speakers themselves. Check again to be sure that no wires are touching – this creates a short circuit and this is bad. -
Page 10: If You Need Help
If you need help Call Emerald Physics (770-667-5633) or your overseas dealer or distributor first. If we determine that your Emerald physics amp needs to be returned to Emerald or an Authorized Emerald Warranty Center for inspection and possible servicing, we will... -
Page 11: Warranty Repair
The product must be packed and returned to Emerald Physics or an authorized Emerald Physics repair center by the customer at his or her sole expense. Emerald Physics will pay return freight of its choice. A RETURNED PRODUCT MUST BE ACCOMPANIED BY A WRITTEN DESCRIPTION OF THE DEFECT AND A PHOTOCOPY OF THE ORIGINAL PURCHASE RECEIPT. -
Page 12: Duration Of Warranty
Limited Warranty shall be to return the product to Emerald Physics or an authorized Emerald Physics repair center where the defect will be rectified without charge for parts or labor. - Page 13 YOU SHOULD KNOW There is no Emerald Physics warranty for any Emerald Physics product if it was not purchased from an Authorized Emerald Physics Dealer or Distributor. Investigate any warranty claims made by unauthorized dealers very carefully as you will need to depend entirely upon the dealer, and NOT upon Emerald Physics.
- Page 14 Dynamic Range 110dB Typical Damping factor: >300 Input impedance: 30K ohms RCA / 60K ohms Balanced Gold plated copper binding posts Typical distortion: Less than .03% distortion @ 1 watt 220 watts per channel 8 ohms both channels driven @.08% THD 275 watts per channel 8 ohms both channels driven @ less than 1% THD 400 watts per channel 4 ohms both channels driven @.08% THD Made in the USA...
