STM23 Quick Setup Guide

Requirements

To begin, make sure you have the following equipment:
▪ A small flat blade screwdriver for tightening the connectors (included).
▪ A personal computer running Microsoft Windows 98, 2000, ME, NT, XP, Vista or 7.
▪ ST Configurator™ software (available at www.applied-motion.com).
▪ For RS-232 models: an Applied Motion programming cable (included)
▪ For RS-485 models: an RS-422 or RS-485 port or adapter for your PC (see reverse for recommended RS-485 adapter)
▪ For more detailed information, please download and read the
ual, available at www.applied-motion.com/support/manuals.
Step 1
a) Download and install the

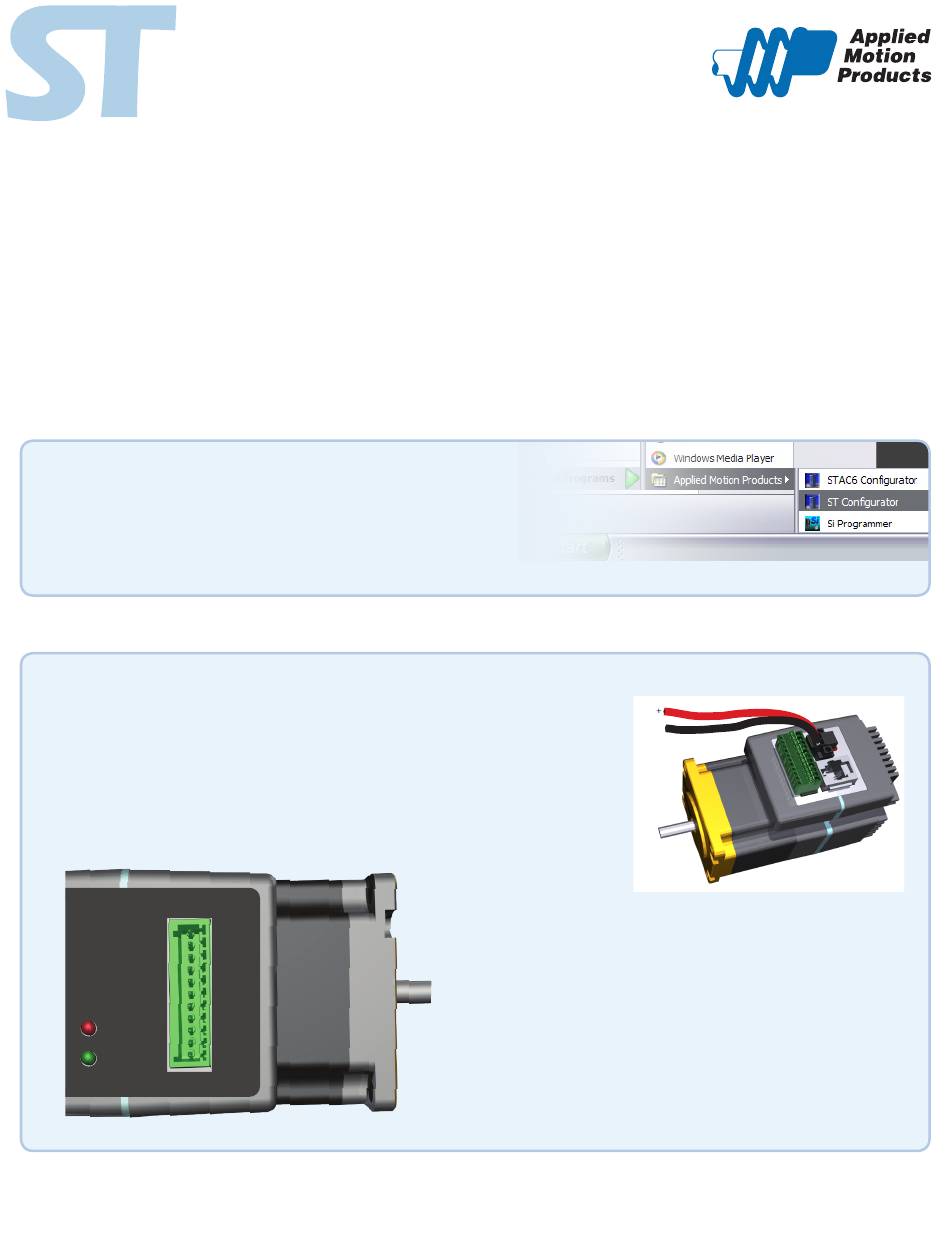

b) Launch the software by clicking:
Start / Programs / Applied Motion Products / ST Configurator
c) Connect the drive to your PC using the RS-232 programming cable
or RS-422/485 adaptor
Step 2
Wire the drive to the DC power source.
(do not apply power until all connections to the drive have been made)
Note, the STM23 accepts DC voltages from 12-70V.
If using an external fuse, we recommend the following:
STM23: 3AG, 4 amp (Littlefuse 313004P)
See the STM23 hardware manual for more information about
power supply and fuse selection.
ST Configurator™ software.
STEP+
STEP-
DIR+
DIR-
EN+
EN-
OUT+
OUT-
+5V
AIN
GND
STM23 Hardware Man-
-
920-0020 C
