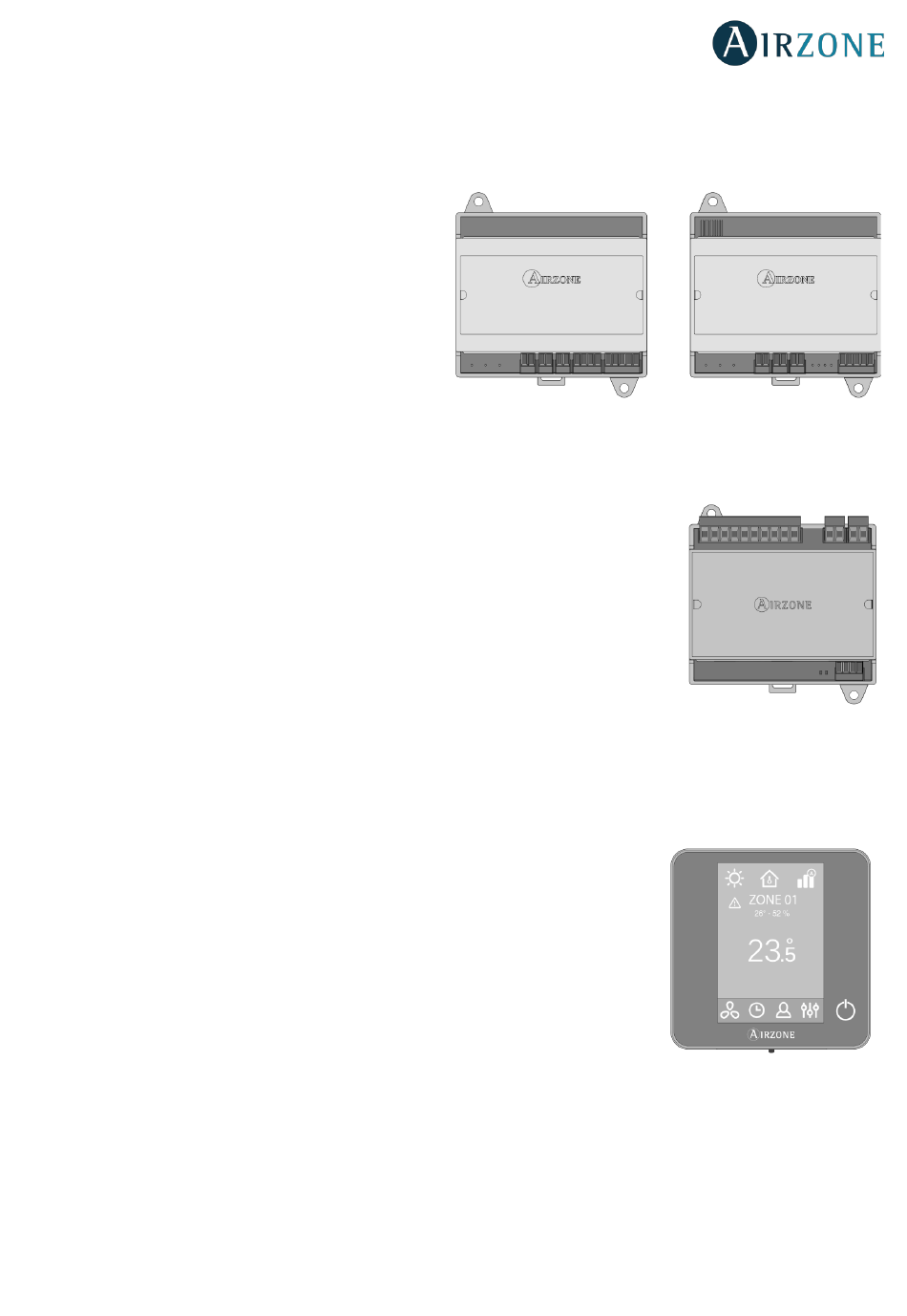

WIRED/WIRELESS ZONE MODULE WITH XXX COMMUNICATION (AZVAFZMXXX [C/R])

Module for controlling direct expansion individual units through communication gateway
Gateway AZVAFGTxxx
for more information
Airzone connection bus. Mounted on DIN rail or on wall.
Functionalities:
•
Input for detection of open windows.
•
Input for detection of presence.
•
Probe input.
•
Remote probe function and distributed probe
function.

RELAY RADIANT HEAT CONTROL MODULE (AZVAF5OUTPUTS)

Control module of radiant heat for heating stages. Communications via Airzone connection
bus of control board. Powered by control board. Mounted on DIN rail.
Functionalities:
•
Control up to 5 zones of heating elements by means of free-voltage relays.
•
Demand Relay of Pump.
•
Demand Relay of Boiler.
•
Identified by means of a micro-switch.

BLUEFACE PRINCIPAL CONTROLLER (AZVAFBLUEFACEC)

Color graphic interface with capacitive screen for controlling zones in Airzone systems. Powered by zone module. Finished in
steel and glass.
Functionalities:
•
Available in English, French and Spanish.
•
Control of temperature, operation mode (main thermostat), user mode (main
thermostat) and system speed or airflow (depends on the type of installation).
•
Room temperature and relative humidity measurement of the zone.
•
Configuration stages control (air, radiant or air+radiant).
•
Timer function.
•
Temperature, user mode and on/off time schedules.
•
Remote access to other zones of the system.
•
Weather forecast (optional).
)
. Wired/wireless communications with zone thermostat. Powered through system
AZVAFZMxxxC
( Communication
see section
AZVAFZMxxxR
8
