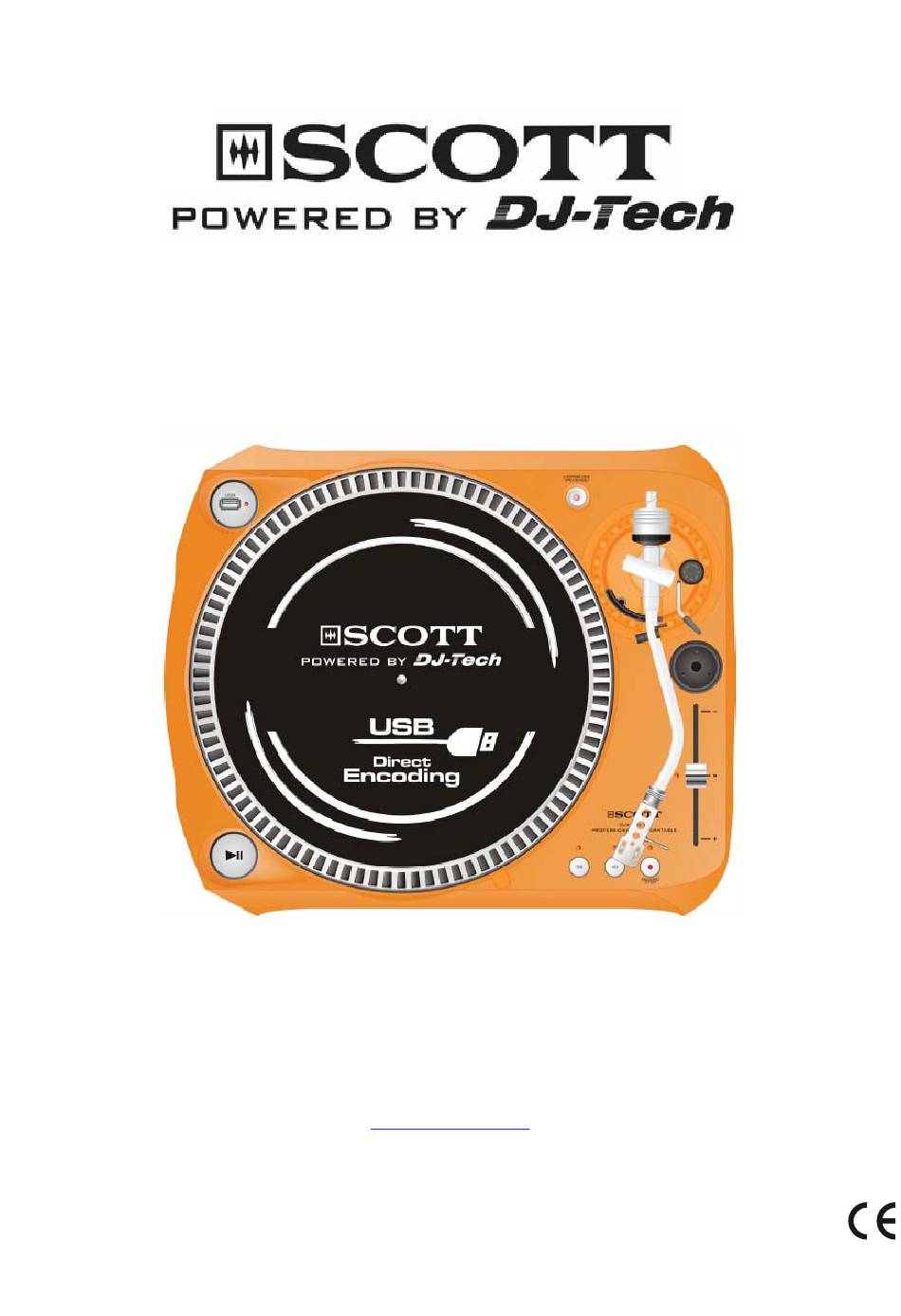

- Page 1 DJX 100 TT / VINYL ENCODER 10 PROFESSIONAL USB TURNTABLE USER MANUAL www.my-scott.com...
-
Page 2: Safety Instructions
USER MANUAL Vinyl Encoder 10 SAFETY INSTRUCTIONS 1. Read these Instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all Instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the manufacture’s instructions. -
Page 3: Unpacking The Box
UNPACKING THE BOX Before you begin assembly, please be sure all parts and accessories have arrived intact. In order to do so, please use the check list below: * Instruction manual * RCA cable * Slipmat * Platter * 45rpm adaptor * Headshell * AC cord * Counterweight... -
Page 4: Headshell And Cartridge Assembly
SET-UP a. Remove the stylus protective cover, if necessary. Never touch the stylus tip during the adjustment. b. Lower the tonearm lever. c. Release the tonearm clamp and release the tonearm from the arm rest. d. Set the anti-skate adjustment to “0”. e. -
Page 5: Control And Functions
CONTROL AND FUNCTIONS 16 4 1. USB PORT USB record only for MP3 format. 2. PLATTER 3. START/STOP BUTTON Press this button to start or stop the platter. 4. PHONO/LINE SWITCH Switch the output to either Phono or Line level. 5. - Page 6 9. S-SHAPED TONEARM 10. TONEARM CLAMP AND REST Use this rest to clamp the tone arm in position during transportation. 11. MOTOR OFF/Reverse BUTTON Press this button to select Reverse/Forward playback. Press the button for more than 1second to switch the motor off, and the LED will be flash. Press the button again for more than 1 second again to switch the motor back on 12.
- Page 7 SPECIFICATIONS TURNTABLE Type 2-speed full manual Motor DC motor Driving method Belt drive Turntable platter 330mm diameter, aluminum diecast Speeds and 45 rpm USB function USB REC. Function (only for MP3 format 192 kbps) Wow and flutter Less than 0.2% WRMS (JIS WTD) with 33 S/N ratio More than 55dB (DIN-B) Pitch controls...
