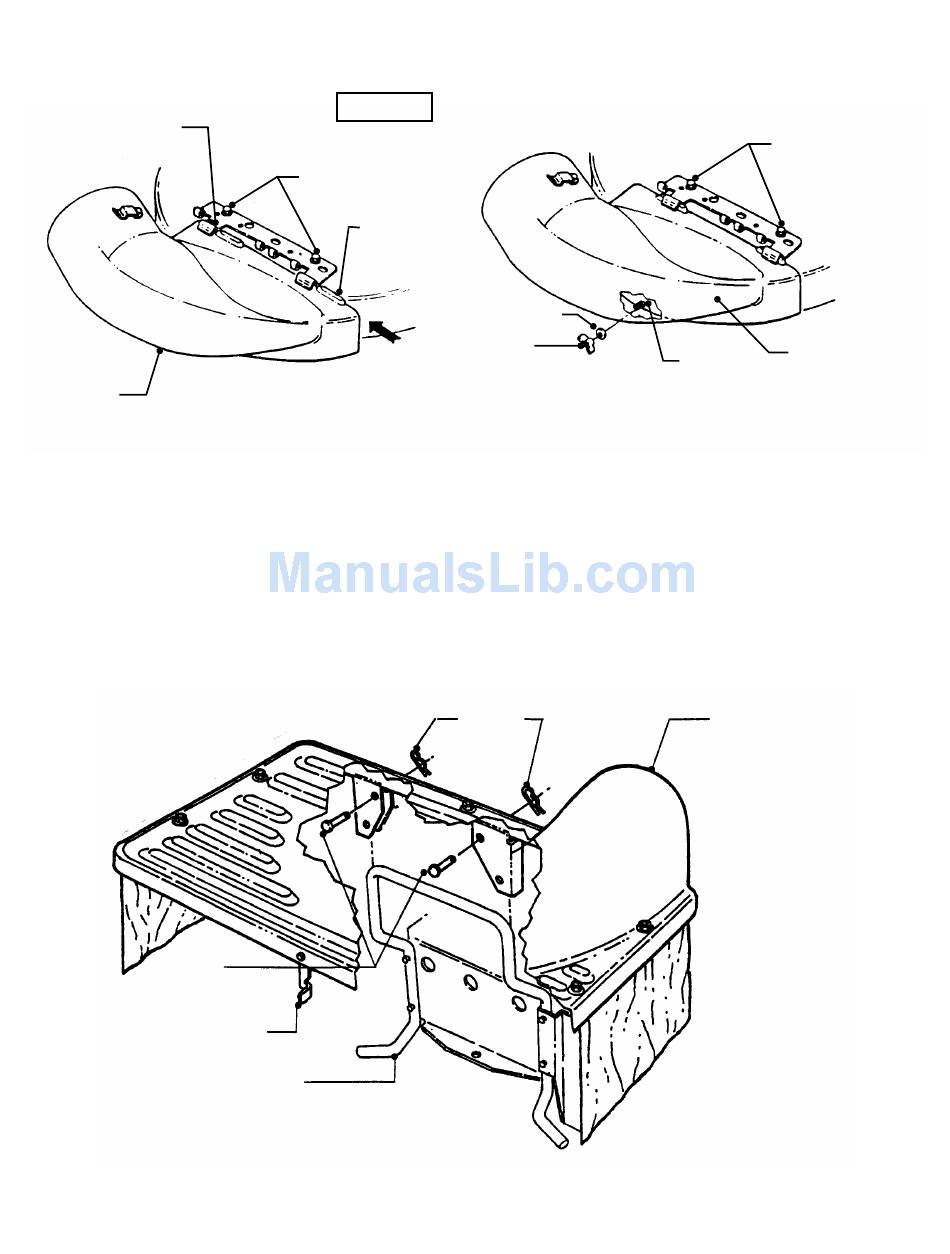

C. ADAPTER INSTALLATION
Hold the adapter in front of the deck. Align the adapter
lugs with the hinge lug retainers, and then push the
adapter to the rear.
HINGE LUG
RETAINERS
ADAPTER

STEP 3: COVER/FRAME INSTALLATION

Lower cover/frame structure into position on bumper. Secure each side of structure as follows: Insert one 5/16 x 1-11/16"
clevis pin through top hole at each side of cover/frame structure as shown in Figure 3 and secure with 3/32 x 1-1/2" hairpin
cotter.
NOTE: When Rear Engine Rider is equipped with two-piece post style bumper (as shown in Figure 1) install clevis pin in
lower hole at each side of cover/frame structure.
CLEVIS
PIN
GRASS
CATCHER
LATCH
33" DECK
LOOSEN
BOLTS IF
NECESSARY
ADAPTER
LUGS
PUSH ADAPTER TO
THE REAR TO SEAT
LUGS UNDER RETAINERS
BUMPER
Loosen bolts (see Figure 2C) & bump the adapter, if
necessary, to force the lugs under the lug retainers.
Secure the adapter to the deck with a flat washer and
wing nut. Tighten bolts. See Figure 2C.
FLAT WASHER
WING NUT
FIGURE 2C
HAIRPIN
FIGURE 3
2
RETIGHTEN
BOLTS
ADAPTER SHOWN
BOLT
IN OPERATING
POSITION
COVER/FRAME
ASSEMBLY
