Installation
and
Operating Instructions
for
MW-CBDA-SMR-800-900-1W65
Dual Band
Compact Bi-Directional Amplifiers
Dekolink Wireless Proprietary and Confidential Information. Copying, Distribution, and Disclosure are
Dekolink Wir
eless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510
prohibited without Express Authorization from Dekolink Wireless Company.
Tel- 972-3-9180-180;
Fax-972-3-
9180
-
190
;
Email-marketing@dekolink.com
;
This document is protected by all applicable copyright laws.
Web site-
r
page 1 of 16
www.dekolink.com
ev 0 11/
04
Advertisement
Table of Contents
Related Manuals for Dekolink MW-CBDA-SMR-800-900-1W65
Summary of Contents for Dekolink MW-CBDA-SMR-800-900-1W65

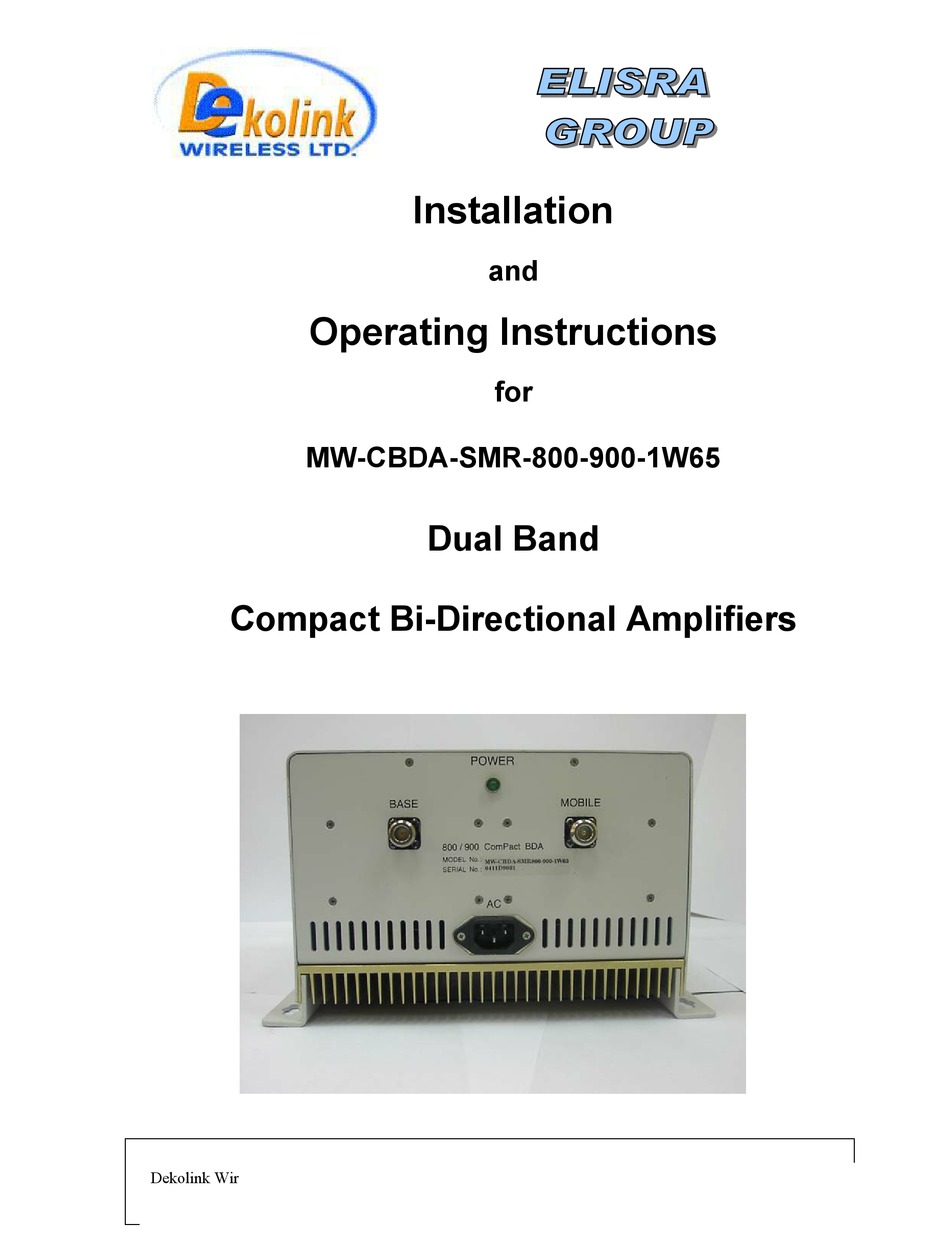

- Page 1 Installation Operating Instructions MW-CBDA-SMR-800-900-1W65 Dual Band Compact Bi-Directional Amplifiers Dekolink Wireless Proprietary and Confidential Information. Copying, Distribution, and Disclosure are Dekolink Wir eless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 prohibited without Express Authorization from Dekolink Wireless Company. Tel- 972-3-9180-180; Fax-972-3- 9180 Email-marketing@dekolink.com...
-
Page 2: Table Of Contents
RF Power Amplifiers LED Indications Electrical Specifications Environmental Conditions Mechanical Specifications RF Exposure Warning Mechanical Outline Dekolink Wireless Limited Warranty Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3- 9180 ; Email-marketing@dekolink.com; Web site- page 2 of 16 ev 0 11/... -
Page 3: Cbda Overview
PWR: Power on green LED Illuminates at uplink power amplifier current fault Downlink RF power fault. Illuminates when the DL transmitted power is less than +15 dBm. Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3- 9180 ; Email-marketing@dekolink.com;... -
Page 4: Remote Alarm Connector (Back Panel)
The AGC amplifier has a Power LED lamp that illuminates when the output power has reached the preset power limit. In addition the BDA has a trimmer that enables continuos reduction of the gain by over 15 dB. Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3- 9180 ;... -
Page 5: Rf Block Diagram
Q uad Filter A G C Q uad Filter A ssy A ssy U plink G ain C ontrol Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3- 9180 ; Email-marketing@dekolink.com; Web site- page 5 of 16 ev 0 11/... -
Page 6: Agc & Mgc Function
Gain Control Enable Trimmer Switch (MGC) AGC & MGC Control (Control Window Located at BDA sides) Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3- 9180 ; Email-marketing@dekolink.com; Web site- page 6 of 16 ev 0 11/ www.dekolink.com... -
Page 7: Cbda Monitor And Alarm
Pin 2 and 3 of the D type connector provide complimentary relay alarm function; short at fault and open at no fault. • The alarm LEDs (red) are displayed on the CBDA cover. The green led is power on indication. Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3- 9180 ; Email-marketing@dekolink.com;... -
Page 8: Cbda Monitor And Alarm Block Diagram
Alarm relay connection to D connector: Pin 2 to 4 open at any fault; short at no fault Pin 2 to 3 short at any fault; open at no fault Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3- 9180 ;... -
Page 9: Bda Installation
To measure the isolation; inject a known signal into one antenna and measure the power at the other antenna. This should be done across the frequency range of both uplink and downlink bands. Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3- 9180 ;... -
Page 10: Installation Steps
To reduce gain, reconnect the antenna cables. Reduce the gain at both uplink and downlink path until this LED stops illuminating. Reduce the gain further by 10 dB. This is the maximum usable gain. Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3- 9180 ;... -
Page 11: Diagnostics Guide
Alarm relay connection to D connector: Pin 2 to 4 open at any fault; short at no fault Pin 2 to 3 short at any fault; open at no fault Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3- 9180 ;... -
Page 12: Rf Power Amplifiers Led Indications
Turn AGC on, or reduce gain so that LED downlink amplifier overload just turns from off to on. Set the same gain for the uplink channel Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3- 9180 ; Email-marketing@dekolink.com; Web site-... -
Page 13: Electrical Specifications
1.5 : 1 max Downlink alarm turn on DL power <15 dBm Power Supply 80 to 240 VAC; 50 to 60 Hz; @500 mA Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3- 9180 ; Email-marketing@dekolink.com; Web site-... -
Page 14: Environmental Conditions
Typical specifications: gain: 2 dBi, VSWR: better than 2:1 , Impedance: 50 ohm. The indoor antenna must be installed to provide a minimum separation distance of 0.2 m (20 cm) from persons within the area. Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3- 9180 ;... -
Page 15: Mechanical Outline
Install this way up with RF connectors facing down Mechanical Outline Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3- 9180 ; Email-marketing@dekolink.com; Web site- page 15 of 16 ev 0 11/ www.dekolink.com... -
Page 16: Dekolink Wireless Limited Warranty
Dekolink. The obligations of Dekolink under this warranty shall be limited solely to the repair or exchange or giving credit for, at the option of Dekolink, any Product that may prove defective in accordance with evidence satisfactory to Dekolink. Any repair or replacement of the Product by Dekolink shall not extend the original warranty period.
