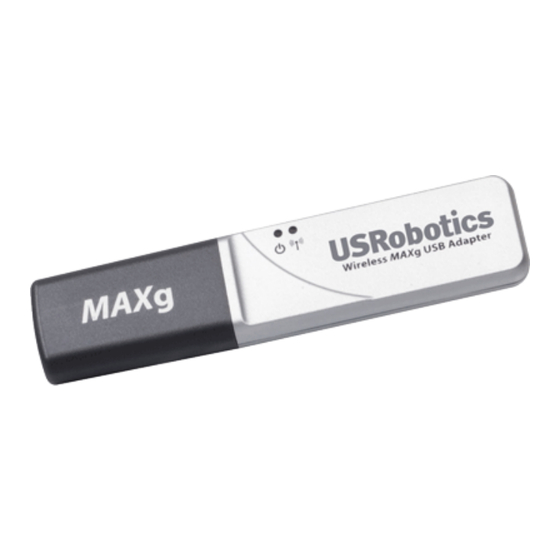

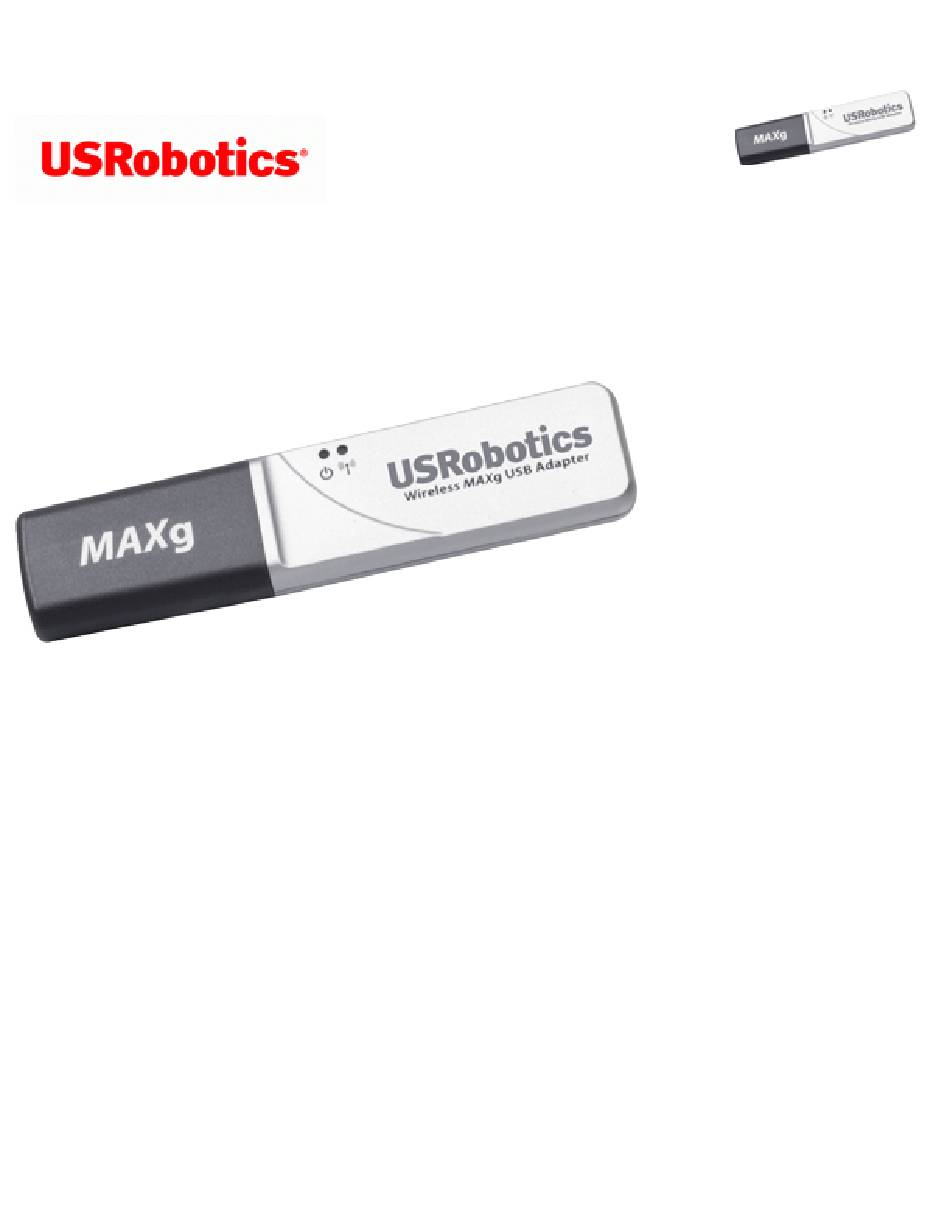

Wireless MAXg USB Adapter: User Guide
Adapter: User Guide
Introduction
The Wireless MAXg USB Adapter is the solution to your home and small business wireless
connectivity needs. MAXg technology provides the maximum 802.11g range in the
industry, delivering optimal wireless connections to your PCs, laptops, and other wireless
devices. MAXg also provides the maximum speed – up to 125 Mbps – delivering large
files like MP3s, digital photos, and digital video through your network fast and efficiently.
And with MAXg, your network will be protected with a maximum security suite of
capabilities, including Wi-Fi Protected Access (WPA), WPA2/802.11i (Windows 2000 and
XP only), MAC address filtering, and more.
And to assure a simple, straight-forward installation, USRobotics developed the
installation wizard that walks you through the installation of any MAXg PC Cards, PCI
Adapters, USB Adapters, or Routers in a seamless fashion. In addition, the wizard
provides easy-to-understand guidance to set up security for your wireless network.
Sharing Internet access securely, wirelessly or wired, has never been easier.
Physical Features
file:///G|/CSO/T-Writer%20Repository/Networking/5425...MAXg%20Refresh%20USB/User%20Guide/English/index.html (1 of 3)6/26/2007 9:21:23 AM
Wireless MAXg USB
