Before You Begin
The ESTeem Model 195Ep wireless Ethernet radio modem is compatible with many different applications. The most
common application is to bridge two or more Ethernet devices or networks. This guide will demonstrate the basic
configuration and testing of a pair of 195Ep's. For a more detailed information, please see the ESTeem Model 195Ep User's
Manual.
This guide assumes you have a working knowledge of Ethernet networking, TCP/IP protocol and how to identify and set the
TCP/IP address on your computer.
The 195Ep can be configured using any current web browser software such as Internet Explorer, Netscape or Mozilla.
The following procedure will provide an initial communication link between two or more Model 195's for testing purposes.
All the example commands listed in this guide can be adjusted to fit your communication network. Please consult the
ESTeem Model 195Ep User's Manual for more details.

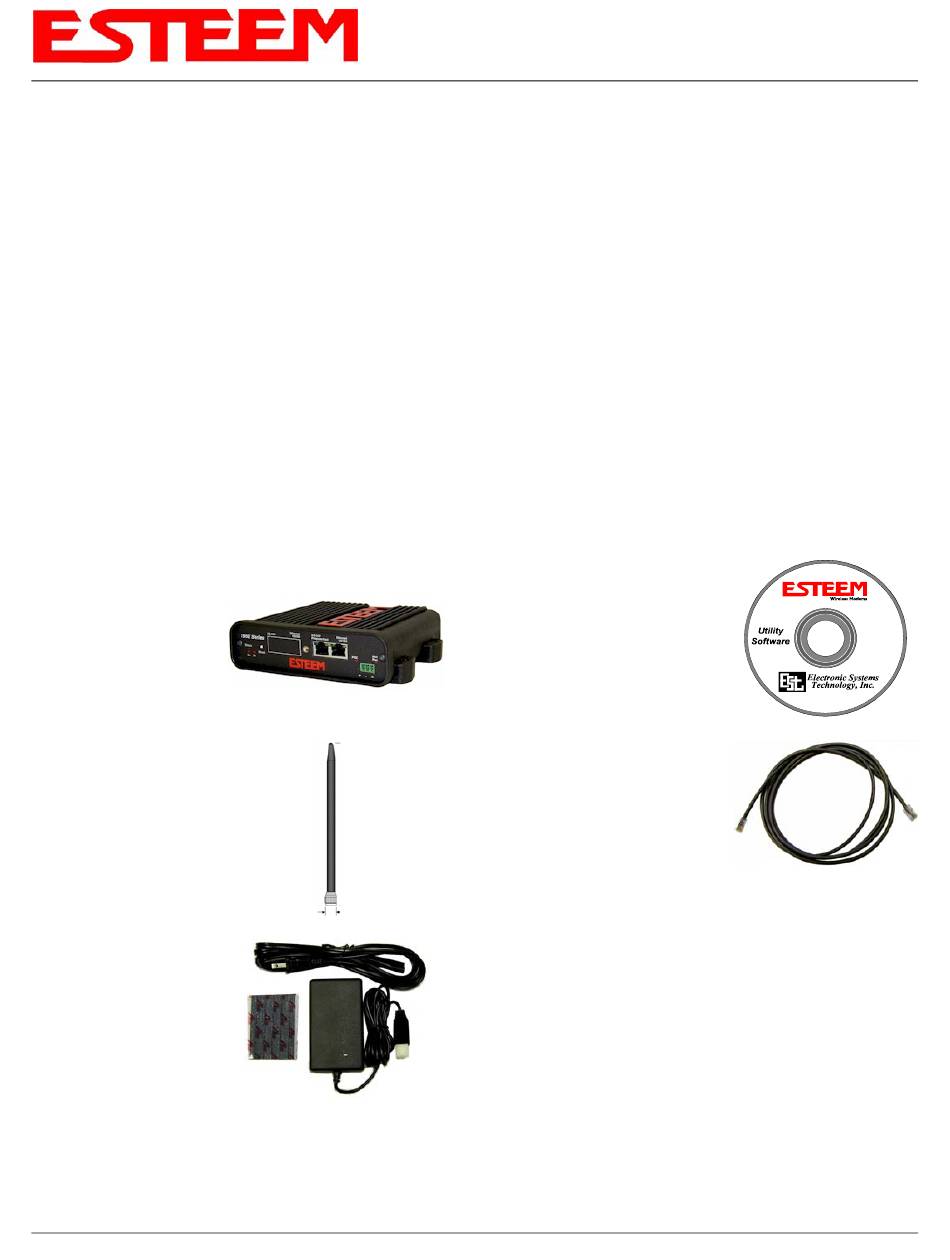

Unpack Contents
Each node in your ESTeem Model 195Ep's network may have different hardware components based upon the final installation
location (i.e Outdoor, Indoor, Point-to-point or Muti-Point). Antenna types, cable lengths, power supplies may be different, but
the following items will be required for basic setup:
Model 195Ep
Antenna
(AA20DMEp
Displayed)
Power Supply
(AA174 Displayed)
Note: Your accessory model numbers may vary from the above, but you will need to locate each of above items to continue
configuration.
Revised: 16 Jun 06
QUICK START GUIDE
AA109 Resource Disk
(2) Ethernet Cables
APX G-1
APPENDIX G
EST P/N AA107P

Advertisement

loading
Need help?

Need help?

Do you have a question about the 195Ep and is the answer not in the manual?

Questions and answers

Summary of Contents for ESTeem 195Ep

  • Page 1 The ESTeem Model 195Ep wireless Ethernet radio modem is compatible with many different applications. The most common application is to bridge two or more Ethernet devices or networks. This guide will demonstrate the basic configuration and testing of a pair of 195Ep’s. For a more detailed information, please see the ESTeem Model 195Ep User’s Manual.
  • Page 2 APPENDIX G QUICK START GUIDE Front Panel Overview RS-232 Input/Output (RJ-45 Connector) RJ-45 10/100BaseT Ethernet Port Reset Button Status Auxiliary Power LED 12 VDC Input Power over Receive (Auxiliary Transmit Ethernet LED Connector ) Antenna Overview Antenna Port A (Single Receive Antenna) Antenna Port B (Dual Receive Antennas) Antenna Connectors...
  • Page 3 APPENDIX G QUICK START GUIDE Begin Programming Assemble the ESTeem Model 195Ep using the following: Antenna Connections Single Antenna Dual Antenna Configuration Configuration Leave Open Power and Data Connection RJ-45 10/100BaseT AA175 PoE Ethernet Port Power Supply LAN In Data Out...
  • Page 4 Configuration of the Model 195Ep is completed through the product’s internal web server. To access this configuration page, you will need to enter the 195Ep’s IP address in your web browser. The IP address set at the factory is Class B (i.e.
  • Page 5 Double-click on the 195Ep you wish to program and the Configure IP Address window will be displayed (Figure 4). Enter an IP address and Subnet Mask for the 195Ep that matches your network subnet and press the OK button to save this to the ESTeem.
  • Page 6 APPENDIX G QUICK START GUIDE When prompted, enter admin for both the username and password and press the OK button. Select Setup on the top menu. Step 1 – Sign-In Screen Press the drop-down menu and select AP Bridge and press the Next button. Step 3 –...
  • Page 7 Set the DHCP services to OFF and press the Next button. Step 4 – Turn DHCP Off Verify the IP address and netmask for the 195Ep (listed as bridge device) are correct press the Next button. Step 5 – Verify IP Address...
  • Page 8 All 195Ep modems in the network must be have the exact same Service Set Identification (SSID). The default SSID is ESTeem and we will use this for demonstration. Enter the SSID as listed above and turn off the wireless security features by selecting the NO radial.
  • Page 9 All Model 195Eps on the network must be on the same radio channel, representing a particular frequency. If a particular channel has not been assigned for use, leave the 195Ep at a default value of 6 and press the Next button.
  • Page 10 11. Press the Commit Changes button and the modem will save all the changes made and reboot. The reboot time is approximately 1 minute to be ready for operation. 12. Complete all steps in this Setup Programming section for the other Model 195Ep’s you will be testing before moving on the Testing Communication section.
  • Page 11 195Ep. Under the Wireless Status heading click on the View Peer Table (Figure 5). The Peer Table will list all other 802.11b or 802.11g wireless activity seen by the 195Ep and how it is classified.
  • Page 12 Ping Testing – The easiest method for testing the efficiency of data flow between the ESTeems is to conduct a Ping test to the opposite modem’s IP address. This will test all links in the Ethernet bridge. Technical Support User’s Manual and Technical Documentation http://www.esteem.com E-Mail Support Support@esteem.com Phone Support (8AM to 5PM PST Monday-Friday)
