Before You Begin
•
The ESTeem Model 195Es wireless Ethernet radio modem is compatible with many different applications. The most
common application is to bridge two or more Ethernet devices. This guide will demonstrate the basic configuration and
testing of a pair of 195Es's. For more detailed information, please see the ESTeem Model 195Es User's Manual.
•
This guide assumes you have a working knowledge of Ethernet networking, TCP/IP protocol and how to identify and set the
TCP/IP address on your computer.
•
The 195Es can be configured using any current web browser software such as Internet Explorer, Netscape or Mozilla.
•
The following procedure will provide an initial communication link between two or more Model 195's for testing purposes.
All the example commands listed in this guide can be adjusted to fit your communication network. Please consult the
ESTeem Model 195Es User's Manual for more details.

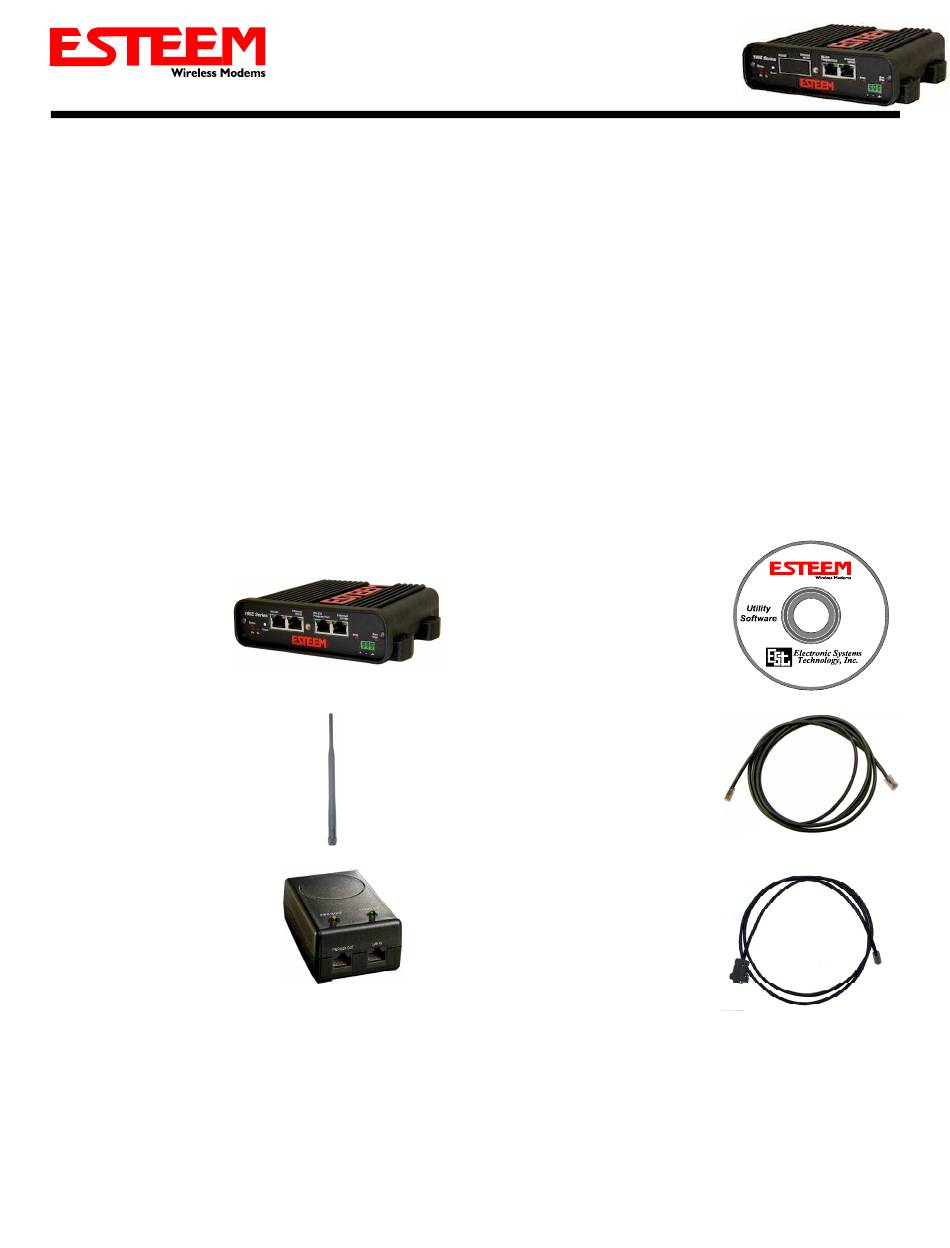

Unpack Contents
Each node in your ESTeem Model 195Es's network may have different hardware components based upon the final installation
location (i.e Outdoor, Indoor, Point-to-point or Muti-Point). Antenna types, cable lengths, power supplies may be different, but
the following items will be required for basic setup:
Model 195Es
Antenna
(AA20DMEs
Displayed)
Power Supply
(AA175 Displayed)
Note: Your accessory model numbers may vary from the above, but you will need to locate each of above items to continue
configuration.
QUICK START GUIDE
MODEL 195Es
AA109 Resource Disk
(2) Ethernet Cables
Serial Interface Cable
(AA6021.1)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ESTeem 195Es
Summary of Contents for ESTeem 195Es
- Page 1 The ESTeem Model 195Es wireless Ethernet radio modem is compatible with many different applications. The most common application is to bridge two or more Ethernet devices. This guide will demonstrate the basic configuration and testing of a pair of 195Es’s. For more detailed information, please see the ESTeem Model 195Es User’s Manual. •...
- Page 2 Front Panel Overview Second RS-232 RS-232 RJ-45 10/100BaseT Reset Switch Ethernet Configuration Data Port Ethernet Port Port Status Aux Power Receive 12 VDC Input Transmit Power over (Auxiliary Ethernet LED Connector ) Antenna Overview...
- Page 3 Begin Programming Assemble the ESTeem Model 195Es using the following: Antenna Connections Power and Data Connection...
- Page 4 Configuration of the Model 195Es is completed through the product’s internal web server. To access this configuration page, you will need to enter the 195Es’s IP address in your web browser. The IP address set at the factory is Class B (i.e.
- Page 5 Double-click on the 195Es you wish to program and the Configure IP Address window will be displayed (Figure 4). Enter an IP address and Subnet Mask for the 195Es that matches your network subnet and press the OK button to save this to the ESTeem.
- Page 6 When prompted, enter admin for both the username and password and press the OK button. Select Setup on the top menu. Press the drop-down menu and select AP Bridge and press the Next button. Step 1 – Sign-In Screen Step 3 – Select AP Bridge...
- Page 7 Set the DHCP services to OFF and press the Next button. Step 4 – Turn DHCP Off Verify the IP address and netmask for the 195Es (listed as bridge device) are correct press the Next button. Step 5 – Verify IP Address...
- Page 8 All 195Es modems in the network must be have the exact same Service Set Identification (SSID). The default SSID is ESTeem and we will use this for demonstration. Enter the SSID as listed above and turn off the wireless security features by selecting the NO radial.
- Page 9 Example Addresses Name Serial Number IP Address Ethernet MAC WLAN MAC Timing Master E-14096 172.16.48.189 00:04:3f:00:01:01 00:04:3f:00:01:02 Opposite 195Es We Will E-14034 172.16.38.114 00:04:3F:00:0B:00 00:04:3F:00:11:02 Create Wireless Link Example E-14096 Configuration Example E-14034 Configuration Step 8 – Setting Timing Master...
- Page 10 10. Press the Commit Changes button and the modem will save all the changes made and reboot. The reboot time is approximately 1 minute to be ready for operation. 11. Complete all steps in this Setup Programming section for the other Model 195Es’s you will be testing before moving on the Testing Communication section.
- Page 11 Status Screen from the Web Interface. After press the Status tab at the top of the screen the Status: Summary will be displayed showing the status of all ports and memory in the 195Es. Under the Wireless Status heading click on the View Peer Table (Figure 5). The Peer Table will list all 195Es in client mode connected to this modem and how it is classified.
- Page 12 Ping Testing – The easiest method for testing the efficiency of data flow between the ESTeems is to conduct a Ping test to the opposite modem’s IP address. This will test all links in the Ethernet bridge. Technical Support User’s Manual and Technical Documentation http://www.esteem.com E-Mail Support Support@esteem.com Phone Support (8AM to 5PM PST Monday-Friday)
