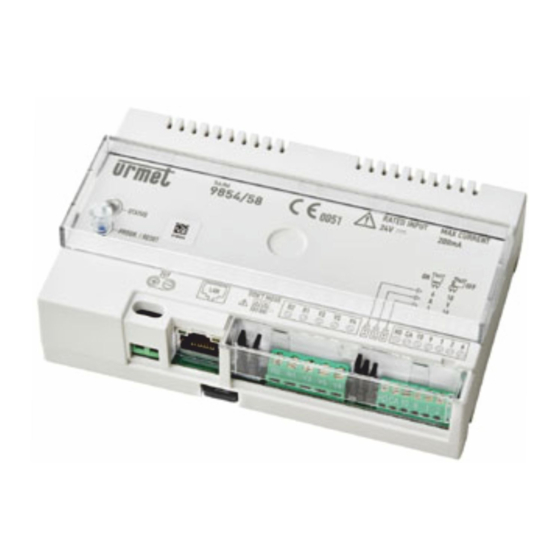

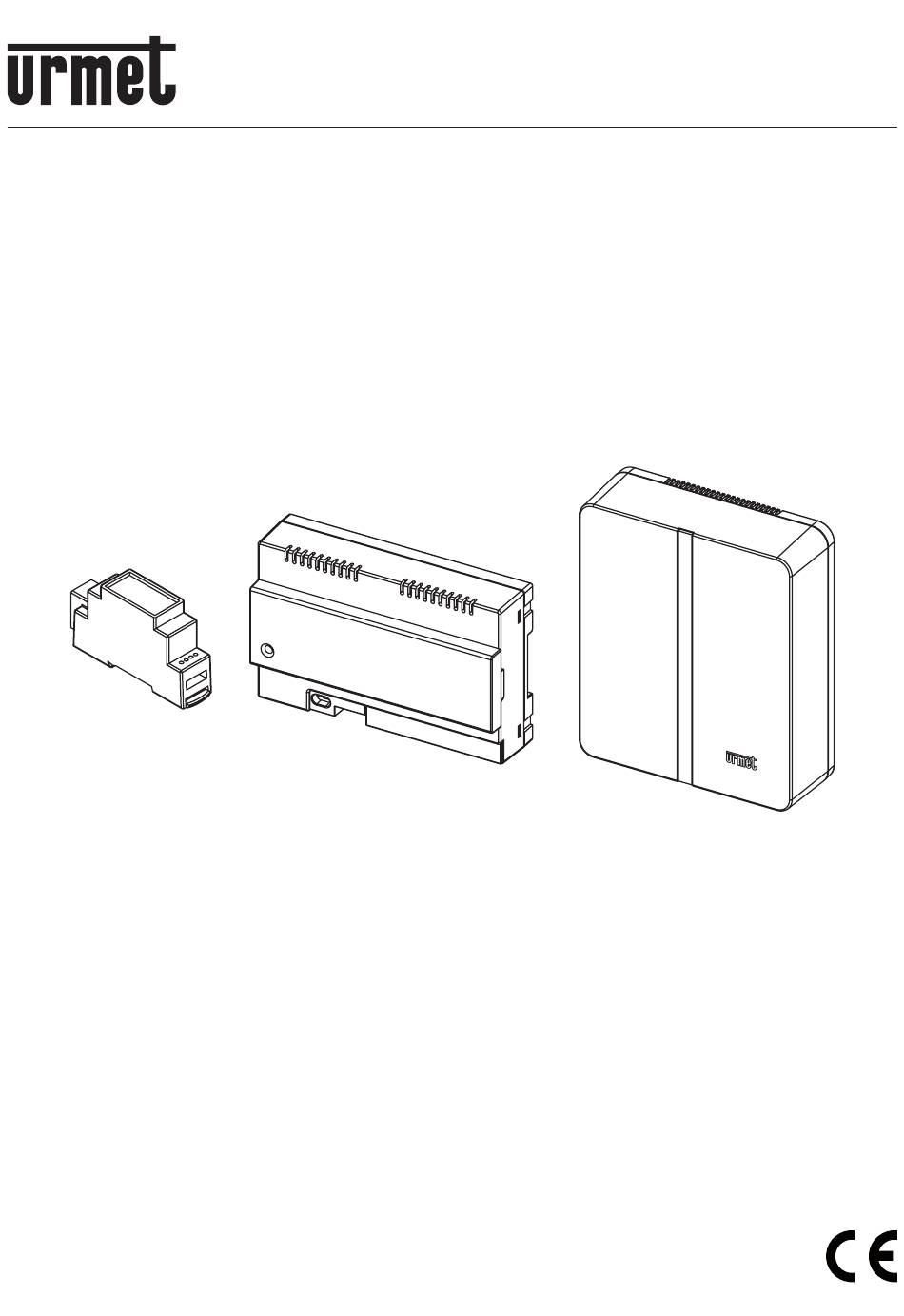

- Page 1 Mod. 9854 DS 9854-007B LBT 20283 CALL FORWARDING DEVICE FOR 4+N Ref. 9854/58 (*) Wall surface mounting kit Ref. 1083/88 COMPLETE USER AND INSTALLER MANUAL...
-
Page 2: Table Of Contents
ENGLISH INDEX USER MANUAL NORMAL OPERATION ........................... 2 1.1. CALL RECEIVING ........................... 2 1.2. INTERCOM FUNCTION BETWEEN SMARTPHONES ..............4 THE Urmet CallMe APP .......................... 5 CREATE A NEW ACCOUNT OR USE A SAVED ACCOUNT ..............6 3.1. CREATE NEW ACCOUNT ....................... 6 3.2. - Page 3 By accessing the notifi cation, you will open the Urmet CallMe App - displayed as follows: After selecting “View camera” Once the conversation has begun, the display will Incoming Call show: There are 3 possible options: 1) Select “View camera”. By clicking on “View camera”...
-
Page 4: Intercom Function Between Smartphones
If your smartphone is being used for a telephone conversation, any video door phone calls cannot be successfully handled corresponding notifi cations will not be shown by the Urmet CallMe App. It will still be possible, however, to answer a video door phone call from the indoor station inside the apartment. -
Page 5: The Urmet Callme App
2. THE Urmet CallMe APP The meaning of the icons and buttons in the Home Page is as follows: Download the application from the Apple Store 1. “Status icon”: (iOS) or from the Play Store (Android). – If the dot is red with an open chain Launch the application taking care to enable this indicates that the user is not logged... -
Page 6: Create A New Account Or Use A Saved Account
Below is the meaning of each key: 1. This is the correct selection if you do not yet have an account with @sip.urmet.com (fi rst access). 2. This should be used if you already have an account. 3. Menu normally only used at a later stage, to make changes to your account (e.g. -
Page 7: Use A Saved Account (Sign In)
By hitting “Sign up” the App will send an email to the specifi ed address, and the user will be redirected to the settings page. In order for the account to become active, you need to log in to your email in-box, retrieve the mail that has just been received and click on the validation link. -
Page 8: Account Management
3.3. ACCOUNT MANAGEMENT The “Manage Your Account” menu item can be used to: — Ask sip.urmet.com to mail you your forgotten username or password (providing you enter the mail address with which your account was fi rst registered). — Change your password. —... -
Page 9: Installer Manual
INSTALLER MANUAL 4. DEVICE CONFIGURATION FROM THE Urmet CallMe APP In order to confi gure the device, you must fi rst have created an account (or logged in using an existing account), as explained in paragraphs 2 and 3. WARNING: the device, once fully operational, will forward calls to the owner of the account that is used in the confi... - Page 10 Connection via Wi-Fi Enter the device name it is essential to select from the dropdown menu the To operate, the device must be connected to (home) network to connect to. your home LAN network and this in turn must be connected via a modem/router to the Internet.
- Page 11 Wi-Fi Switch-off Intervals Advanced Settings After setting the time intervals (as an optional Enter the following values in the empty fi elds: IP operation) press “Continue” to go to the next Address, Subnet Mask, Default Gateway and DNS page. (e.g.: 8.8.8.8) then press “Continue”. Now, it will be possible to choose the VIDEO quality (Default value: LOW) then press “Continue”.
-
Page 12: Urmet Callme Configuration Menu
5. Urmet CallMe CONFIGURATION MENU Confi guration saving After the confi guration has been successfully completed, the following screen will be displayed: App Confi guration Menu Optionally, the Urmet CallMe application can help you to: — Limit incoming calls to periods in which the device is connected to a Wi-Fi network, which will save your SIM card data allowance. -
Page 13: In A Control Panel
only some network parameters. If may 6.1. IN A CONTROL PANEL consequently not work on specifi c 1. Insert the spacer behind the device in its special business IP networks. seat, ensuring that it is locked by the lever A. The Urmet CallMe App must be downloaded to the user’s smartphone, connected to the Internet via a mobile data or Wi-Fi connection, in order to be able... -
Page 14: Wall Mounting With The Kit Ref. 1083/88
6.2. WALL MOUNTING WITH 2. Remove the 2 covers from the device. THE KIT REF. 1083/88 1. Fix the base of the container (supplied in the kit) to the fl ush-mounting box mod. 503 or Ø 60mm as shown in the following fi gures: Box Mod.503 - horizontal n. -
Page 15: Description Of Components
7. Replace the terminal strip cover on the device 6.3. DESCRIPTION OF (the second transparent cover should not be COMPONENTS used because it prevents cover closing). 8. Power on the device. Call Forwarding device for 4+N 9. Complete your parameter confi guration by using the Urmet CallMe App. -
Page 16: Technical Specifications
3. LAN connector: Ethernet port for wired 9: door opener control. connection to the home network. 1: audio output (door phone speaker). 2: audio input (door phone microphone). 4. Jumpers to defi ne the type of power supply 6: audio earth. to the device. -
Page 17: Key To Symbols
DECLARATION OF CONFORMITY Hereby, URMET S.p.A. declares that the radio equipment type: Call Forwarding Device for 4+N Ref. 9854/58 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.urmet.com... -
Page 18: Connection Diagrams
CONNECTION DIAGRAMS 9.1. VIDEO DOOR PHONE SYSTEM WITH ELECTRONIC CALL SV102-3976 24Vcc - + OUTPUT V+ INPUT (VX.008) DS9854-007B... -
Page 19: Door Phone System With Electronic Call
9.2. DOOR PHONE SYSTEM WITH ELECTRONIC CALL SC101-1563 24Vcc - + Jumper A-V: A OUTPUT V+ INPUT (VX.008) DS9854-007B... -
Page 20: Key To Diagrams
Miro door phone for 4+n systems Ref. 1150/xx Signo video door phone Ref. 1740/40 with bracket Ref. 1740/90 Call forwarding device for 4+n Ref. 9854/58 with power supply included Video distributor Ref. 1794/4A From power supply to push button panel...
