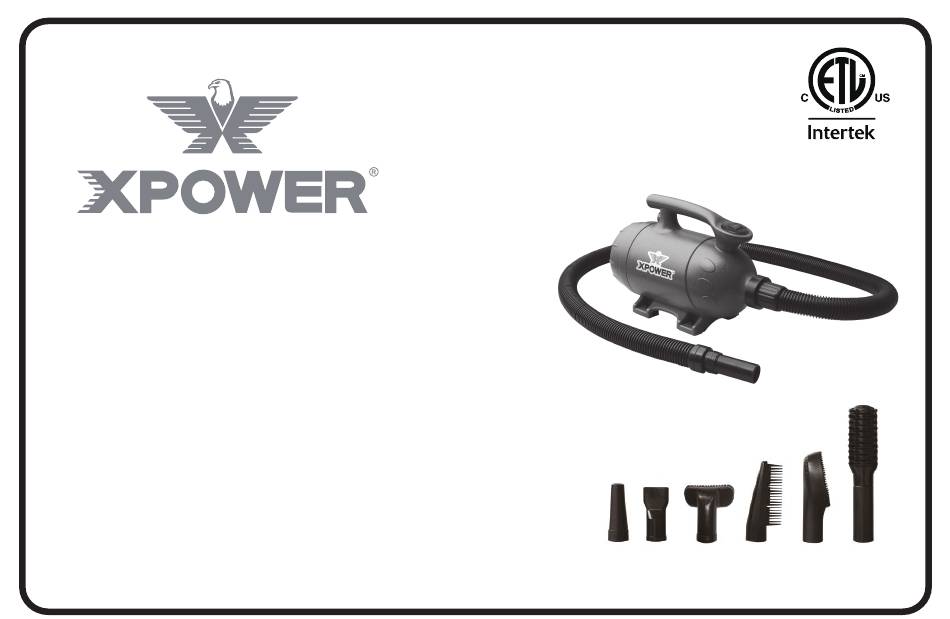

- Page 1 OWNER’S MANUAL Pro-At-Home Pet Dryer + Vacuum Model: B-2 (115V/60Hz) Nozzles included XPOWER MANUFACTURE, INC. 220 Clary Avenue San Gabriel, CA 91776, USA Tel: 626-285-3301 Fax: 626-285-3302 www.xpower.com READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ............................1 Safety Instructions ........................... 2-4 Dryer Operation ..........................5 Vacuum Operation ..........................6 Specifications ............................. 7 Parts List .............................. 8 Maintenance ..........................9-10 Warranty / Service ..........................11... -
Page 3: Introduction
It includes six different styling nozzles and is equipped with two drying speeds to handle a range of different pet coats. The B-2 also multifunctions as a forced air dryer to clean computers, car interiors, and any other small crevices with ease. -
Page 4: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: IMPORTANT SAFETY PRECAUTIONS! PLEASE READ COMPLETELY BEFORE USING PRODUCT! When using electrical appliances, especially when children or animals are present, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including, but not limited to the following: 1. - Page 5 9. WARNING: Never use dryer with a damaged cord or plug, or after the appliance malfunctions or is dropped, damaged, return to an Authorized Service Center for service, examination, repair, or electrical or mechanical adjustment. 10. To disconnect, turn all controls to the off (“O”) position, then remove plug from outlet. 11.
- Page 6 SAVE THESE INSTRUCTIONS HOUSEHOLD and COMMERCIAL USE SERVICING OF DOUBLE-INSULATED APPLIANCES A double-insulated appliance is marked with one or more of the following: The words “DOUBLE INSULATION” or “DOUBLE INSULATED” or the double insulation symbol (square within a square) In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance.
-
Page 7: Dryer Operation
DRYER OPERATION Fig. A 1. Place the dryer on a flat surface. Plug the electrical cord into an outlet. 2. Screw the hose on clockwise to connect to the front hose connector (Fig. A). Attach the desired nozzle. Keep the inlet filter and crossed cover in place on the rear cover. -
Page 8: Vacuum Operation
VACUUM OPERATION 1. Unscrew the hose from the front connector. 2. Remove outer inlet filter and crossed cover of the rear cover (Fig. B). 3. Connect the hose to the rear cover connector (Fig. C) and attach square nozzle. 4. ALWAYS keep air bleed intake hole on the hose open when vacuuming in order to prevent overheating motor (Fig. -
Page 9: Specifications
SPECIFICATIONS Model Volt/Cycle 115V / 60Hz Horse Power Nozzles included 2 HP Amps Unit Weight 7.6 lbs Speeds (Low/Hi) 18,000/22,000 RPM Size (L x W x H) 13” x 6” x 9” Cord Length 10 ft Hose Length 6 ft Overheating Thermal 1 Cone Nozzle... -
Page 10: Parts List
PARTS LIST Left housing Brush 13 Dust case filter Right housing Motor 14 Rear cover Switch Motor rubber sleeve 15 Crossed cover 4 Air outlet grid 10 Dustproof cover 16 Inlet filter 5 Motor rubber sleeve 11 Motor filter 6 Hose 12 Dust case 10 11 - 8 -... -
Page 11: Maintenance
Cleaning Dryer Dust Case, Rear Cover and Filters: The Filter System for the XPOWER Pet Dryer + Vacuum (including dust case, rear cover and become heavily coated, the air output and input of your Dryer + Vacuum will reduce and this may cause damage to the motors or cause the motors to overheat. -
Page 12: Maintenance
Vacuum & Filter Maintenance 2. Remove the complete set of 1.Turn the rear cover 3. Dump the collected dust and rear cover from the counter-clockwise to debris from the dust case. remove the cover. unit. Hold the rear cover on top so that the debris remain collected in the dust case. -
Page 13: Warranty / Service
XPOWER Manufacture, Inc. warrants this product to be free from defects in material and workmanship for a period of hoses and power cords are excluded from the warranty. The liability of XPOWER is limited solely to the cost of the repair or replacement of parts/the unit at XPOWER’s discretion. - Page 14 B-55 B-53 XPOWER also has a complete professional grooming line, which provides Force Dryers, Stand Dryers, Cage Dryers and Purifying System. Please visit our website XPOWER.WS for more information. - 12 -...
- Page 15 Warranty Registration (for US customer only) For your product warranty, please complete and mail / fax this form to XPOWER MANUFACTURE, INC. Address: 220 Clary Ave., San Gabriel, CA 91776. Tel: 626-285-3301 Fax: 626-285-3302 (For your convenience, register your product online at xpower.com)
- Page 16 From: XPOWER MANUFACTURE, INC. 220 Clary Avenue San Gabriel, CA 91776, USA Tel: 626-285-3301, Fax: 626-285-3302...
