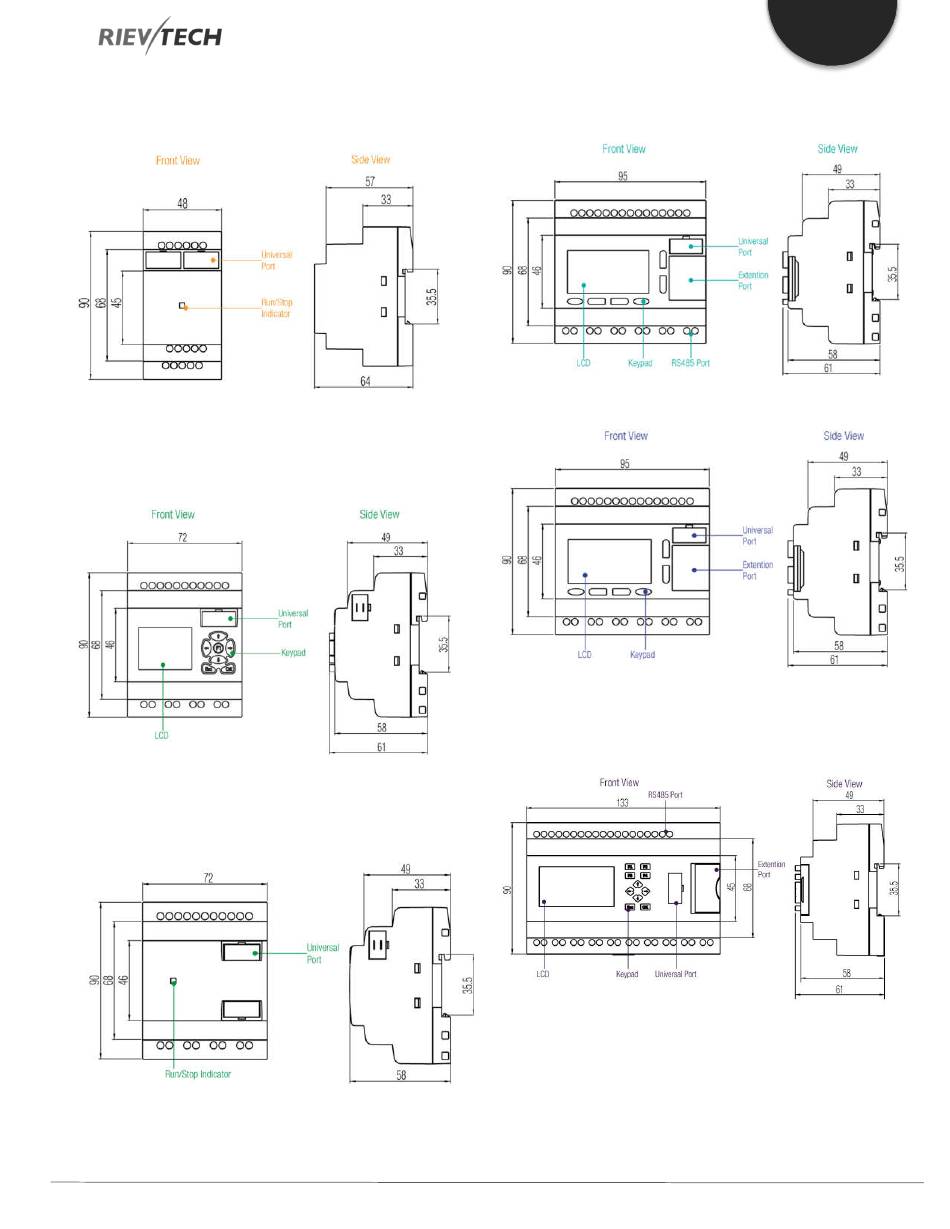

3.4. Structure & Dimensions
PR-6 Series CPU and EXM-E Expansion Modules
Figure 4 PR-6 Dimensions
PR-12 Series with LCD
Figure 5 PR-12 Dimensions
PR-12 Series without LCD
Figure 6 PR-12-E Dimensions
Programmable Relay ● User Manual for ELC and PR Series
PR-14 and PR-18 Series
Figure 7 PR-14 Dimensions
Figure 10 PR-18 Dimensions
PR-24 Series
Figure 8 PR-24 Dimensions
