Description; Case And Components - HomeAgain UNIVERSAL WORLDSCAN READER PLUS User Manual

1.

Description

The device can read a wide range of technologies: FDX-B ISO, HDX ISO, FDX-A (FECAVA), Trovan and Avid
Encrypted. UWSR+ can also read and display the Microchip Temperature™ when reading microchips with tem-
perature sensing implants from Destron Fearing™ or Allflex
In addition to its microchip reading functions, the UWSR+ scanner can store up to 3000 IDs, each associated
with a time/date stamp in its internal memory and transmit them to a personal computer via an USB cable or
wirelessly using Bluetooth
2.

Case and Components

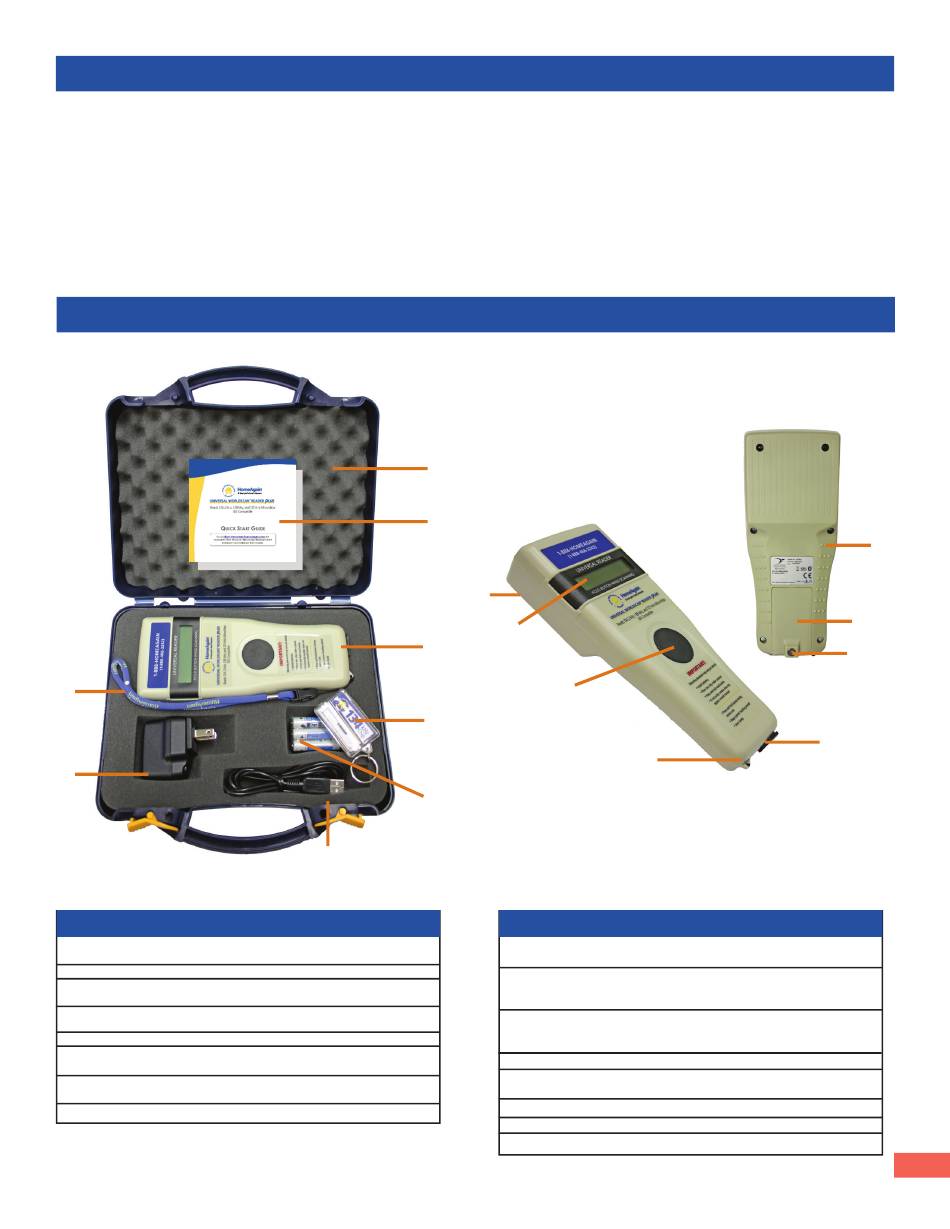

Figure 1 – Packing
3
4
Table 1 - Packing list
Item Features Description of use
1 Plastic case
2 Guide
3 Lanyard
4 Wall adapter
5 Reader
6 Key chain with test
microchip
7 Rechargeable NiMH
battery
8 USB Cable
.
®
8
Use to transport the reader in a
robust case
Quick Start Guide
Helps prevent drops and keeps
hands free.
Power Supply – Powers reader and
charges batteries.
Universal WorldScan™ Reader Plus
1 microchip to demonstrate and
test reading capabilities.
Supplies power to the reader.
Conveys data to and from reader.
.
®
Figure 2 - Reader features and user interface.
1
2
1
2
5
3
6
7
Table 2 - Reader features and description of use
Item Features
1 Antenna
2 Large graphical
readout with
backlight
3 "SCAN" button
4 Eyelet
5 USB port cover
6 Handle grip
7 Battery cover
8 Battery cover screw
4
Description of use
Emits activation signal and receives
RFID microchip signal.
Displays information about current
reader status.
Applies power and causes
activation signal to be emitted for
reading microchips
Eyelet to place the lanyard
Protector for electrical interface for
attaching USB cable.
Anti-slip griping surface
Cover to access battery
Screw on battery cover
6
7
8
5
3
