Summary of Contents for Maxwell VWC 1000 50TDC

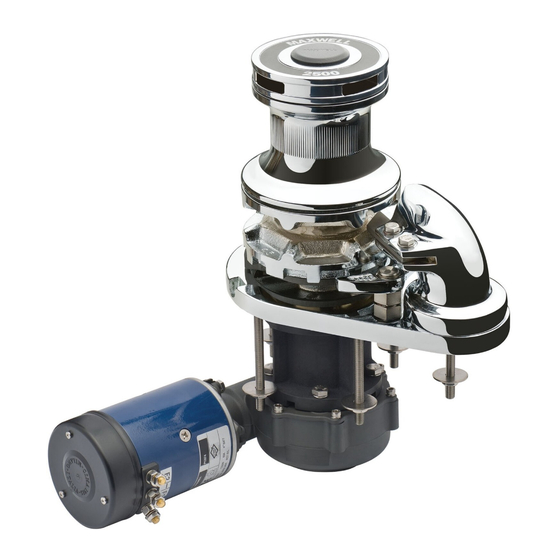

- Page 1 1000 & 1500 Windlass Manual...
- Page 2 VETUS–MAXWELL APAC Ltd Copyright Vetus-Maxwell APAC Ltd. All rights reserved. Vetus-Maxwell APAC Ltd reserves the right to make engineering refinements on all products without notice. Always consult manual supplied with product as details may have been revised. Illustrations and specifications are not binding as to detail.
-
Page 3: Table Of Contents
The following resources are included at the back of this manual: Deck Cutout Details Warranty Form Contact Details (on back cover) Note: For your nearest retailer, service agent or representative please refer to our website www.maxwellmarine.com Vetus-Maxwell APAC Ltd 1000 1500 Windlass... -
Page 4: Preliminary Information
Preliminary Information Introduction Congratulations on your purchase of a Maxwell windlass. Please read these instructions carefully to enable you to correctly install and maintain the windlass for years of trouble-free operation. Note Failure to follow the correct installation, operation or maintenance instructions will jeopardise your safety and could invalidate the warranty. -
Page 5: Important Safety Information
Always turn the circuit breaker/isolator switch off when the windlass is not in use and before you leave the boat. • Tie the end of the anchor chain rode to a secure fixture in the chain locker. • Do NOT use the windlass to haul a person up a mast. Vetus-Maxwell APAC Ltd 1000 1500 Windlass... -
Page 6: Parts Of The Windlass
VW and VWLP Windlass Parts Fig 1: VW and VWLP Windlass Parts 1000 1500 Windlass Vetus-Maxwell APAC Ltd... - Page 7 **P101627 = 50mm TDC, P101628 = 100mm TDC, P101629 = 150mm TDC **P101612 = 50mm TDC, P101613 = 100mm TDC, P101614 = 150mm TDC **P101664 = 50mm TDC, P101665 = 100mm TDC, P101666 = 150mm TDC Vetus-Maxwell APAC Ltd 1000 1500 Windlass...
- Page 8 VWC and VWCLP Windlass Parts Fig 2: VWC and VWCLP Windlass Parts 1000 1500 Windlass Vetus-Maxwell APAC Ltd...
- Page 9 VWC and VWCLP Windlass Parts List Vetus-Maxwell APAC Ltd 1000 1500 Windlass...
-
Page 10: Parts Of The Gearbox
Gearbox Parts (44:1 & 56:1) Drainage Slot Location of serial number Fig 3: Gearbox Parts (44:1 & 56:1) 1000 1500 Windlass Vetus-Maxwell APAC Ltd... - Page 11 Capscrew - M6 x 40 SP0159 Sight Glass P90006 50(x2),52,56,57,64 O-Ring P90006 50(x2),52,56,57,64 Wormbox P101625 53,58 Bearing P90007 59,61,62,63 Worm 44:1 5950 Worm 56:1 3400 Bearing P90007 59,61,62,63 Circlip P90007 59,61,62,63 Circlip P90007 59,61,62,63 Oil Seal P90006 50(x2),52,56,57,64 Vetus-Maxwell APAC Ltd 1000 1500 Windlass...
-
Page 12: Ordering Spare Parts
When ordering spare parts, please refer to the parts list above and quote the following details. Windlass Model VWCLP VWLP 50TDC 100TDC 150TDC Serial number (located on gearbox housing – Fig 3 Page 8) Power supply Part details Part number Description Quantity Refer back cover for contact details. 1000 1500 Windlass Vetus-Maxwell APAC Ltd... -
Page 13: Chain Selection Guide
Chain Selection THE MAXWELL WINDLASSES ARE DESIGNED FOR ALL CHAIN SYSTEMS USING: 6-10mm (1/4” – 3/8”) short link Your Windlass should have a rating of approximately 3 times total combined weight of the anchor and chain. The ground tackle should have been selected taking into account: Boat size, displacement and windage. -
Page 14: Installation
This arrangement allows the chain to have maximum engagement with the chainwheel. The bow roller should have a vertical groove to suit the profile of the chain. This will align the chain so that it enters the chainwheel without twisting. 1000 1500 Windlass Vetus-Maxwell APAC Ltd... -
Page 15: Installation Instructions
DO NOT OVER FILL! Use the gasket supplied to seal the windlass to the deck. For aluminium boats fit a non-conductive gasket to insulate the deckplate from the deck to prevent electrolysis. Vetus-Maxwell APAC Ltd 1000 1500 Windlass... - Page 16 Upper Nut When tightening the cables to the motor, ensure the lower nut is secure against turning when tightening the upper nut. This will prevent damage occurring within the motor. Lower Nut 1000 1500 Windlass Vetus-Maxwell APAC Ltd...
- Page 17 We recommend, after completing installation, you spray the top works of the windlass with CRC 3097 “long life” and wrap the windlass with plastic film and tape. Vetus-Maxwell APAC Ltd 1000 1500 Windlass...
-
Page 18: Wiring Instructions
The below-deck part of the footswitch must be in a dry environment and the breather holes must be kept clear. The arrows on the footswitches should be arranged to indicate the direction of operation. 1000 1500 Windlass Vetus-Maxwell APAC Ltd... - Page 19 Wiring schematic (series wound motor) Vetus-Maxwell APAC Ltd 1000 1500 Windlass...
- Page 20 Wiring schematic (Hydraulics) 1000 1500 Windlass Vetus-Maxwell APAC Ltd...
- Page 21 Wiring schematic (Hydraulic motor) Vetus-Maxwell APAC Ltd 1000 1500 Windlass...
- Page 22 Pressure/flow quoted in the specifications section, assumes operation at rated capacity with standard motor fitted. Levels below that specified can be accommodated by a motor change. Contact Maxwell Marine Ltd, for a representative. who can help with this selection. 1000 1500 Windlass Vetus-Maxwell APAC Ltd...
-
Page 23: Operation
4. Motor up to the anchor while retrieving it. Do not use the windlass to pull the boat to the anchor. 5. To avoid damaging the bow fitting, retrieve the last metre (3’) of rode very slowly and take care when docking the anchor. Vetus-Maxwell APAC Ltd 1000 1500 Windlass... -
Page 24: Free Falling The Anchor
Tip: Mark the chain at suitable intervals with coloured line, or purchase and install a Maxwell AutoAnchor rope/chain counter. Note To avoid applying the full force of the windlass to the bow fitting when docking the anchor, adjust the clutch nut so that there is some slippage when docking the anchor. -
Page 25: Maintenance
Regular use of CRC3097 “Long Life” will assist maintaining the bright chrome finish. Natural lustre of bronze units can be restored by polishing with mild abrasive liquid polish. DO NOT use on chrome units. Vetus-Maxwell APAC Ltd 1000 1500 Windlass... - Page 26 A replaceable roll pin is a press fit in the output end of the drive shaft. 12V and 24V Motors Providing the windlass is properly installed with the Maxwell Overload Control Box and Breaker Panel, and the windlass is not abused, trouble free operation can be expected.
-
Page 27: Trouble Shooting Guide
Check that the key between the shaft and the gearbox is installed. • If the windlass does not rotate smoothly or there is excessive noise, the gearbox may be damaged. • Check the motor drive pin by unbolting the motor from the gearbox. Vetus-Maxwell APAC Ltd 1000 1500 Windlass... -
Page 28: Reference Information
Viscosity ISO 32 - ISO 68 @ 20-50ºC * *Suitable oils: Shell Rimula X 15W-40; Shell Myrina M 15W-40; Penzoil SAE 10W-40; Texaco 2109 SAE 15W; Texaco 1814 SAE 10W40. BP HLPHM 32-68; Castrol Hysin AWS 32-68; BP Autrans T0410. 1000 1500 Windlass Vetus-Maxwell APAC Ltd... -
Page 29: Dimensions
Dimensions - VWC Vetus-Maxwell APAC Ltd 1000 1500 Windlass... - Page 30 Dimensions – VW 1000 1500 Windlass Vetus-Maxwell APAC Ltd...
- Page 31 Dimensions – VW horizontal arrangement Vetus-Maxwell APAC Ltd 1000 1500 Windlass...
-
Page 32: Typical Greasing Instructions
Use CRC 3097 (or equivalent) spray to coat all under deck components to help guard against corrosion. Failure to do so will void warranty. Apply Apply grease here grease here Apply Apply grease here grease here Apply Apply grease here grease here 1000 1500 Windlass Vetus-Maxwell APAC Ltd... - Page 37 LIMITED WARRANTY Warranty: Vetus-Maxwell provides a three year limited warranty on all windlasses for pleasure boat usage, and a one year limited warranty for those systems used on commercial or charter vessels. Warranty, service and parts are available around the world. Contact your nearest Vetus-Maxwell office for a complete list of service centres and distributors.
