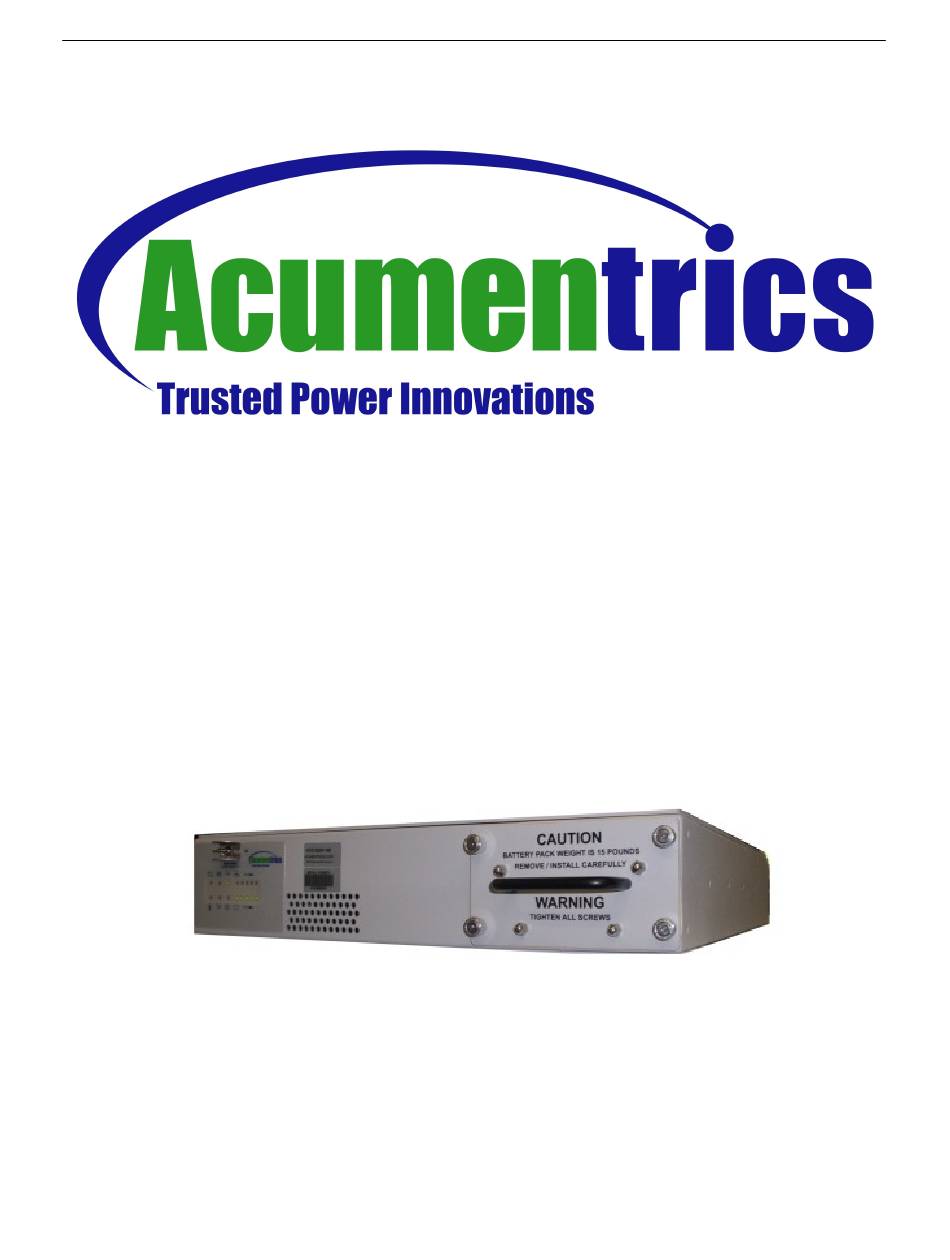

Page 1: 1252 Rugged-Ups Series
Operator’s Guide for Rugged-UPS 1252 Series ™ ™ ™ ™ 1252 Rugged-UPS Series 91-0120 Rev. B © Acumentrics Corporation 2007-2008... - Page 2 An issue or revision date for this manual is shown at the bottom of each page. If more than three years have elapsed since this date, contact Acumentrics Corporation to determine if additional product information updates are available. The latest revision of the manual is also available at www.acumentrics.com.
-
Page 3: Table Of Contents
Controls & Indicators of Rugged UPS™ Series..................12 Front Bezel ..........................12 Rear Panel Rugged UPS......................14 Rugged UPS Series Model Numbers and Options: ..............14 Acumentrics Part Numbering System ..................... 14 Setup ............................... 15 SNMP Capability and Operation ......................15 Start-Up ..............................20 Extended Run Modules ........................... - Page 4 Operator’s Guide for Rugged-UPS 1252 Series Inspection ............................ 29 Cleaning............................29 Troubleshooting Procedures ........................29 END................................. 31 91-0120 Rev. B © Acumentrics Corporation 2007-2008...
-
Page 5: Section 1

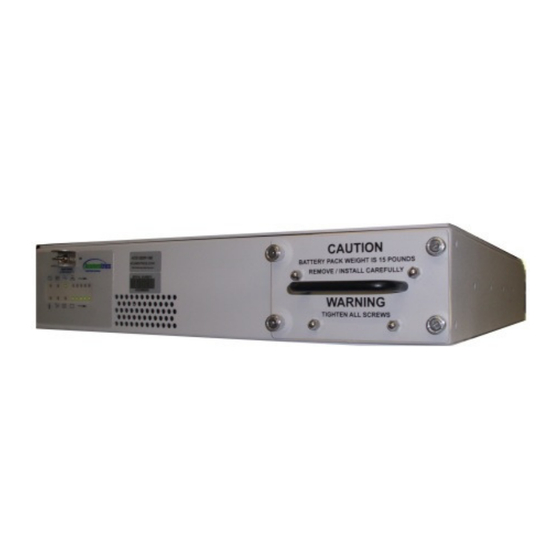

Product Description The Acumentrics Rugged-UPS™ 1252 is specifically designed for worldwide deployment in harsh physical and electrical environments. The Rugged-UPS™ 1252 provides 1250VA of nominal 115VAC output from an input of 80-265VAC 47-440Hz or 22-32 VDC (optional 20-32 VDC). This wide voltage and frequency tolerance enables the rugged series to operate from generators in the field, or any international power standard. -
Page 6: Important Safety Instructions
• Battery replacement should be performed by personnel familiar with the danger of batteries. Keep unauthorized personnel away from the batteries. 91-0120 Rev. B © Acumentrics Corporation 2007-2008... -
Page 7: How To Use This Manual
Please read thoroughly the Safety Considerations and Warning Section. Manual Updates Acumentrics Corporation provides manual updates to inform customers of changes in device information and use. The updates will be available at the Acumentrics website www.acumentrics.com. All users should carefully review each manual update to understand its significance and then file it in its appropriate section within this manual for subsequent reference. -
Page 8: Symbols Used On The Equipment
RECYCLE batteries. This UPS contains sealed lead-acid batteries that must be recycled. DANGER Risk of explosion if used in the presence of flammable anesthetics. Alternating current. Equipotentiality. Fusible link. Protective (earth) ground terminal. 91-0120 Rev. B © Acumentrics Corporation 2007-2008... -
Page 9: Warranty
Information Life Support Policy As a general policy, Acumentrics Corporation does not recommend the use of any of its products in life support applications where failure or malfunction of the Acumentrics product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Acumentrics does not recommend the use of any of its products in direct patient care. -
Page 10: Specifications
14 lbs (6kg) Voltage Two each 12V / 9Ah Recharge Time 4 hours to 90% of present capacity 4 minutes at full load typical. Operating Time LED indicators on the front panel. Low Battery Indicator 91-0120 Rev. B © Acumentrics Corporation 2007-2008... -
Page 11: Diagnostics
If this occurs, turn the unit OFF and then ON, and recheck the indicators. Contact authorized personnel if any one of the indicators remains illuminated and is NOT justified. 91-0120 Rev. B © Acumentrics Corporation 2007-2008... -
Page 12: Section 2
The Fan Intake pulls air into the Rugged-UPS 1252™ to assist with the cooling of the system. Air is exhausted through the rear outlet of the device. Ensure that both the fan intake and rear exhaust are NOT obstructed so that the operation of the Rugged-UPS-1252 is not compromised. 91-0120 Rev. B © Acumentrics Corporation 2007-2008... - Page 13 This indicator will remain illuminated and an audible tone will continuously sound when the Rugged UPS™ internal operating temperature has exceeded safe operating limits. The Rugged UPS™ will shut down if the condition persists. 91-0120 Rev. B © Acumentrics Corporation 2007-2008...
-
Page 14: Rear Panel Rugged Ups
“R”- Represents AC Input Represents a device with continuous output power of 1250 VA / 1000W. NOTE: When a particular designation is missing from the Part Number then that option is NOT present in the device. 91-0120 Rev. B © Acumentrics Corporation 2007-2008... -
Page 15: Setup
USM user – “initial” Authorized algorithm – MD5 Privacy algorithm – DES Authorized password – none Privacy password – none MAC ID: 00:40:9D:2B:6C:FB (unique to each module and will be labeled on unit) 91-0120 Rev. B © Acumentrics Corporation 2007-2008... - Page 16 UPS will be unable to sustain battery the present load when and if the utility power is lost (including the possibility that the utility power is currently absent and the UPS is unable to sustain the output). 91-0120 Rev. B © Acumentrics Corporation 2007-2008...
- Page 17 4: bypass opened the output breaker. 5: battery 6: booster 7: reducer upsObjects(1).upsOutput(4) upsOutputVoltage(2) The present output voltage. Read .upsOutputTable(4).upsOutputEntry(1) upsObjects(1).upsOutput(4). upsOutputPower(4) The present output true power. Read 91-0120 Rev. B © Acumentrics Corporation 2007-2008...
- Page 18 Trap The UPS is operating on battery Read power. This trap is persistent and is present at one minute intervals until the UPS either turns off or is no longer running onbattery. 91-0120 Rev. B © Acumentrics Corporation 2007-2008...
- Page 19 The output of the UPS is in the off Read state. Off(14) upsObjects(1).upsAlarm(6).upsWellKnownAlarms(3) UpsAlarmUpsSystem The UPS system is in the off state. Read Off(15) upsObjects(1).upsAlarm(6).upsWellKnownAlarms(3) upsAlarmGeneralFault(18) A general fault in the UPS has been Read detected. 91-0120 Rev. B © Acumentrics Corporation 2007-2008...
-
Page 20: Start-Up
Extended Run Battery Pack – the UPS’s internal battery pack or AC input power / optional DC input power must be present for added safety. The LED Panel Indicator is illuminated when the unit is charging / discharging, or when in stand-by mode. 91-0120 Rev. B © Acumentrics Corporation 2007-2008... -
Page 21: Operation
The audible alarm sounds in a variety of ways to indicate different alarms symptoms. These alarms are associated with various status indicators. Refer to the list below. Alarm Indicators Cause Two (2) beeps every 15 seconds Internal DC indicator illuminated. Output power is being supplied by 91-0120 Rev. B © Acumentrics Corporation 2007-2008... -
Page 22: Shutdown Procedures
DC Input Accepts ACG9202 cable DC Output Accepts ACG9203 Communications Port (9-pin) Accepts ACG9236 (DB9) simple signal, RS-232 uses cable PN ACG9270 Auxiliary Port Used only for device programming by manufacturer (DB25) SNMP Port 91-0120 Rev. B © Acumentrics Corporation 2007-2008... -
Page 23: Pin Connections
Connections are safe. 25 Pin Auxiliary Connector (Viewed from the back of the Male Mating Connector) Momentary Spot Toggle Switch For further details pertaining to Remote Operation contact Acumentrics Corporation. Communications Interface Pin Out Functionality (DB9): Simple signal uses cable PN ACG9236... -
Page 24: Pin Out Specifications
???.? Last power recorded when went into overload) ???.? Last VA recorded when went into overload Pin Out Specifications: Acumentrics does not warranty the ACG1252 Series devices against damages caused NOTE: by cables manufactured by any parties other than the Acumentrics Corporation. - Page 25 Operator’s Guide for Rugged-UPS 1252 Series Legend : Signifies Pin Signifies Pin socket AC Input Pin Out Functionality: Plug Part Number MS3476W14-4S To line To Neutral To Ground Not Used 91-0120 Rev. B © Acumentrics Corporation 2007-2008...
- Page 26 Warning DO NOT USE THIS CABLE IN A 230VAC APPLICATION Plug Part Number MS3476W14-4P To line To Ground To Neutral Not Used Optional DC Input Pin Out Functionality: Plug Part Number CA3102E20-14PBF80 V+ IN V- (RTN) IN 91-0120 Rev. B © Acumentrics Corporation 2007-2008...
- Page 27 Optional DC Output Pin Out Functionality: Plug Part Number MS3476L14-04P Not Used Black-Negative Not Used White-Positive Optional Extended Run Pin Out Functionality: Plug Part Number CA3102E20-14SBF80 SENSE/CONTROL + BATT V+ CHASSIS GND BATT V- SENSE/CONTROL - 91-0120 Rev. B © Acumentrics Corporation 2007-2008...
-
Page 28: Section 3
All Acumentrics battery packs are shipped fully charged. They should be stored separately from the UPS and used on a FIFO (First In, First Out) basis. All battery packs should be recharged before use if 100% capacity is required. -
Page 29: General Maintenance
Chlorine bleach (30ml/water) • Acumentrics Corporation recommends cleaning the device and cables with a soft damp cloth, and cleaning agents mentioned. Do NOT immerse any part of the device in water. Do not use ketones (MEK, acetone, etc.). Avoid using abrasives (e.g., paper towels) on the device. - Page 30 Verify the unit is plugged into a known good AC • illuminated. power source. Verify the output power cable is securely • connected to the UPS. Verify a known good battery pack module is fully • inserted and secured in the UPS. 91-0120 Rev. B © Acumentrics Corporation 2007-2008...
- Page 31 Operator’s Guide for Rugged-UPS 1252 Series END. 91-0120 Rev. B © Acumentrics Corporation 2007-2008...
