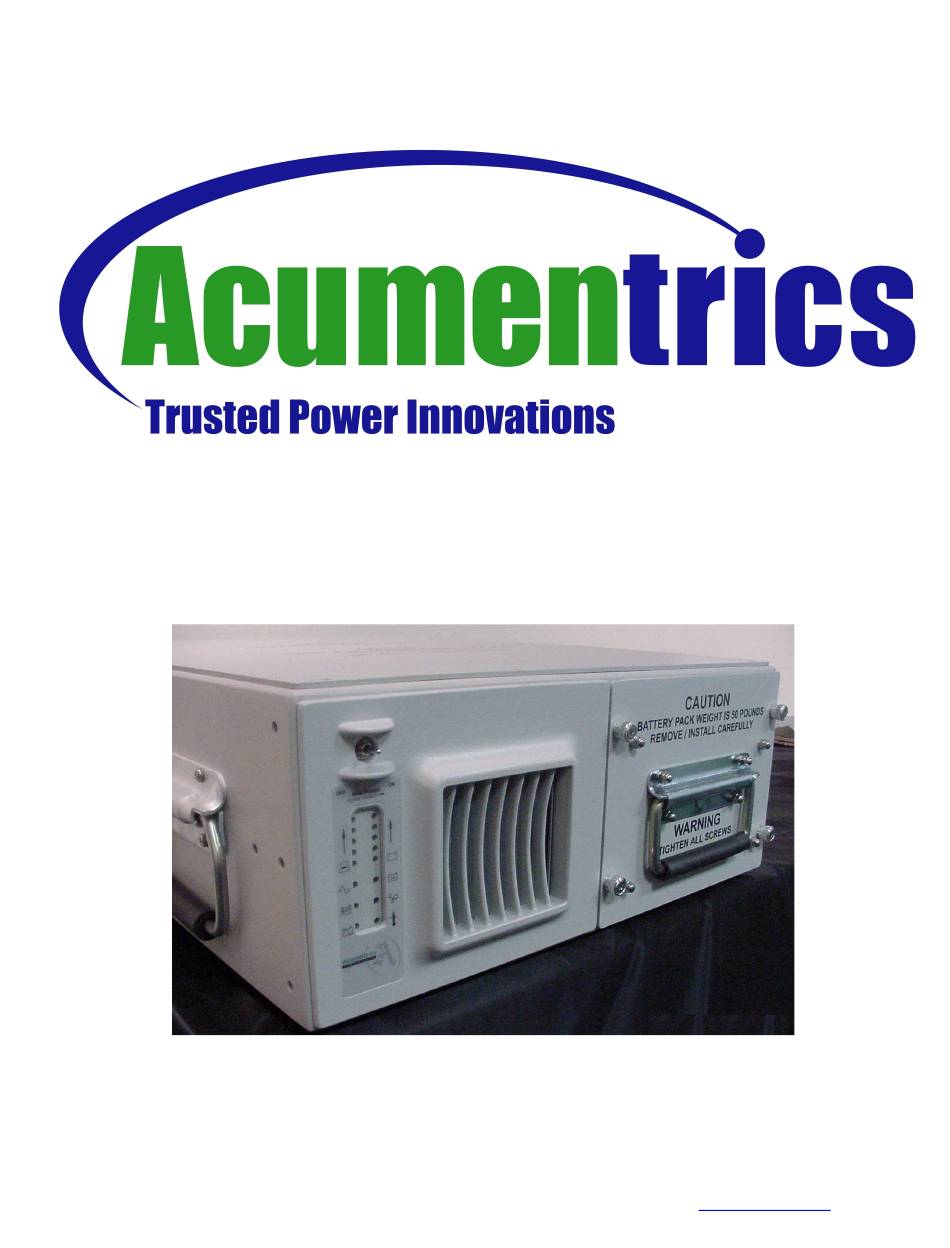

- Page 1 Parallel Operations Manual for Rugged-UPS 2500 Series ™ Rugged-UPS 2500 Series Part Number: 91-0086 Rev. D World Wide Web Site: http:// www.acumentrics.com 20 Southwest Park Westwood, MA. 02090 Phone: (800)-332-0277 Fax: (781)-461-1261...
- Page 2 • units to be paralleled. The 6-pin Mini Din located on one end of the PRIMARY Parallel Cable is for connection to Acumentrics’ • optional ACG9223 cable for remote on/off control of the parallel string. Ensure the slide lock is engaged so that the connector will not disconnect when pulled.
- Page 3 Parallel Operations Manual for Rugged-UPS 2500 Series Connect the Female Connector End of the PRIMARY Parallel Cable to the Male Connector End of the • SECONDARY Parallel Cable. NOTE: If more than two units are to be connected in parallel, Female Connector End on first SECONDARY Parallel Cable should be connected to male end of next Secondary Parallel Cable.
- Page 4 Turn ON AC input circuit breaker located in the rear of the SECONDARY device. • Turn ON SECONDARY unit with front panel switch. • Parallel Operation is ONLY possible using Acumentrics supplied control cables. Refer to documentation supplied with cables for Parallel Operation. Remote Operation (ACG9223 Optional Cable) CAUTION: If AC Outputs are NOT connected properly hazardous voltages may exist in the devices.
- Page 5 Parallel Units Operated As Standalone There may be occasions where it is desirable or necessary to operate an Acumentrics ACG2500 Series parallel unit in a situation where it is not part of a parallel configuration, or needs to be isolated for verification. This is possible by using an adapter Acumentrics part number ACG9249.
