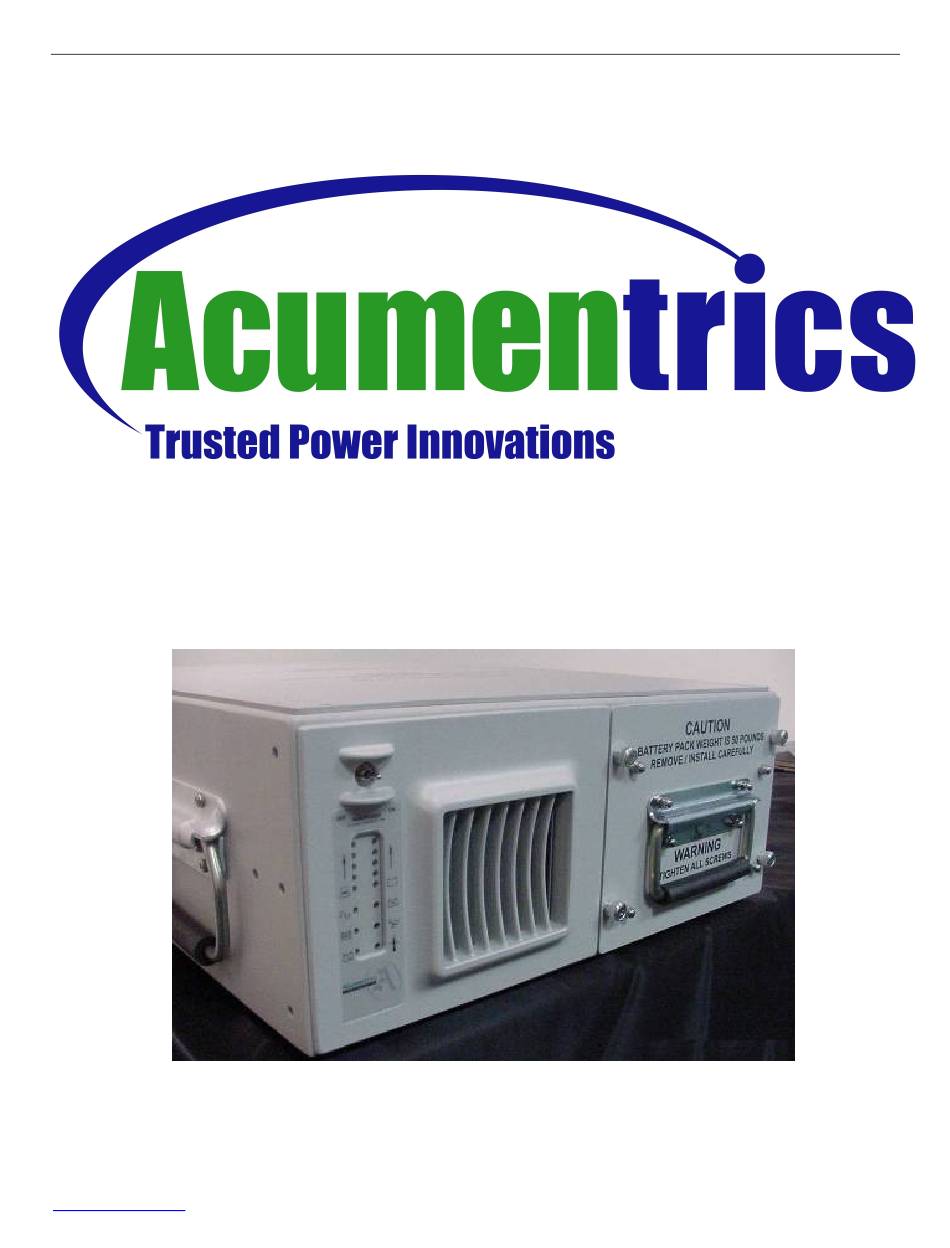

- Page 1 Operator’s Guide for Rugged-UPS 2500 Series ™ Rugged-UPS 2500 Series Page 1 of 33 Part Number: 91-0063 Rev. F 9/15/09 www.acumentrics.com 20 Southwest Park Westwood, MA. 02090 Phone: (800)-332-0277 Fax: (781)-461-1261...
- Page 2 Operator’s Guide for Rugged-UPS 2500 Series Please refer to company website @ www.acumentrics.com for the latest version of this manual and additional product availability. The most recent manual revision date is listed on the front page of this manual. Rugged-UPS is a registered trademark of Acumentrics Corporation.
-
Page 3: Table Of Contents
Operator’s Guide for Rugged-UPS 2500 Series Operation Topology ..............................4 Important Safety Instructions............................5 How to use this Manual ............................6 Manual Updates................................6 Unpacking.................................6 Diagnostics ................................6 Symbols Used on the Equipment ..........................7 Rugged UPS Series Model Numbers and Options ....................8 Warranty ...................................9 Life Support Use Information............................9 Specifications................................10... -
Page 4: Operation Topology

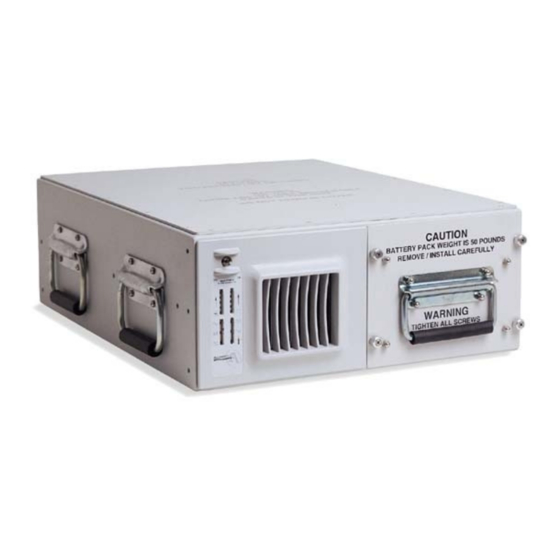

Product Description The Acumentrics Rugged-UPS™ 2500 is an ON-LINE Power Factor Corrected (PFC), Uninterruptible Power Supply (UPS). This UPS accepts a wide range of voltage and frequency inputs to allow it to provide clean, reliable AC power to sensitive electronic equipment. -
Page 5: Important Safety Instructions
Operator’s Guide for Rugged-UPS 2500 Series Important Safety Instructions Save These Instructions. This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries. Please read all instructions before operating the equipment and save this manual for future reference. -
Page 6: How To Use This Manual
Please read thoroughly the Safety Considerations and Warning Section. Manual Updates Acumentrics Corporation provides manual updates to inform customers of changes in device information and use. These updates are available at http:// www.acumentrics.com. All users should carefully review each manual update to understand its significance and then file a copy of all revisions in the appropriate section within this manual for subsequent reference. -
Page 7: Symbols Used On The Equipment
Operator’s Guide for Rugged-UPS 2500 Series Symbols Used on the Equipment Any or all of the following symbols may be used in this manual or on the equipment. DANGER High Voltage present. This symbol alerts the user of un-insulated “dangerous high voltage” within the product’s enclosure that may be hazardous to the user and nearby personnel. -
Page 8: Rugged Ups Series Model Numbers And Options
Operator’s Guide for Rugged-UPS 2500 Series Rugged UPS Series Model Numbers and Options SNMP Option ACG2500- U – i – 24.#K – XR – SH – P-N Parallel Option. P – This device can ONLY be used in Parallel operation. -
Page 9: Warranty
Acumentrics does not recommend the use of any of its products in direct patient care. Acumentrics will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Acumentrics that (a) the risks of injury or damage have been minimized, (b) the customer assumes all such risks, and (c) the liability of Acumentrics is adequately protected under the circumstances. -
Page 10: Specifications
Operator’s Guide for Rugged-UPS 2500 Series Specifications General (4U) 7” high x 17” wide x 21” deep Size Weight 134 lbs. (with battery pack) 85.5 lbs. (with no battery pack) Input Specifications Input AC Voltage 80-265 VAC 22 – 32 VDC... -
Page 11: Operation
Operator’s Guide for Rugged-UPS 2500 Series Section 2 Operation Controls & Indicators of Rugged UPS™ ™ ™ ™ Series Front Bezel This section illustrates and describes the controls, indicators, ports, & connectors. Fan Intake On/Off Battery Load AC Line Rep Battery... - Page 12 Operator’s Guide for Rugged-UPS 2500 Series 1. ON/OFF – Alarm Disable Switch The self-centering toggle switch is capable of turning the Rugged UPS™ ON, OFF, and disabling the audible alarm. Briefly hold switch in the ON position to supply power to the Rugged UPS™ and enable the audible alarms.
-
Page 13: Rear Panel Rugged Ups
Operator’s Guide for Rugged-UPS 2500 Series This indicator will remain illuminated and an audible tone will continuously sound when the Rugged UPS™ internal operating temperature(s) has exceeded safe operating limits. The Rugged UPS™ will shut down if the condition persists. -
Page 14: Operation
Operator’s Guide for Rugged-UPS 2500 Series Operation Setup (non-parallel) Ensure the AC Circuit Breaker, located in the rear of the device, is OFF. • Connect ground wire to ground stud, located in the rear of the unit, and secure with wing nut. -
Page 15: Setup (Parallel)
• units to be paralleled. The 6-pin Mini Din located on one end of the PRIMARY Parallel Cable is for connection to Acumentrics’ • optional ACG9223 cable for remote on/off control of the parallel string. Ensure the slide lock is engaged so that the connector will not disconnect when pulled. -
Page 16: Start-Up (Parallel)
Operator’s Guide for Rugged-UPS 2500 Series Female Connector Male Connector Secondary Parallel Connect the Female Connector End of the PRIMARY Parallel Cable to the Male Connector End of the • SECONDARY Parallel Cable. NOTE: If more than two units are to be connected in parallel, Female Connector End on first SECONDARY Parallel Cable should be connected to male end of next Secondary Parallel Cable. -
Page 17: Shutdown (Parallel)
Turn ON AC input circuit breaker located in the rear of the SECONDARY device. • Turn ON SECONDARY unit with front panel switch. • Parallel Operation is ONLY possible using Acumentrics supplied control cables. Refer to documentation supplied with cables for Parallel Operation. Remote Operation (ACG9223 Optional Cable) CAUTION: If AC Outputs are NOT connected properly hazardous voltages may exist in the devices. -
Page 18: Parallel Units Operated As Standalone
Parallel Units Operated As Standalone There may be occasions where it is desirable or necessary to operate an Acumentrics ACG2500 Series parallel unit in a situation where it is not part of a parallel configuration, or needs to be isolated for verification. This is possible by using an adapter Acumentrics part number ACG9249. -
Page 19: Reset The Circuit Breaker
Operator’s Guide for Rugged-UPS 2500 Series NOTE: The UPS operates on AC external input power. In case of AC power failure, the DC input is used as backup. If the DC power fails, the internal battery pack is used as backup. The UPS only operates on its internal batteries if AC external power source is unavailable and DC power is unavailable. -
Page 20: Shutdown Procedures
Operator’s Guide for Rugged-UPS 2500 Series Shutdown Procedures Except in an emergency, perform an orderly shutdown of your equipment connected to the UPS AC output before shutting down the UPS. It is especially important to shut down computer equipment first to save whatever work you may have been doing. -
Page 21: 25 Pin Auxiliary Connector
RS232 communication. Acumentrics communications cable, p/n ACG9236, allows you to use the built in UPS monitoring functionality of Windows' operating systems (note that on notebook computers this is not accessible). This Windows UPS monitoring uses our UPS simple signal mode to provide the user notification that AC power has been lost or restored and low battery alert. -
Page 22: Simple Signal Mode
Operator’s Guide for Rugged-UPS 2500 Series SIMPLE SIGNAL MODE SIGNAL DEFINITION Low Battery Warning Goes True if the battery voltage indicates less than 10% hold-up time remaining. Not Utilized AC Power Good Goes True if AC power is viable. UPS Shutdown External Shutdown input;... -
Page 23: Setup
Operator’s Guide for Rugged-UPS 2500 Series Setup Ensure the AC Circuit Breaker, located in the rear of the device, is OFF. • Connect ground wire to ground stud, located in the rear of the unit, and secure with wing nut. -
Page 24: Mib Instance
Operator’s Guide for Rugged-UPS 2500 Series MIB/Instance Variable Type Description Value Access Range upsObjects(1).upsIdent(1) upsIdentManufacturer(1) String The name of the UPS manufacturer. Read upsObjects(1).upsIdent(1) upsIdentModel(2) String The UPS Model designation. Read upsObjects(1).upsIdent(1) UpsIdentUPSSoftware String The UPS firmware/software version(s). Read This variable may or may not have the... - Page 25 Operator’s Guide for Rugged-UPS 2500 Series MIB/Instance Variable Type Description Value Access Range upsObjects(1).upsBattery(2 UpsEstimatedCharge An estimate of the battery charge Read remaining expressed as a percent of full charge. Remaining(4) upsObjects(1).upsBattery(2 upsBatteryVoltage(5) The magnitude of the present battery Read voltage.
- Page 26 Operator’s Guide for Rugged-UPS 2500 Series MIB/Instance Variable Type Description Value Access Range upsObjects(1).upsAlarm(6). upsAlarmDescr(2) A reference to an alarm description See Alarm Read object. The object referenced should not definitions be accessible, but rather be used to provide a unique description of the alarm condition.
- Page 27 Operator’s Guide for Rugged-UPS 2500 Series MIB/Instance Variable Type Description Value Access Range upsObjects(1).upsAlarm(6).upsWellKnownAlarms(3) upsAlarmLowBattery(3) The remaining battery run-time is less Read than or equal to upsConfigLowBattTime. upsObjects(1).upsAlarm(6).upsWellKnownAlarms(3) UpsAlarmDepleted The UPS will be unable to sustain the Read present load when and if the utility power is lost.
-
Page 28: Connector Pin Out Specifications
Operator’s Guide for Rugged-UPS 2500 Series Connector Pin Out Specifications NOTE: Acumentrics does not warranty the ACG2500 Series against damages caused by cables manufactured by any parties other than the Acumentrics Corporation. Signifies Pin Contacts Legend : Signifies Socket Contact AC Input Pin Out Functionality: (NOTE: All units that include “U”... -
Page 29: Ac Input Pin Out Functionality
Operator’s Guide for Rugged-UPS 2500 Series AC Output Pin Out Functionality for 230 VAC devices: (NOTE: All units that include “Ui”, “Uia” or “Ri” “Ria” in the device title) Plug Part Number: Cannon CA02COME22-2SWB Chassis Neutral Viewed on Mating Face of Output Connector Extended Run Battery Input Pin Out Functionality: (NOTE: All units that include “-XR”... -
Page 30: Dc Output Pin Out Functionality
Operator’s Guide for Rugged-UPS 2500 Series DC Output Pin Out Functionality: (NOTE: All units that include “-24” or “-28” in the device title) Plug Part Number: Cannon CA02COME18-10SB No Contact for 250W. “+” Hot “+” for higher wattages No Contact for “-“... -
Page 31: Maintenance And Troubleshooting
All Acumentrics battery packs are shipped fully charged. They should be stored separately from the UPS and used on a FIFO (First In, First Out) basis. All battery packs should be recharged before use if 100% capacity is required. -
Page 32: General Maintenance
Chlorine bleach (30ml/water) • Acumentrics Corporation recommends cleaning the device and cables with a soft damp cloth and the cleaning agents mentioned. Do NOT immerse any part of the device in water. Do not use ketones (MEK, acetone, etc.). Avoid using abrasives on the device. - Page 33 Operator’s Guide for Rugged-UPS 2500 Series Symptom Recommended Action 4. Audible Alarm sounds and Restore AC power to unit and allow the battery to charge for four (4) • one of the battery indicators is hours. illuminated. There is NO AC Input power available and the battery pack module •...
