Summary of Contents for HOBBYMATE D6 Duo Pro
- Page 1 D6 Duo Pro AC/DC Dual Channel Smart Charger Operating Instructions www.hobbymatehobby.com...
- Page 2 D6 Duo Pro AC/DC Dual Channel Smart Charger Thank you for purchasing HOBBYMATE charger. Please read the en�re opera�ng instruc�ons completely and a�en�vely as it contains a wide variety of specific programming and safety informa�on. Please visit：www.hobbymatehobby.com for more details...
-
Page 3: Table Of Contents
Contents Product Overview Specifications 2. Introduction 3. Warnings and Safety Notes 4. Recommended Connected Way 5. Standard Battery Parameters Operation and Setup 1. How to Confirm Charging Current 2. Operative Skills 3. Charger Settings 4. Task Parameters 5. System Parameters 6. -

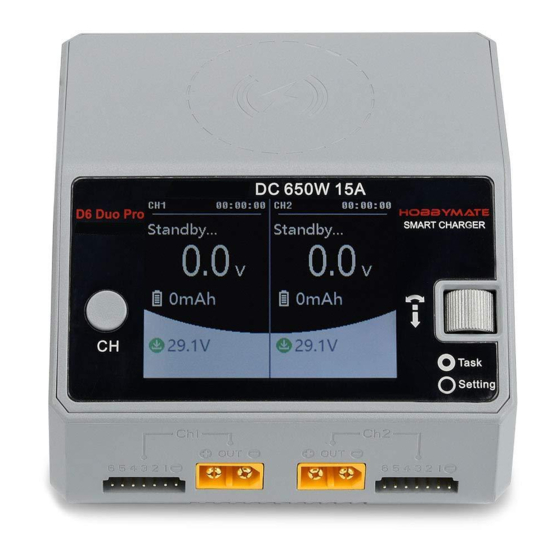

Page 4: Product Overview
Lead Acid(Pb) : 2~24V Eneloop : 1~16S Net Weight 555g Wireless Max 5W output Color white，black，gray Charging Temperature protection，time protection，capacity protection，input reverse Protection protection，Output protection，short circuit protection，output overcurrent Function protection，Output overvoltage protection，overcharge protection D6 Duo Pro AC/DC Dual Channel Smart Charger... -
Page 5: Introduction
7. When charging or discharging is completed ，please press the speed shuttle key to terminate current task，and remove the battery when charger shows the standby screen. D6 Duo Pro AC/DC Dual Channel Smart Charger... -
Page 6: Recommended Connected Way
Be very careful to choose the correct voltage for different types of battery otherwise you may cause damage to the batteries. Incorrect settings could cause the cells to vent, burn or explode leading to injury or loss of property. D6 Duo Pro AC/DC Dual Channel Smart Charger... -
Page 7: Operation And Setup
Long press channel switc, to quick stop current operation or to enter setting menu Channel Speed Switch Shuttle Key for corresponding channel. D6 Duo Pro AC/DC Dual Channel Smart Charger... -
Page 8: Charger Settings
Used for channel 2 data calibration System Self-checking Start charging Self-checking Factory Settings Restore all parameters to factory settings(User calibration data cleanup) System Info Display system information、serial number Back Exit system Settings D6 Duo Pro AC/DC Dual Channel Smart Charger... -
Page 9: Task Parameters
Cut off exceed the setting capacity End Current Cut off less than the ratio between completed current and set up current Trickle Charge ON or OFF Back Save all settings and exit, back to Charger Settings D6 Duo Pro AC/DC Dual Channel Smart Charger... -
Page 10: System Parameters
Customizing device names through shuttle keys Save all setting and exit the system settings menu Back Buzzer volume: the default is OFF, the operation sound would be blocked, but not the sound of error warning. D6 Duo Pro AC/DC Dual Channel Smart Charger... -
Page 11: Task Settings
Select batteries’s strings：1-6S，and the item processes automatic test and needs Cell Count no setting if inserted in balanced interface Select current，charger/storage 0.1~15.0A，discharge 0.1-3.0A，external discharge Current Setting 1-15.0A Start Task Save all changes，start to execute tasks Back Back D6 Duo Pro AC/DC Dual Channel Smart Charger... - Page 12 Operation and Setup Task Settings The working mode of the D6 Duo Pro AC/DC Dual Channel Smart Charger is series charging; you must therefore connect it to the output line of the battery while charging. For a lithium battery, it is highly suggested that the balanced interface should be connected to carry out balanced charging to accurately monitor the voltage of each cell and balance the ones with bad consistency.
- Page 13 D6 Duo Pro AC/DC Dual Channel Smart Charger...
- Page 14 Task Settings Internal Resistance Measurement Function D6 Duo Pro AC/DC Dual Channel Smart Charger is equipped with a function of measuring the cells’ internal resistance, which is only applied when conducting balanced charging. The cell voltage should be measured and calculated within 2 to 3 minutes after the charging task has been initiated.
-
Page 15: Working Parameters Display
The cell voltage and internal resistance can only be displayed in the mode of balance charging (2 minutes). Long press the CH key to stop the current task. D6 Duo Pro AC/DC Dual Channel Smart Charger... - Page 16 (not a prefilled state without any piece of batteries and 3 minutes to reach full charge pressure) Long press the CH key to stop the current task. D6 Duo Pro AC/DC Dual Channel Smart Charger...
- Page 17 The cell voltage and internal resistance can only be displayed in the mode of balance charging. Long press the CH key to stop the current task. D6 Duo Pro AC/DC Dual Channel Smart Charger...
- Page 18 Current 22.7V 00:30:18 Current Operation Time Total Battery Voltage Charged Times Input Voltage 22.7V 62 C Working Input Power Temperature External Discharge Long press the CH key to stop the current task. D6 Duo Pro AC/DC Dual Channel Smart Charger...
- Page 19 The cell voltage and internal resistance can only be displayed in the mode of balance charging. Long press the CH key to stop the current task. D6 Duo Pro AC/DC Dual Channel Smart Charger...
- Page 20 Scroll the shuttle key during operation can switch the display information in the lower half of the screen, which are cell voltage and run data. Long press the CH key to stop the current task. D6 Duo Pro AC/DC Dual Channel Smart Charger...
- Page 21 Output Output 23.4/328W 25.2/3.5W Voltage/power Voltage/power 3.881-3.895V 4.199-4.200V Battery Voltage Battery Voltage Split-Screen Display Short press CH, display the channel you chose, long press the CH key to stop the current task. D6 Duo Pro AC/DC Dual Channel Smart Charger...
-
Page 22: Troubleshoot
Battery with a built-in combination or protection circuit Battery installed in other equipment or connected to other components The rechargeable battery suitable for carrying current of this charger has not been confirmed by the manufacturer D6 Duo Pro AC/DC Dual Channel Smart Charger... -
Page 23: Product Qualification Declaration
Product Qualification Declaration D6 Duo Pro AC/DC Dual Channel Smart Charger conforms to relevant commands in B: 2017, PART15 CLASSB；PART15 CLASSC, FCC Testing Standards Result EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 EN 62311:2008 ETSI EN 301 489-1 V2.2.0(2017-03) ETSI EN 301 489-3 V2.1.1(2017-03) ETSI EN 303 417 V1.1.1(2017-09) This symbol means that you must dispose of electrical from the General household waste when it reaches the end of its useful life. -
Page 24: Warranty And Service
Statement The design of the D6 Duo Pro AC/DC Dual Channel Smart Charger is only applicable to the battery types listed in this manual. HOBBYMATE will not be held responsible for the use of the charger for purposes other than those listed in the manual. - Page 25 Add: Rm 1619 Jiansheng Bldg, #1 Pingji St Website: www.hobbymatehobby.com Nanwan Longgang, Shenzhen, China Tel: +86-755-83220363 E-mail: hobbymatecs@hobbymatehobby.com...
