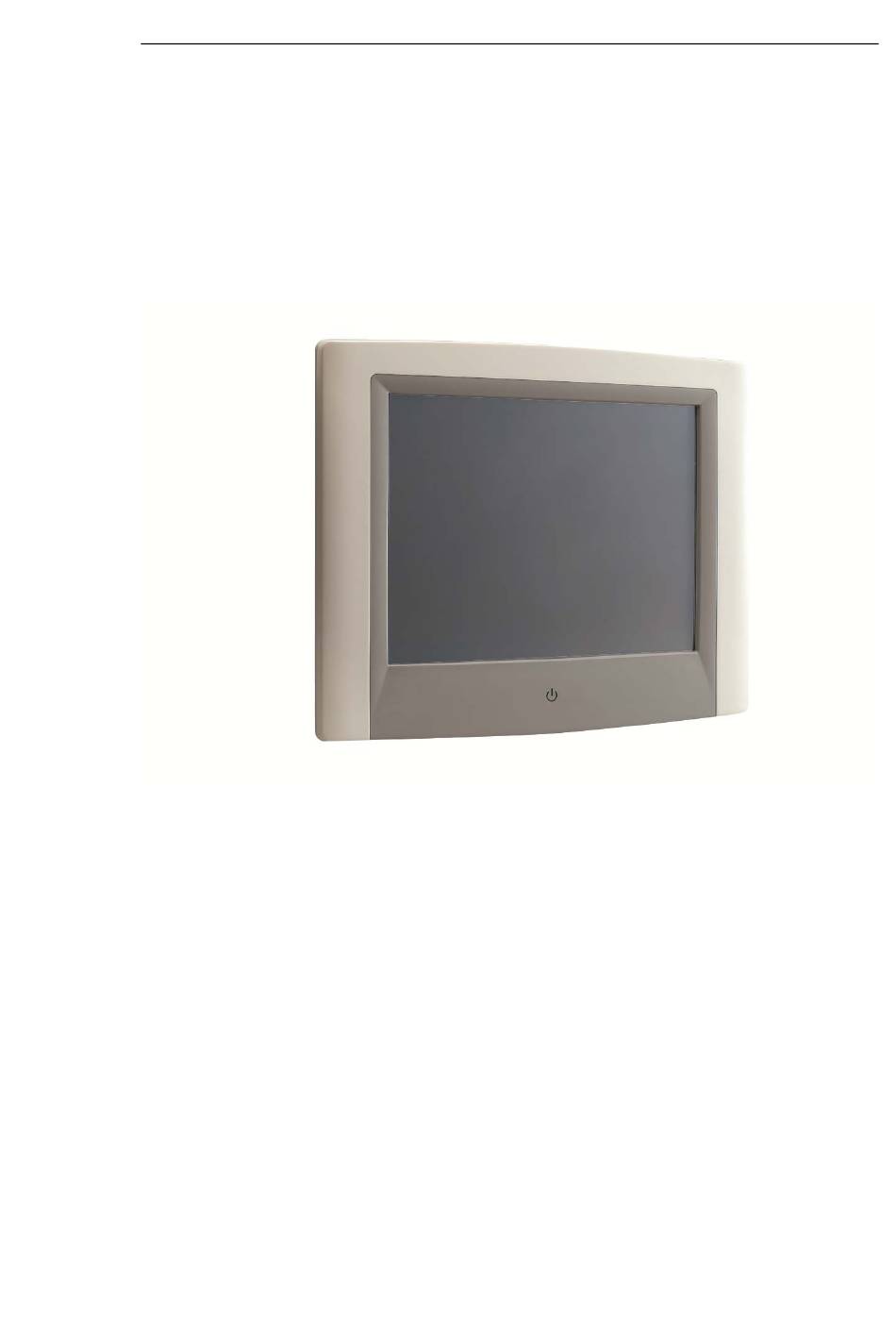

- Page 1 POC127 Point of Care Terminal with Intel® Pineview-M N450 CPU and 12.1” VA LCD (Computer)
-
Page 2: Safety Instructions
Repair of the device may only be carried out by trained service personnel. Advantech recommends that a service contract be obtained with Advantech Service and that all repairs also be carried out by them. Otherwise the correct functioning of the device may be compromised. - Page 3 Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning and keep this equip-ment away from humidity. Caution! To avoid short-circuiting and otherwise damaging the device, do not allow fluids to come in contact with the device.
- Page 4 Caution! When servicing the device, always use replacement parts that are quali- fied to Advantech standards. Advantech Digital Healthcare cannot war- rant or endorse the safe performance of third-party replacement parts for use with our medical device.
- Page 5 Furthermore all configurations shall comply with the system standard IEC 60601-1- 1. Anyone who connects additional equipment to the signal input part or signal output part is configuring a medical system, and is therefore, responsi - ble that the system complies with the requirements of the system standard IEC 60601-1-1.
-
Page 6: Fcc Class B
Disposing of Old Products Within the European Union EU-wide legislation, as implemented in each member state, requires that waste electrical and electronic products carrying the mark shown at left must be disposed of separately from normal household waste. This includes monitors and electrical accessories, such as signal cables or power cords. -
Page 7: List Of Accessories
Otherwise the correct functioning of the device may be compromised. Additional Information and Assistance Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call:... - Page 8 Visit the Advantech websites at www.advantech.com www.advantech.com.tw if you need more information.
-
Page 9: Chapter 1 General Information
POC127 is an user-friendly computer. For system integrators, this highly integrated multimedia system lets you easily build a Point of Care Terminal into your applications. The POC127 makes it an ideal and safe point of care solution for patients and hospital practitioners. -
Page 10: Specifications
Specifications Chipset Intel Pineview-M; Intel ICH8M Intel® Atom™ Processor Processor N450 1.66G Hz Computing System Front Side Bus 667 MHz Memory Up to 2GB DDR2 667 MHz SDRAM Pineview-M INTEL with Extreme Graphics Controller Graphic technology Input Voltage +18 VDC,3.5 A. System input rating AC/DC adapter (Sinpro Model DC Model... - Page 11 Light transmission Controller RS-232 interface (use COM 6) Durability 30 million touches CE,FCC Class B approved/ RF Certification Controller UL60601-1,EN60601-1 approved 0 ~ 40°C (32 ~ 104°F) (Operating) Temperature -20 ~60°C (Storage) -20 ~60°C (Transportation) 10 ~ 90% @ 40°C (non-condensing) Humidity 5 ~90% (non condensing) (Storage) Environment...
- Page 12 Figure 1-1: Dimension...
- Page 13 VESA Mounting: 75x75mm Figure 1-2: VESA Mounting Please use M4x12L (Maxium)screw x4 Cleaning and Disinfecting During normal use of the POC (Point-of-Care Terminal) the device may become dirty and should be regularly cleaned. Steps: 1. Prepare cleaning water 2. Wipe the POC with a clean cloth that has been moistened in the pure water. 3.
- Page 14 or abrasives. Never immerse electrical connectors in water or other liquids.
-
Page 15: Chapter 2 System Setup
Chapter 2 System Setup A Quick Tour of the POC127 Before you start to set up the POC127, take a moment to become familiar with the locations and purposes of the controls, drives, connections and ports, which are illustrated in the figures below. - Page 16 Rear View 2.1.2 When you turn the Point of Care Terminal around and look at its rear cover, the sunken I/O section is at the bottom of the panel PC, as shown in Figure 2-2 and zoom in Figure 2-3. (The I/O section includes various I/O ports, including serial ports, VGA port, the Ethernet port, USB ports and so on.) Figure 2-2: Rear view of the Point of Care Terminal...
- Page 17 2.1.3 Bottom view (12) (13) (10) (11) Figure 2-4: Bottom view (9) DC-in Jack (10) Power switch (11) Equipotential terminal (12) Add on card bracket (13) Speaker x2 NOTE: Equipotential terminal need link to hospital ground/earth system before system boot to protect operator and system...
-
Page 18: Installation Procedures
Installation Procedures Connecting the Power Cord 2.2.1 The POC127 could only be powered by a DC power adapter (SINPRO Model no.HPU100- 107). Be sure to always handle the power cords by holding the plug ends only. Follow these procedures in order: 1. -
Page 19: Connecting The Ground Pin
Equipotential Terminal Figure 2-8: POC127 Equipotential Terminal Pin Step 2. Prepare the Grounding cable and the other terminal link to hospital ground/earth system. Figure 2-9: Grounding cable with connector Step 3. Grounding cable plug with POC127 Equipotential Terminal (See Figure 2-8) -
Page 20: Switch On The Power
Switch on the power 2.2.2 Switch on the reset switch on the front cover. (See Figure 2-4.) Figure 2-11: Press the power button to boot system... -
Page 21: Running The Bios Setup Program
Running the BIOS Setup Program Your POC127 is likely to have been properly set up and configured by your dealer prior to delivery. You may still find it necessary to use the BIOS (Basic Input-Output System) setup program to change system configuration information, such as the current date and time or your type of hard drive. -
Page 22: Installing System Software
Installing System Software Recent releases of operating systems from major vendors include setup programs which load automatically and guide you through hard disk preparation and operating system installation. The guidelines below will help you determine the steps necessary to install your operating system on the panel PC hard drive. Note! Some distributors and system integrators may have already pre-installed system software prior to shipment of your panel PC. -
Page 23: Installing The Drivers
Guidance and Manufacturer’s Declaration – Electromagnetic Emissions The model POC127 is intended for use in an electromagnetic environment as specified below. The customer or the user of the POC127 should assure that it is used in such an environment. Electromagnetic Environmen-... - Page 24 RF communications equipment (transmitters) and the model POC127 as recommended below, according to the maximum output power of the communications equipment. Rated Maximum Output Power of Separation Distance According to Frequency of Transmitter...
- Page 25 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity POC127 is intended for use in the electromagnetic environment specified below. The customer or the user of the model POC127 should assure that it is used in such an environment. IEC 60601 Test...
- Page 26 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The model POC127 is intended for use in the electromagnetic environment specified below. The customer or the user of the model POC127 should assure that it is used in such an environment. Immunity...
-
Page 27: Protecting Your Optical Drive
Thermal The vent hole of the POC127 rear cover functions as a cooling air flow inlet and outlet. These air inlets and outlets transfer heat from inside the computer to the cooler air outside. Do not block these holes/vents with any soft material. - Page 28 an outlet because the outlet is not grounded, contact a licensed electrician to replace the outlet with a properly grounded outlet. Do not defeat the purpose of the grounding plug. Warning! Never push objects of any kind into this product through the openings in the case. Doing so may be dangerous and result in fire or a dangerous electric shock.
-
Page 29: Install Vesa Mounting
Installation instructions follow: First attach wall-mounting to the heat-sink of the POC127, securing it in place with the four Phillips-head screws provided. Mount the unit on the wall, stand or other flat surface. - Page 30 Page 30 of 30 Drawings and specifications herein are property of Advantech and shall not be reproduced or copied or used without prior written permission.
