- Page 1 Summer User Manual (V1.0 2015.02)
-
Page 2: Disclaims And Warnings
You agree to use this product only for purposes that are proper and in accordance with local regulations, terms and any applicable polices and guidelines. No modification or amending to the Summer is allowed. Please make sure the camera mounted on the gimbal firm enough before installing the battery. -
Page 3: Table Of Contents
Contents Disclaims and warnings Using battery and charging Contents Gimbal Description Box list Assemble stand Install handle with the gimbal Camera mount Battery installation Gimbal balance Pitch axis balance Pitch vertical balance Advanced pitch adjustment Roll axis balance Pan axis balance Joystick usage Maintenance... -
Page 4: Gimbal Description

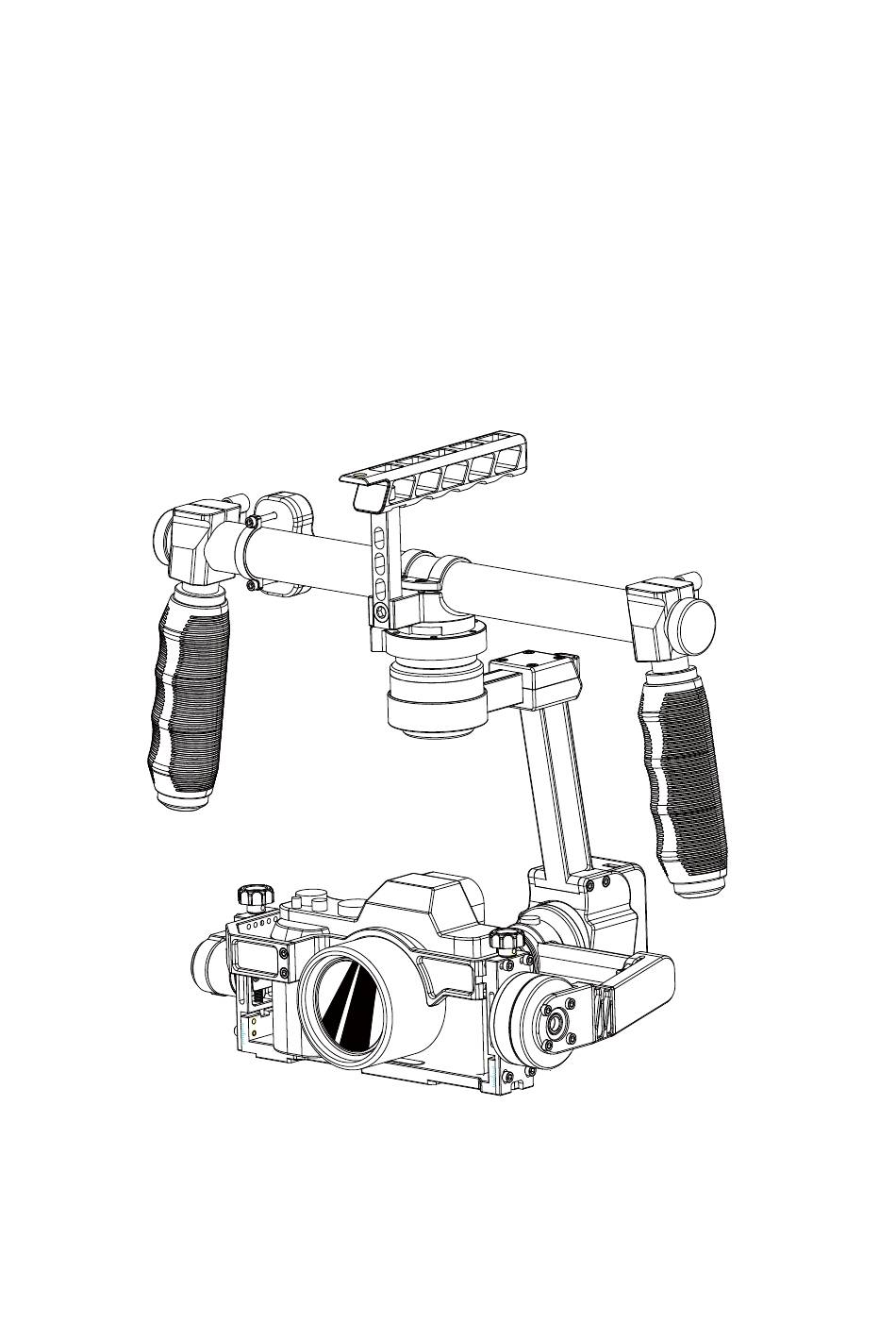

Gimbal description The Summer comes with dedicated camera fixing board, easy to install and take apart the camera, as well as balance the camera. By testing, the Summer can be used with the following cameras. Any similar in size and weight camera may also work. -
Page 5: Box List
Hexagonal spanner x 1 ( for stand installation) Battery charger x 1 ( for battery 18650) Screw M8x20mm (for stand mounting) Screw nut M8x20mm ( for stand mounting) Summer only work with battery 18650 size within 67mm, please pay more attention while purchasing... -
Page 6: Assemble Stand
Assembled Install handle with the gimbal 1. Summer handle is placed separately before leaves factory, please install the handle onto the gimbal with screw as shown. 2. Please be sured that the pan axis motor can rotate 360° without obstruction after installation. -
Page 7: Camera Mount
Negative stopper Positive stopper Switch 1. Summer just work with 18650 battery. 2. Please charge the battery first before use the gimbal. 3. Please keep the power off while install the battery. 4. If the battery do not install correctly, poor connection or power off may occur. -
Page 8: Gimbal Balance
Gimbal balance It is essential to balance the Summer for the best performance. Especially for some extreme sports or accelerations, accurate balance can improve the shoots quality, as well as the battery life. The balanc- er will help a lot to adjust the pitch, roll, pan axis while power on. Balance finished and without power, all 3 axes almost keep in horizontal level, will not deflect one side seriously. -
Page 9: Roll Axis Balance
Step 3: Roll axis balance 1) Loosen the 2 screws as picture shows to allow camera move left and right; 2) Adjust properly to make the camera remain level when remove your hands; 3) Lock the screw to finish balancing roll axis; After that, the camera will stay in that position while rotating the camera to any roll angles. -
Page 10: Joystick Usage
4) Press 4 times, yaw and roll switch mode, sound Di means mode switch successfully. Joystick Direction slide button LED indicator Working mode button Right Left Down Maintenance While using Summer, please keep it away from sand, dust and water. Please clean Summer with the soft dry cloth after using.
