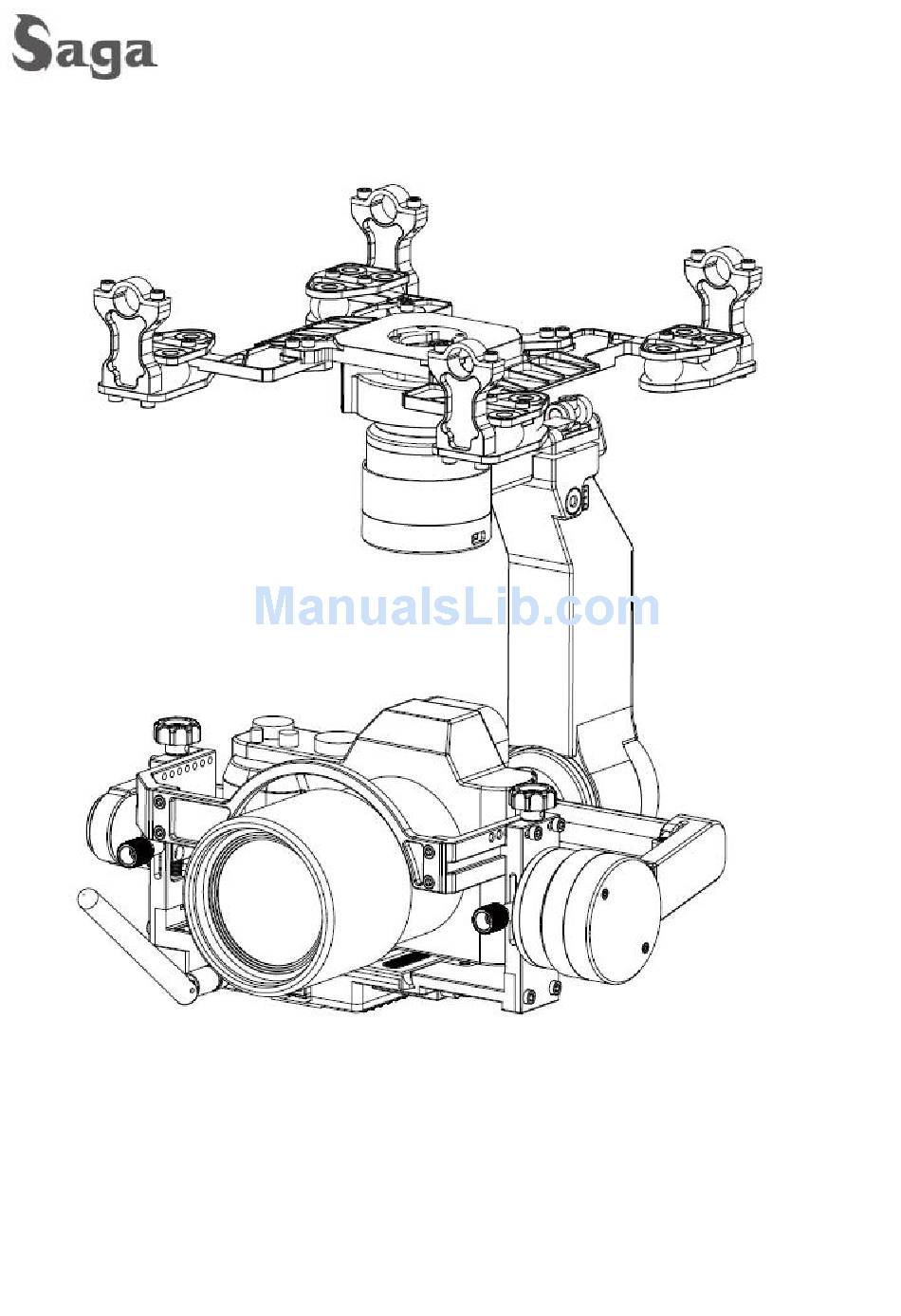

- Page 1 User Manual (V1.0)
- Page 2 Disclaimers and warnings Thanks for purchasing this product. Please read this manual and disclaimer carefully Please read this instruction manual carefully before using the product. By using this product, you hereby agree to this disclaimer and signify that you have read it in full. You agree that you are responsible for your own conduct and any content created while using this product, and for any consequence thereof.
- Page 3 Box list Gimbal x1 set Hanging mount 1/4" Camera screw x1 Others Screw bag x 1 bag lnstallation Please keep the power off while mounting the camera. Hanging mount installation The hanging mount is packed separately before leaving the factory, please install as following a.
- Page 4 Camera installation and gimbal balance 1. Camera installation a. Mount the camera on the quick release plate with1/4" camera screw. Adjust the camera forwards or backwards with quick release plate as per the gravity; b. lnsert the fixed block to fixed board and lock with adjustment screw; c.
- Page 5 2) Roll balance After finished pitch balance, the camera will stay in the position you turn. a. Loosen the two screws as picture to allow the camera move to left or right b. Adjust to make the camera can remain level after removed your hands; c.
- Page 6 Connection How to switch frequency range(FR) and channel Channel selection key is frequency range(FR) selection key, short press one time number 1-8 alter circularly means channel switch in same frequency range. Long press 3 seconds 4 letters A\B\E\F alter circularly means frequency range switch.
- Page 7 Gimbal and landing gear installation Mount the gimbal on the multicopter as below, move forwards or backwards to balance the gimbal...
