ACU-RITE 00782 Instruction Manual

Table of Contents

Download this manual

Specification:

Indoor and outdoor temperatures displayed on the main LCD readout

Temperature measurement range:

Indoor main unit: 32F – 122F (0 ºC ~ +50 ºC)

Wireless remote unit: -4 F – 130F (-20 ºC ~ +55 ºC)

Temperature resolution: 0.1 degree

Transmission range : up to 100ft. in an open area

Instruction manual:

ATTENTION:

For the fist installation, insert the batteries in the display unit and then in the remote sensor

Display unit

Insert 2 fresh "AAA" alkaline batteries into the display unit. (Batteries not included)

Remote sensor

Insert 2 fresh "AAA" alkaline batteries into the remote sensor. (Batteries not included)

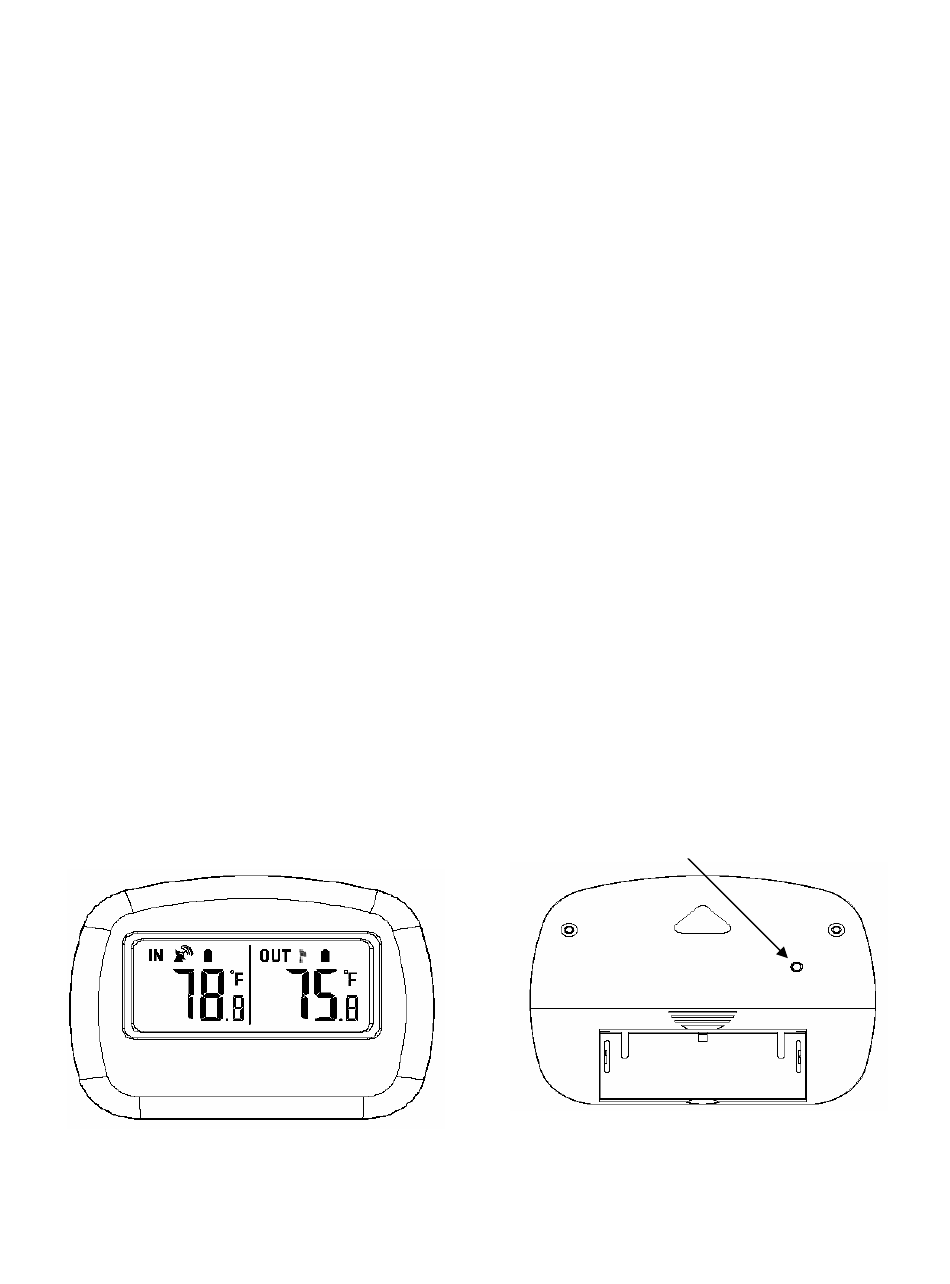

Indoor Display unit

When the batteries are put into the display unit, it will display the indoor temperature .The outdoor

reading "----"

Remote sensor

When the batteries are placed into the remote sensor, it will signal the temperature to the display unit.

The display unit will then be able to display the outdoor temperature. You may need to push the Reset

button on the back of the display unit.

Instruction Manual

Reset button

Table of Contents

Do you have a question about the 00782 and is the answer not in the manual?

Page 1 Instruction Manual Specification: Indoor and outdoor temperatures displayed on the main LCD readout Temperature measurement range: Indoor main unit: 32F – 122F (0 ºC ~ +50 ºC) Wireless remote unit: -4 F – 130F (-20 ºC ~ +55 ºC) Temperature resolution: 0.1 degree Transmission range : up to 100ft.
Page 2 Reset button Battery Icon Description: The battery icon will display when the batteries are full. The battery icon will display and the temperature readings will be blinking when the batteries are low capacity. When to replace the Batteries: For the remote sensor: When the battery icon of the outdoor window displays continuously the remote sensor batteries are low and need to be replaced.
Page 3 Troubleshooting: Using the Reset button on the Indoor unit (receiver): In some unusual occasions, the Indoor unit may be affected by electrical interference and respond abnormally. In such conditions, press the RESET button on the Indoor Display unit to resume normal operation.
Page 4 —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Trade Name: Model Number: 00782 Chaney Instrument Co. 965 S. Wells Street, Lake Geneva, WI 53147,...
