Page 1: Foreword

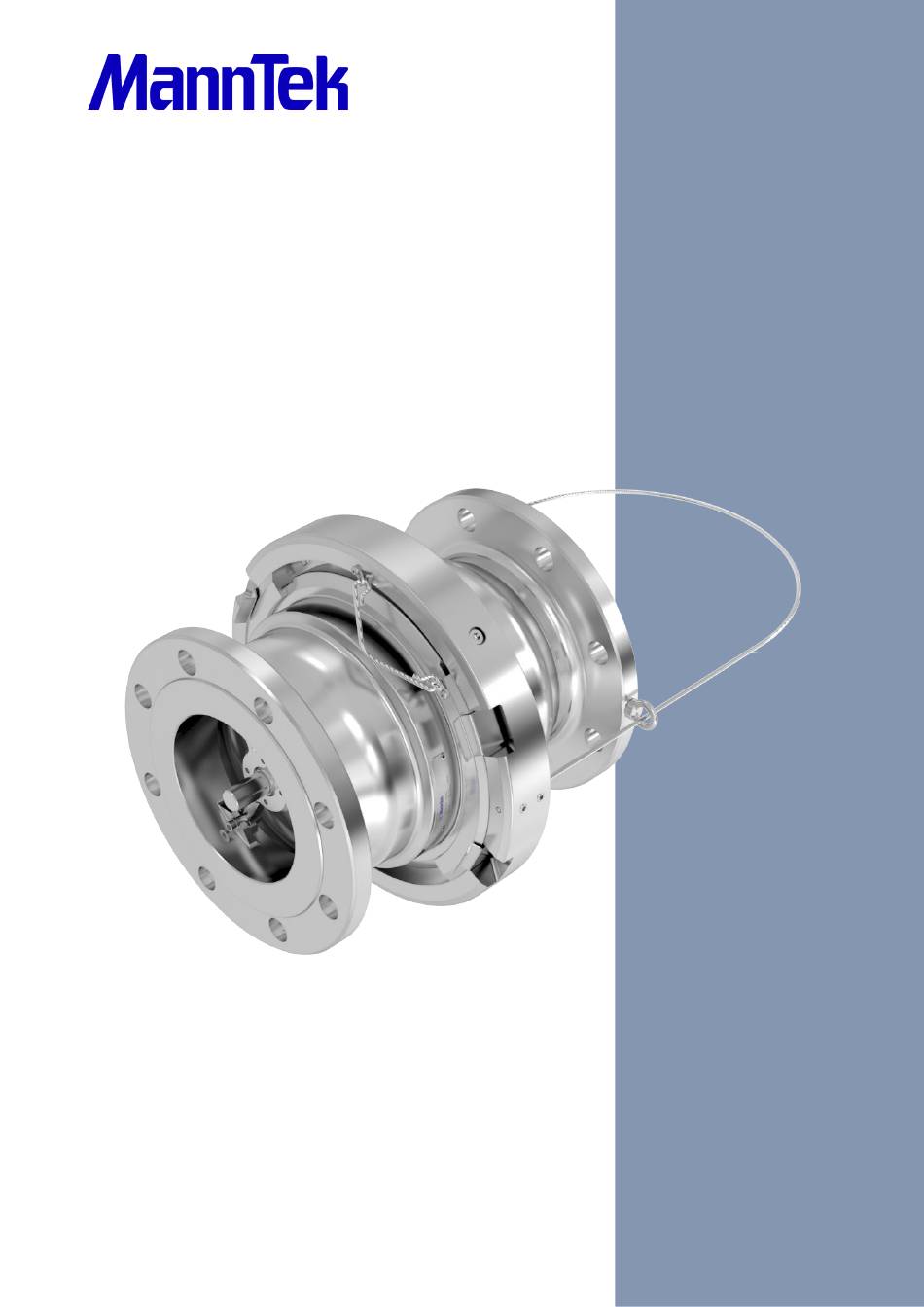

SBC Operating Manual Cable Release manntek.se... -
Page 2: Summary Of Revisions
Potentially Explosion Atmosphere Directive 2014/34/EU of 29 March 2014 • Do not make modifications that are not authorized by the manufacturer. • Read and respect all warnings and instructions provided to you. Use only original MannTek spare parts for maintenance. • UMMARY OF REVISIONS... -
Page 3: Table Of Contents
Range of applications ........................4 Product specification........................5 Technical data ..........................5 Triggering forces ..........................6 Identification plate e.g. for SBC-C 3”-3”BSP ................7 Scope of delivery ..........................7 General Safety Rules ........................... 8 Safety Instructions ........................... 8 Transport and storage .......................... 9 Delivery Check .......................... -
Page 4: Introduction
NTRODUCTION NTENDED USE This guide for safety breakaway couplings SBC is intended for operators and planners of tankers and tank systems as well as for hose assembly workshops and hose assembly workshop maintenance engineers. The safety breakaway coupling acts as a safety component in the supply line of mobile refuelling systems, preventing damage to the environment whenever the supply pipe bursts during filling or emptying due to a change in location of the tank. -
Page 5: Product Specification
Operating Manual RODUCT SPECIFICATION Product name: Safety Breakaway Coupling Sizes: 1”, 2“, 2½“, 3“, 4”, 5” and 6” Thread Connection: BSP-Thread ISO 228, NPT-Thread ANSI B1.20.1 BSPT-Thread EN 10226, ACME, S60x6 Flange Connection: Flange EN 1092, ANSI B16.5, DIN 28459, T.T.M.A., BS 10 Other Connection: MIL-C-10387J, DIN 11850, DIN 11864, DIN 32676, ISO 2852 Material (casting):... -
Page 6: Triggering Forces
Operating Manual Table 2: Materials Component Material no. Standard Operating temperature 1.4404 EN 10270-1.4401+AT -54°C to 250° C 1.4409 EN 10213-1.4409+AT CW614N EN 12164-CW614N -54°C to 200° C Housing Check CB491K EN 1982.CB491K-GS valve 5083 EN 755- AW-5083 6262 EN 755- AW 6262-T6 -54°C to 100°... -
Page 7: Identification Plate E.g. For Sbc-C 3"-3"Bsp
Operating Manual DENTIFICATION PLATE SBC-C 3”-3”BSP Article no: O414D4401A* Working Pressure PS: 25 bar Seal: FPM (Viton)K Mtrl: Stainless steel Size: DN80 – 3“ *For key of article no. please ask for explanation list. COPE OF DELIVERY 1 pcs O414D1101A... -
Page 8: General Safety Rules
AFETY ULES Before you install any MannTek equipment it is essential to check that the material and performance specifications are acceptable for your specific application. The pressure ratings and primary materials of the construction are clearly indicated on the identification plate of each MannTek product. A drawing showing the materials of construction relating to each individual component is available upon request. -
Page 9: Transport And Storage
Operating Manual RANSPORT AND STORAGE The product may only be transported or stored when absolutely clean. Suitable sealing must be used for the openings to ensure no damage occurs to the surfaces/sealed areas. The seals may only be removed by trained personnel. -
Page 10: Sample Of Certificate Of Decontamination
Operating Manual AMPLE OF ERTIFICATE OF ECONTAMINATION Make a copy of this page, fill in the required information and send it back together with the goods. REPAIR SERVICE To comply with Health & Safety Regulations, all returned valves must be accompanied by a Certificate of Cleanliness and a Data Sheet for the last product carried (even the cleaner). -
Page 11: Installation
The correct installation of all MannTek products is essential to ensure safe and satisfactory operation. Checks should be made to ensure that the fitting of MannTek products does not interfere with the correct operation of affiliated equipment (i.e. isolation valve, excess flow valves, etc). Before securing the flange or thread connection to mating equipment (i.e. - Page 12 Operating Manual The MannTek product can be installed directly in the product line and is ready for use after removing the transport protection. The installation is as follows: Remove the packaging and the tread/flange protection Check the coupling for damages before mounting.
- Page 13 The start-up may take place only when the MannTek product has been mounted as instructed and the necessary function tests and leak tests have been conducted by the approved authorities (see chapter 7).
-
Page 14: Operation
Operating Manual PERATION ENERAL NOTES Operators are obliged to provide qualified and trained personnel familiar with the handling of supply pipes, safety couplings, any fluid being pumped as well as its danger potential. Such staff must also be familiar with the applicable safety regulations and the regulations of the employer’s liability association. -
Page 15: Maintenance And Repair
In case the tank wagon rolls away or someone forgot to disconnect the supply line before the truck drives off, the SBC is activated as follows: Before the supply line is stressed by undue external forces the support ring is pulled out by a pull cable running parallel to the supply line which releases the pressure clamps. -
Page 16: Maintenance And Service Instruction
In case of failure or break away order the SBC-SEAL SET and carry out repairs according to the assembly instructions in chapter 6.4. Tool for SBC A special tool for the piston guide of the SBC can be ordered from MannTek. O-ring tools Special tools to remove the O-rings can be ordered from MannTek. -
Page 17: Assembly
O-ring, which must be pressed into the groove on the piston. Make sure to use recommended suitable grease. For mounting the new O-ring use MannTek spare parts only. MannTek tools are helpful for a quick and safe fix of the O-ring. 2018-10-09 17 of 20... - Page 18 Fixate piston The piston is sticking out on the other side, therefore place the coupling half on distances for easier assemble. Mount the piston guide with MannTek special made tool, makes work easier and will increase safety. Leakage test Test both coupling halves separately according to 6.5 before continuing with next step of assembling.
-
Page 19: Pressure And Tightness Test
Operating Manual Ready to use After coupling is completely reassembled and all tests are done the coupling is ready for use. Loctite® is registered trademark of Henkel. RESSURE AND TIGHTNESS TEST After each service a pressure and tightness test of each coupling is mandatory. Test each half separately before you connect both halves with the breaking pins. -
Page 20: Applicable Documents
MannTeknik AB Strandvägen 16, S-54231 Mariestad, Sweden Phone +46 501 393200 • Fax +46 501 393209 www.manntek.se • sales@manntek.se MannTeknik AB is a certified ISO9001-company. 2018-10-09 20 of 20...
