SBC Service instruction
Cable release – 6"
manntek.se

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Manntek SBC

Summary of Contents for Manntek SBC

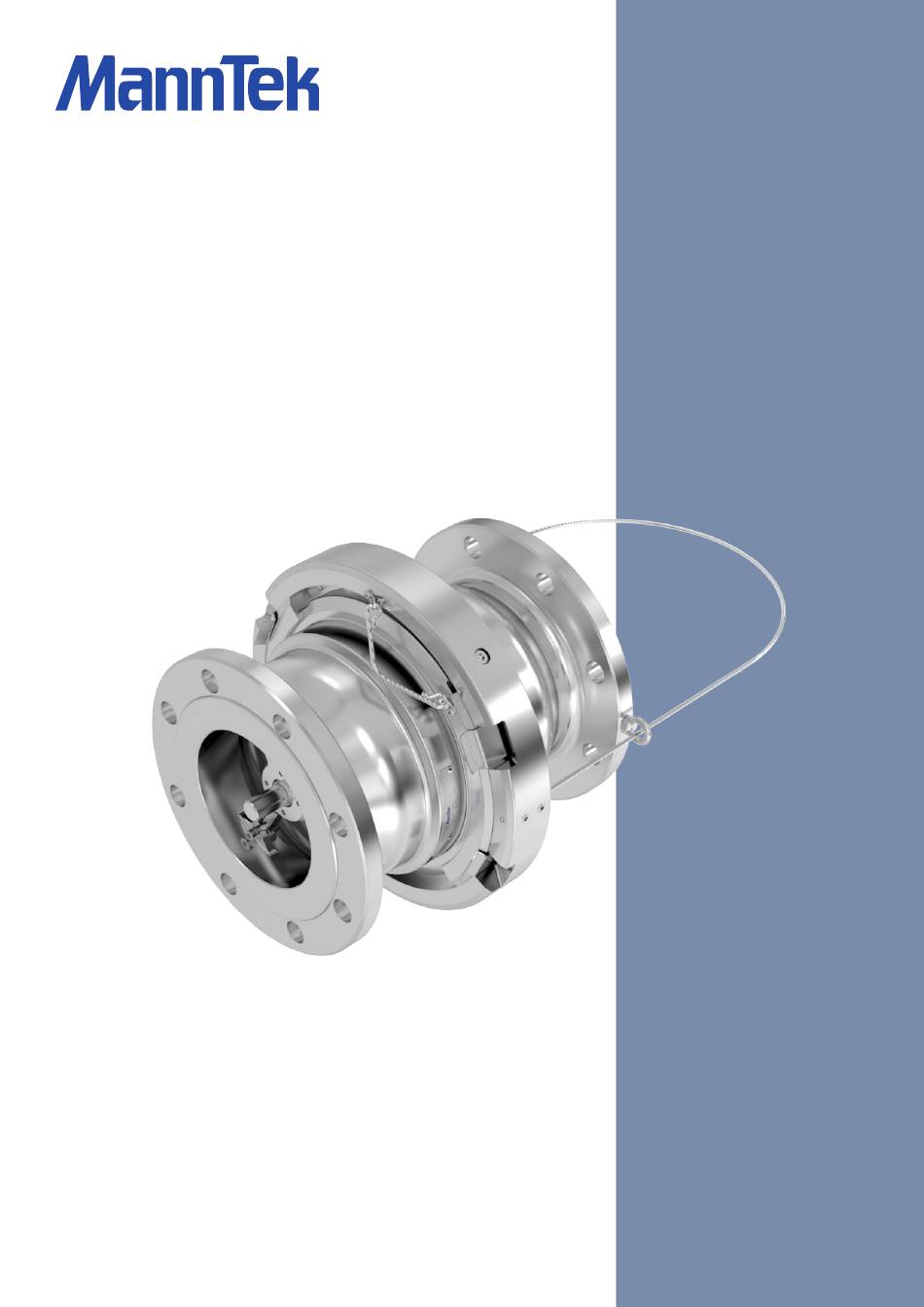

  • Page 1 SBC Service instruction Cable release – 6" manntek.se...
  • Page 2 , SS ATERIAL ARTS NEEDED FOR SERVICE O-ring kit (see p.3) YPE OF CONNECTION Threaded and Flanged couplings have the same service instruction. ERFORM A SERVICE If leaking According to application service plan, (see regular service p.3) Change of media LEASE NOTE Make sure that you are using the right type of O-rings and seals for the media you are using.
  • Page 3 AINTENANCE AND SERVICE INSTRUCTION Always depressurise the system and rinse off the parts before beginning any maintenance work. Use protective goggles. Do not handle O-ring seals if the material appears charred, gummy or sticky. Use tweezers and wear neoprene or PVC gloves. Do not touch adjacent parts with unprotected hands.
  • Page 4 FTER RELEASE When the coupling should go into service there is a danger that the fluid will spurt out. Special protective measures such as personal protective equipment must therefore be adopted. Always ensure the system is cleaned in a proper manner. After cleaning, remove any residue from the cleaning agent.
  • Page 5 The O-ring must be pressed into the groove on the piston. Use only grease which is suitable for O-ring material. For mounting the new O-ring use MannTek spare parts only. Special tools are helpful for a good fit of the O-ring.
  • Page 6 OCKING THE SPINDLE STEERING Fit the screws into the given holes in the body and fixate the spindle steering by mounting the three locking screws. Use Loctite® 243 for locking the screws. UTER BODY RING Replace the O-ring (pos.15) on the body with a new greased O-ring.
  • Page 7 ROCEDURE After each service a pressure and tightness test of each coupling is mandatory. Test each half separately before you connect both halves with the breaking pins. The following test parameters are in accordance with EN12266, EN14432 and ISO5208: Shell tightness test (water): 1,5 x Working Pressure (see 1.2) stop time 1 min.
